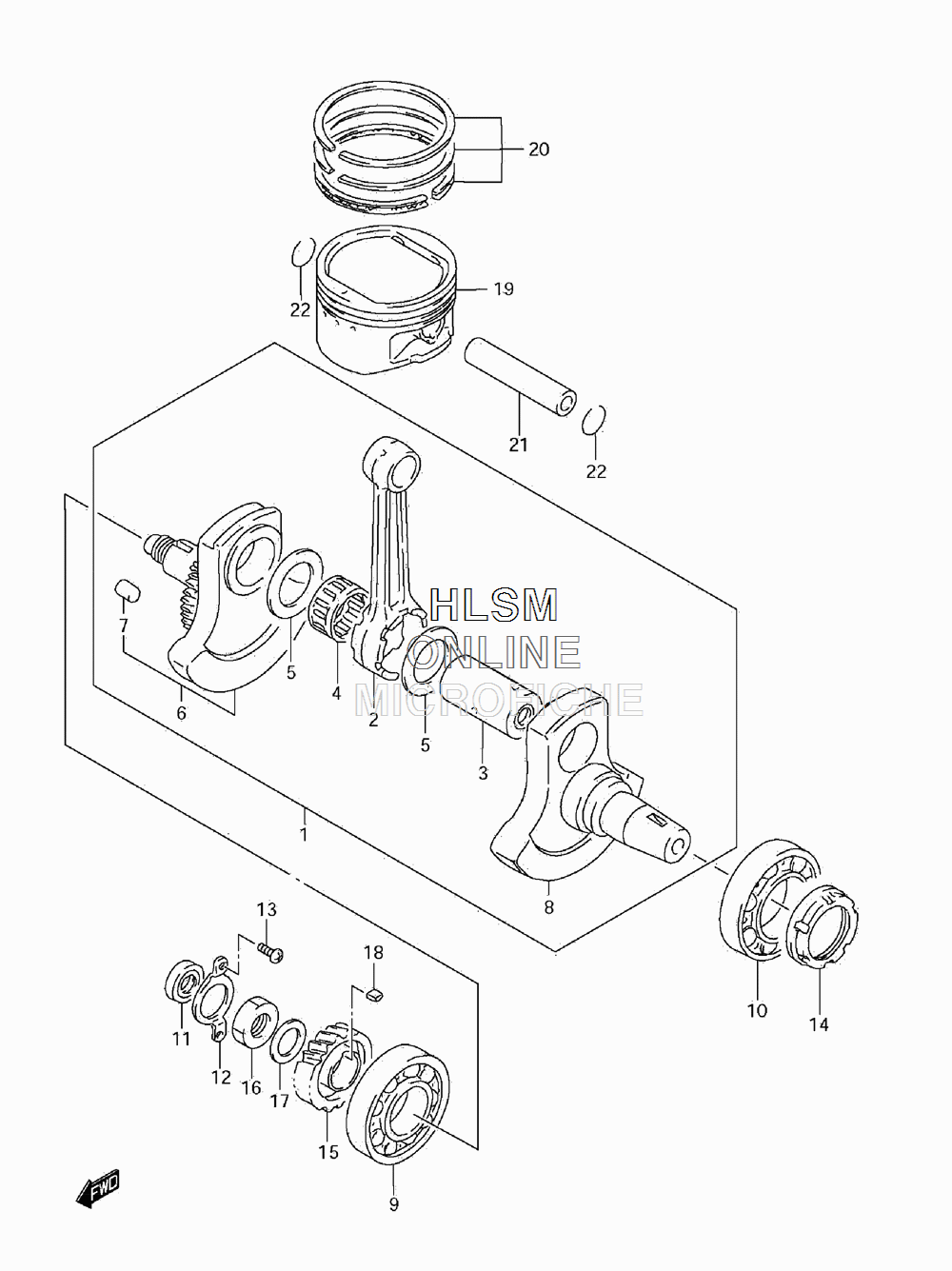

CRANKSHAFT W/ PISTON для Suzuki DR-650SEL1 - 2011 года выпуска
-
№АртикулНазвание
-
112000-32820 CRANKSHAFT SET (INCL. 2-8)CRANKSHAFT SET (INCL. 2-8)
-
212161-32E00 ROD, CONNECTINGROD, CONNECTING
-
312211-32E00 PIN, CRANKPIN, CRANK
-
409263-37004-0C0 BEARING (37X47X25)BEARING (37X47X25)
-
509160-37006 WASHER (37X55X1)WASHER (37X55X1)
-
612221-32810 CRANKSHAFT SET, RIGHT HAND (INC 7)CRANKSHAFT SET, RIGHT HAND (INC 7)
-
709261-08006 PINPIN
-
812261-32E00 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
909262-40008 BEARING (40X80X18) (RIGHT)BEARING (40X80X18) (RIGHT)
-
1009262-45011 BEARING (45X85X19) (LEFT)BEARING (45X85X19) (LEFT)
-
1109282-16002 OIL SEAL (16X30X6) (RIGHT)OIL SEAL (16X30X6) (RIGHT)
-
1212548-37400 PLATE, RIGHT HANDPLATE, RIGHT HAND
-
1302112-0508B SCREWSCREW
-
1412664-04F00 NUTNUT
-
1521111-32E00 GEAR, PRIMARY DRIVE NT:28GEAR, PRIMARY DRIVE NT:28
-
1609140-20013 NUTNUT
-
1709164-20003 WASHERWASHER
-
1809420-05007 KEYKEY
-
1912111-32E00-0F0 PISTONPISTON
-
2012140-32E10 RING SET, PISTONRING SET, PISTON
-
2112151-14A01 PIN, PISTONPIN, PISTON
-
2209381-23003 CIRCLIPCIRCLIP
