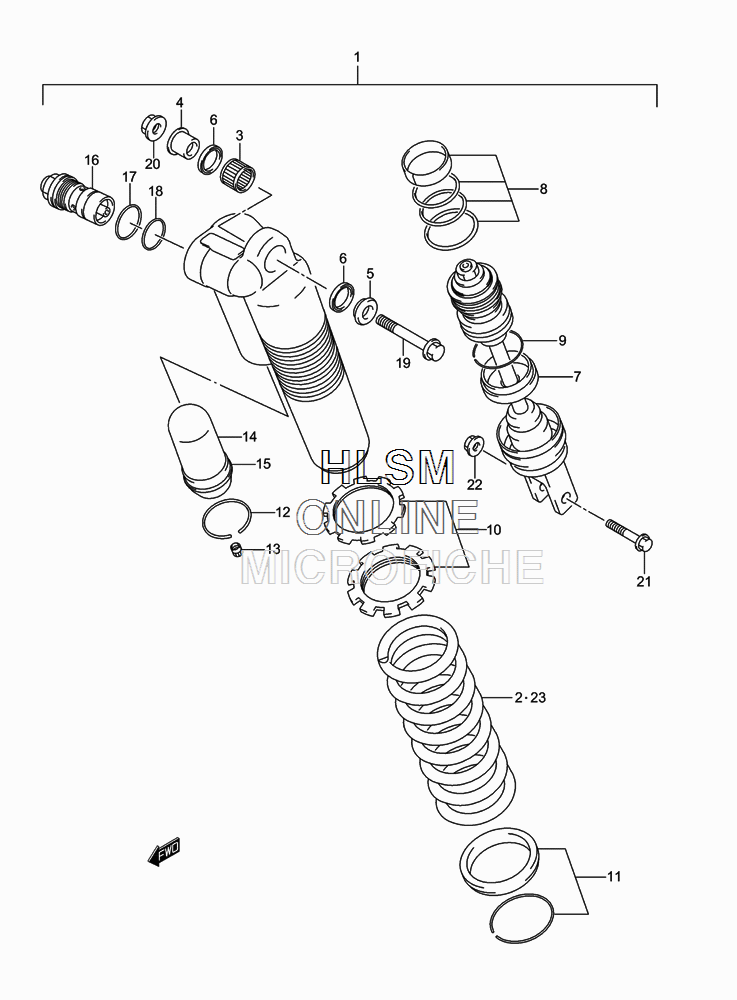

SUSPENSION - SHOCKS REAR для Suzuki RM-250K5 - 2005 года выпуска`
-
№АртикулНазвание
-
162100-37FE0-163 ABSORBER ASSY, RR SHOCK (YELLOW) (INCL. 2-18)ABSORBER ASSY, RR SHOCK (YELLOW) (INCL. 2-18)
-
162100-37FD0-163 ABSORBER ASSY, RR SHOCK (YELLOW) (INCL. 2-18) (CANADA ONLY)ABSORBER ASSY, RR SHOCK (YELLOW) (INCL. 2-18) (CANADA ONLY)
-
262211-37FF0 SPRING (K=5.3)SPRING (K=5.3)
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462684-36F00 SPACER, BEARING RIGHT HANDSPACER, BEARING RIGHT HAND
-
562685-36F00 SPACER, BEARING LEFT HANDSPACER, BEARING LEFT HAND
-
609284-16005 SEAL, DUST RIGHT HANDSEAL, DUST RIGHT HAND
-
762120-37FC0 ROD, PISTONROD, PISTON
-
862150-36EB0 O RING SETO RING SET
-
962279-36E80 RING, STOPPERRING, STOPPER
-
1062190-36F00 ADJUSTER SETADJUSTER SET
-
1162220-36F00 SPRING SEAT SETSPRING SEAT SET
-
1262278-36E00 RING, STOPPERRING, STOPPER
-
1351294-20400 CAPCAP
-
1462273-36F00 BLADDERBLADDER
-
1562275-36E00 CAP, CHAMBERCAP, CHAMBER
-
1662130-37FC0 BOLT, PLUGBOLT, PLUG
-
1762131-28E00 O RINGO RING
-
1851174-43D00 O RINGO RING
-
1909103-10360 BOLTBOLT
-
2009159-10058 NUTNUT
-
2162221-37F30 BOLTBOLT
-
2209159-10067 NUTNUT
-
2362211-37FA0 SPRING (SOFT,K=4.8) (OPT)SPRING (SOFT,K=4.8) (OPT)
-
2362211-37FE0 SPRING (SOFT,K=5.1) (OPT)SPRING (SOFT,K=5.1) (OPT)
-
2362211-37FG0 SPRING (HARD,K=5.5) (OPT)SPRING (HARD,K=5.5) (OPT)
-
2362211-37FD0 SPRING (HARD,K=5.6) (OPT)SPRING (HARD,K=5.6) (OPT)
