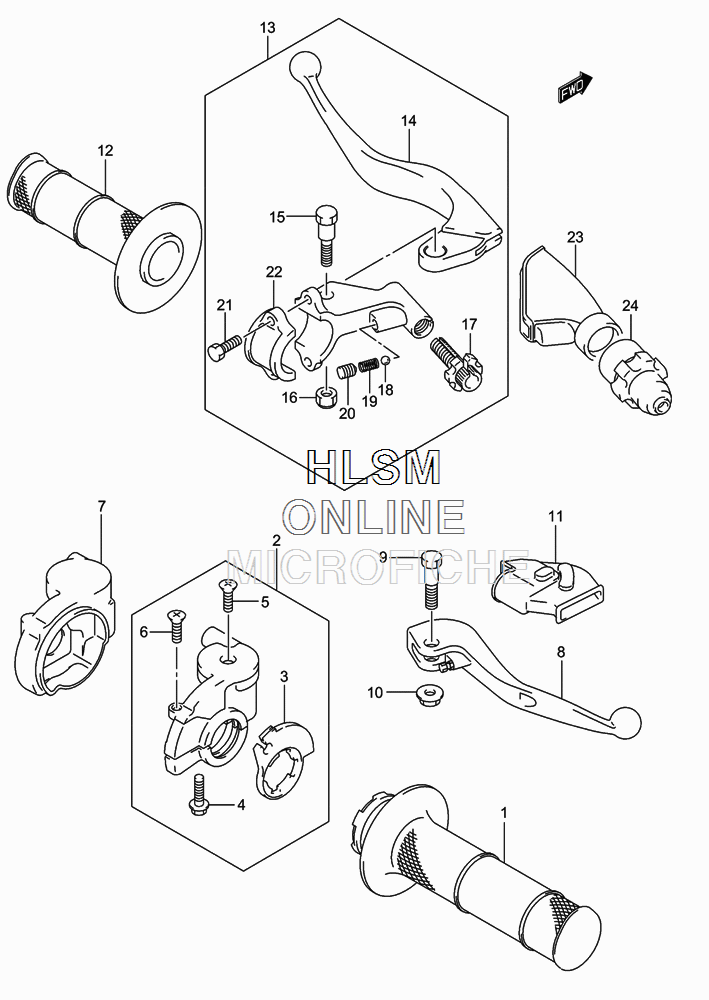

HANDLEBAR - LEVERS для Suzuki RM-250K5 - 2005 года выпуска`
-
№АртикулНазвание
-
157110-36E01 GRIP, THROTTLEGRIP, THROTTLE
-
257100-28E01 CASE ASSY, THROTTLE (INCL. 3-6)CASE ASSY, THROTTLE (INCL. 3-6)
-
357114-28E00 ROTORROTOR
-
401547-06253 BOLTBOLT
-
502122-04103 SCREWSCREW
-
602122-04163 SCREWSCREW
-
757129-28E01 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
857310-37F00 LEVER, BRAKELEVER, BRAKE
-
957431-14500 BOLTBOLT
-
1008316-10063 NUTNUT
-
1157343-37F00 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
1257211-36E01 GRIP, LEFT HANDGRIP, LEFT HAND
-
1357500-37F11 LEVER ASSY, CLUTCH (INCL. 14-22)LEVER ASSY, CLUTCH (INCL. 14-22)
-
1457621-28C40 LEVER, CLUTCHLEVER, CLUTCH
-
1557431-45C01 BOLTBOLT
-
1608319-21068 NUTNUT
-
1757441-37F00 ADJUSTER, CABLEADJUSTER, CABLE
-
1806111-06003 BALLBALL
-
1909440-04003 SPRINGSPRING
-
2009134-06009 BOLTBOLT
-
2109103-06234 BOLTBOLT
-
2257512-37F00 BRACKET, HOLDERBRACKET, HOLDER
-
2357341-37F00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
-
2457342-37F00 COVER, ADJUSTERCOVER, ADJUSTER
