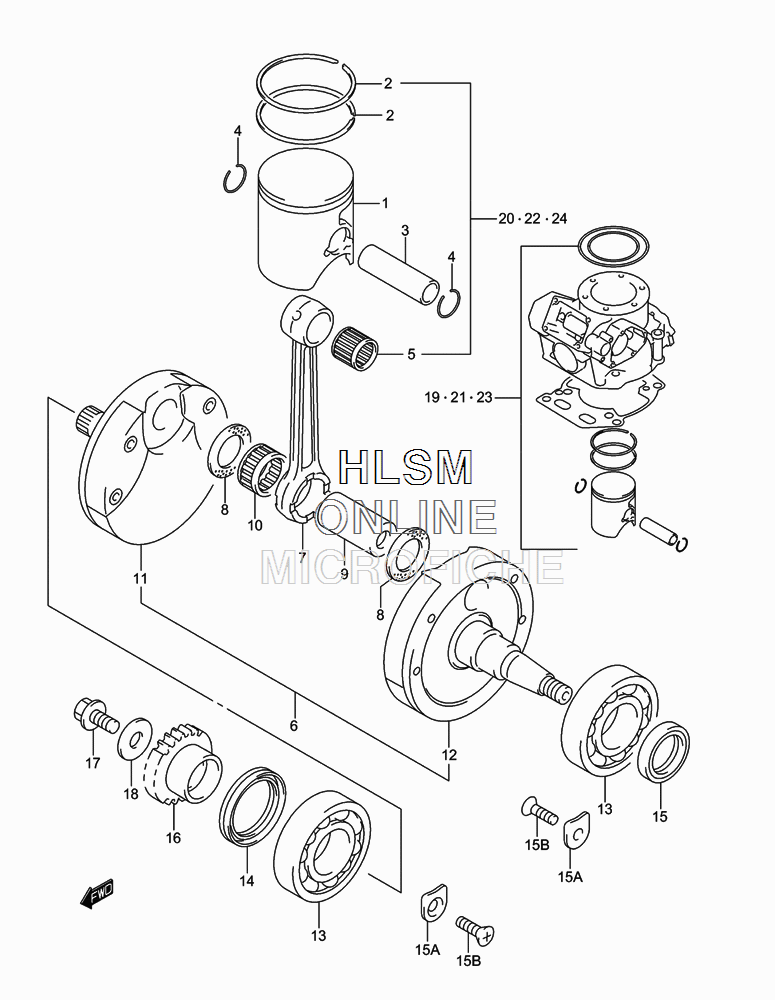

CRANKSHAFT W/ PISTON для Suzuki RM-250K5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    12110-37F30-0F0 PISTON
    PISTON
  • 2
    12141-37F00 RING, PISTON
    RING, PISTON
  • 3
    12151-28C00 PIN, PISTON
    PIN, PISTON
  • 4
    09381-18002 CIRCLIP
    CIRCLIP
  • 5
    09263-18031 BEARING
    BEARING
  • 6
    12200-37F40 CRANKSHAFT ASSY (INCL. 7-12)
    CRANKSHAFT ASSY (INCL. 7-12)
  • 7
    12161-37F20 ROD, CONNECTING
    ROD, CONNECTING
  • 8
    09160-24033 WASHER
    WASHER
  • 9
    12210-37F20 PIN, CRANK
    PIN, CRANK
  • 10
    09263-24026 BEARING, CRANK PIN
    BEARING, CRANK PIN
  • 11
    12220-37F40 CRANKSHAFT, RIGHT HAND
    CRANKSHAFT, RIGHT HAND
  • 12
    12260-37F40 CRANKSHAFT, LEFT HAND
    CRANKSHAFT, LEFT HAND
  • 13
    09262-28044 BEARING, CRANKSHAFT
    BEARING, CRANKSHAFT
  • 14
    09283-28025 OIL SEAL, CRANKSHAFT RIGHT HAND
    OIL SEAL, CRANKSHAFT RIGHT HAND
  • 15
    09283-25099 OIL SEAL, CRANKSHAFT LEFT HAND
    OIL SEAL, CRANKSHAFT LEFT HAND
  • 15A
    24741-37F00 RETAINER, CRANKSHAFT BEARING
    RETAINER, CRANKSHAFT BEARING
  • 15B
    02122-06123 SCREW
    SCREW
  • 16
    21111-37F20 GEAR, PRIMARY DRIVE (NT:21)
    GEAR, PRIMARY DRIVE (NT:21)
  • 17
    09103-10339 BOLT, PRIMARY DRIVE GEAR
    BOLT, PRIMARY DRIVE GEAR
  • 18
    09164-11004 WASHER
    WASHER
  • 19
    12102-37820 TOP END KIT, ENGINE (NOT SHOWN)
    TOP END KIT, ENGINE (NOT SHOWN)
  • 19
    11147-37F00 O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
    O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
  • 19
    11148-37F00 O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
    O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
  • 19
    11241-37F20 GASKET, CYLINDER (NOT SHOWN)
    GASKET, CYLINDER (NOT SHOWN)
  • 19
    12110-37F20-0F0 PISTON (NOT SHOWN)
    PISTON (NOT SHOWN)
  • 19
    12141-37E02 RING, PISTON (NOT SHOWN)
    RING, PISTON (NOT SHOWN)
  • 19
    09381-18002 CIRCLIP (NOT SHOWN)
    CIRCLIP (NOT SHOWN)
  • 20
    12110-37812 PISTON KIT (CANADA ONLY) (NOT SHOWN)
    PISTON KIT (CANADA ONLY) (NOT SHOWN)
  • 20
    12110-37F20-0F0 PISTON (NOT SHOWN)
    PISTON (NOT SHOWN)
  • 20
    12141-37E02 RING, PISTON (NOT SHOWN)
    RING, PISTON (NOT SHOWN)
  • 20
    12151-37F00 PIN, PISTON (NOT SHOWN)
    PIN, PISTON (NOT SHOWN)
  • 20
    09263-18031 BEARING (NOT SHOWN)
    BEARING (NOT SHOWN)
  • 20
    09381-18002 CIRCLIP (NOT SHOWN)
    CIRCLIP (NOT SHOWN)
  • 21
    12102-37830 TOP END KIT, ENGINE (US ONLY) (NOT SHOWN)
    TOP END KIT, ENGINE (US ONLY) (NOT SHOWN)
  • 21
    11147-37F00 O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
    O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
  • 21
    11148-37F00 O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
    O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
  • 21
    11241-37F20 GASKET, CYLINDER (NOT SHOWN)
    GASKET, CYLINDER (NOT SHOWN)
  • 21
    12110-37F20-0F0 PISTON (NOT SHOWN)
    PISTON (NOT SHOWN)
  • 21
    12141-37F00 RING, PISTON (NOT SHOWN)
    RING, PISTON (NOT SHOWN)
  • 21
    09381-18002 CIRCLIP (NOT SHOWN)
    CIRCLIP (NOT SHOWN)
  • 22
    12110-37820 PISTON KIT (CANADA ONLY) (NOT SHOWN)
    PISTON KIT (CANADA ONLY) (NOT SHOWN)
  • 22
    12110-37F20-0F0 PISTON (NOT SHOWN)
    PISTON (NOT SHOWN)
  • 22
    12141-37F00 RING, PISTON (NOT SHOWN)
    RING, PISTON (NOT SHOWN)
  • 22
    12151-37F00 PIN, PISTON (NOT SHOWN)
    PIN, PISTON (NOT SHOWN)
  • 22
    09263-18031 BEARING (NOT SHOWN)
    BEARING (NOT SHOWN)
  • 22
    09381-18002 CIRCLIP (NOT SHOWN)
    CIRCLIP (NOT SHOWN)
  • 23
    12102-37840 TOP END KIT, ENGINE (US ONLY) (NOT SHOWN)
    TOP END KIT, ENGINE (US ONLY) (NOT SHOWN)
  • 23
    11147-37F00 O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
    O RING, CYLINDER HEAD NO.1 (NOT SHOWN)
  • 23
    11148-37F00 O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
    O RING, CYLINDER HEAD NO.2 (NOT SHOWN)
  • 23
    11241-37F20 GASKET, CYLINDER (NOT SHOWN)
    GASKET, CYLINDER (NOT SHOWN)
  • 23
    12110-37F30-0F0 PISTON (NOT SHOWN)
    PISTON (NOT SHOWN)
  • 23
    12141-37F00 RING, PISTON (NOT SHOWN)
    RING, PISTON (NOT SHOWN)
  • 23
    09381-18002 CIRCLIP (NOT SHOWN)
    CIRCLIP (NOT SHOWN)
  • 24
    12110-37830 PISTON KIT (CANADA ONLY) (NOT SHOWN)
    PISTON KIT (CANADA ONLY) (NOT SHOWN)
  • 24
    12110-37F30-0F0 PISTON (NOT SHOWN)
    PISTON (NOT SHOWN)
  • 24
    12141-37F00 RING, PISTON (NOT SHOWN)
    RING, PISTON (NOT SHOWN)
  • 24
    12151-28C00 PIN, PISTON (NOT SHOWN)
    PIN, PISTON (NOT SHOWN)
  • 24
    09263-18031 BEARING, PISTON PIN (NOT SHOWN)
    BEARING, PISTON PIN (NOT SHOWN)
  • 24
    09381-18002 CIRCLIP (NOT SHOWN)
    CIRCLIP (NOT SHOWN)
