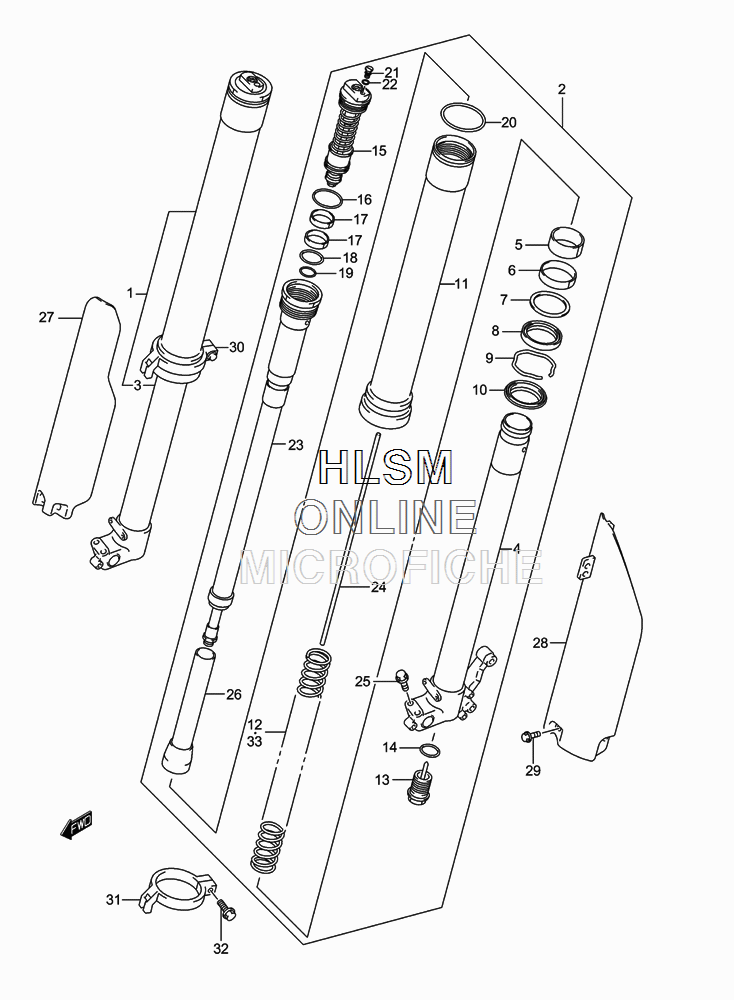

SUSPENSION - FRONT FORK для Suzuki RM-250K5 - 2005 года выпуска

№

Артикул

Название
1

51103-37F90 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 3-26)

DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 3-26)
2

51104-37F90 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 3-26)

DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 3-26)
3

51110-37F80 TUBE, INNER RIGHT HAND

TUBE, INNER RIGHT HAND
4

51120-37F80 TUBE, INNER LEFT HAND

TUBE, INNER LEFT HAND
5

51121-36F00 BUSH, GUIDE

BUSH, GUIDE
6

51167-36F00 BUSH, GUIDE

BUSH, GUIDE
7

51158-36F00 SPACER, SEAL

SPACER, SEAL
8

51153-37F80 SEAL, OIL

SEAL, OIL
9

51156-27C40 RING, OIL SEAL STOPPER

RING, OIL SEAL STOPPER
10

51173-37F80 SEAL, DUST

SEAL, DUST
11

51130-37F70 TUBE, OUTER

TUBE, OUTER
12

51171-37FC0 SPRING, FRONT (K=0.44)

SPRING, FRONT (K=0.44)
13

51170-37F80 BOLT, CENTER

BOLT, CENTER
14

51177-36E20 O RING

O RING
15

51351-37F90 BOLT, FORK

BOLT, FORK
16

51117-37F80 O RING

O RING
17

51123-28E30 BUSH, FORK BOLT SLIDE

BUSH, FORK BOLT SLIDE
18

51174-36E40 O RING

O RING
19

51175-37F80 O RING

O RING
20

51118-37F80 O RING

O RING
21

51357-36F20 BOLT, PLUG

BOLT, PLUG
22

51358-28E30 O RING

O RING
23

51190-37F80 ROD, DAMPER

ROD, DAMPER
24

51191-36F40 ROD, PUSH

ROD, PUSH
25

51328-37F80 BOLT

BOLT
26

51198-37F80 COLLAR, SPRING

COLLAR, SPRING
27

51501-37F60 PROTECTOR, RIGHT HAND

PROTECTOR, RIGHT HAND
28

51511-37F60 PROTECTOR, LEFT HAND

PROTECTOR, LEFT HAND
29

09103-06256 BOLT

BOLT
30

51220-36E61 GUIDE, PROTECTOR RIGHT HAND

GUIDE, PROTECTOR RIGHT HAND
31

51210-36E61 GUIDE, PROTECTOR LEFT HAND

GUIDE, PROTECTOR LEFT HAND
32

01547-06207 BOLT

BOLT
33

51171-37FE0 SPRING, FRONT (HARD K=0.46) (OPT)

SPRING, FRONT (HARD K=0.46) (OPT)
33

51171-37FD0 SPRING, FRONT (SOFT K=0.42) (OPT)

SPRING, FRONT (SOFT K=0.42) (OPT)
