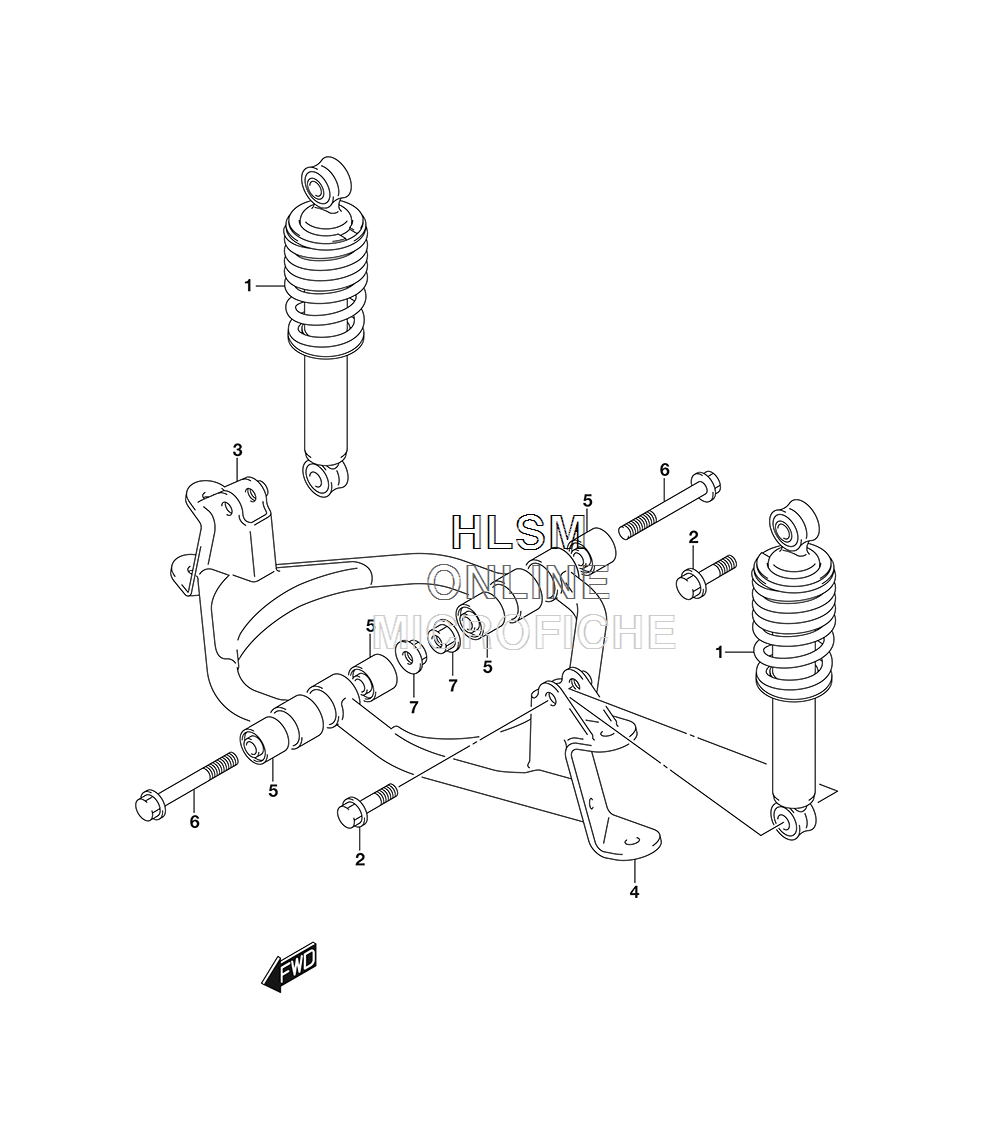

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
152100-43G10-YKS ABSORBER ASSY, FRONT (YKS - RED)ABSORBER ASSY, FRONT (YKS - RED)
-
209103-10019 BOLT, ABSORBER (10X37)BOLT, ABSORBER (10X37)
-
352410-43F00-019 ARM, SUSPENSION (RH) (019 - BLACK)ARM, SUSPENSION (RH) (019 - BLACK)
-
452420-43F00-019 ARM, SUSPENSION (LH) (019 - BLACK)ARM, SUSPENSION (LH) (019 - BLACK)
-
509319-10049 BUSH, ARM (10X28.1X28)BUSH, ARM (10X28.1X28)
-
609103-10173 BOLT, SUSPENSION ARM (10X80)BOLT, SUSPENSION ARM (10X80)
