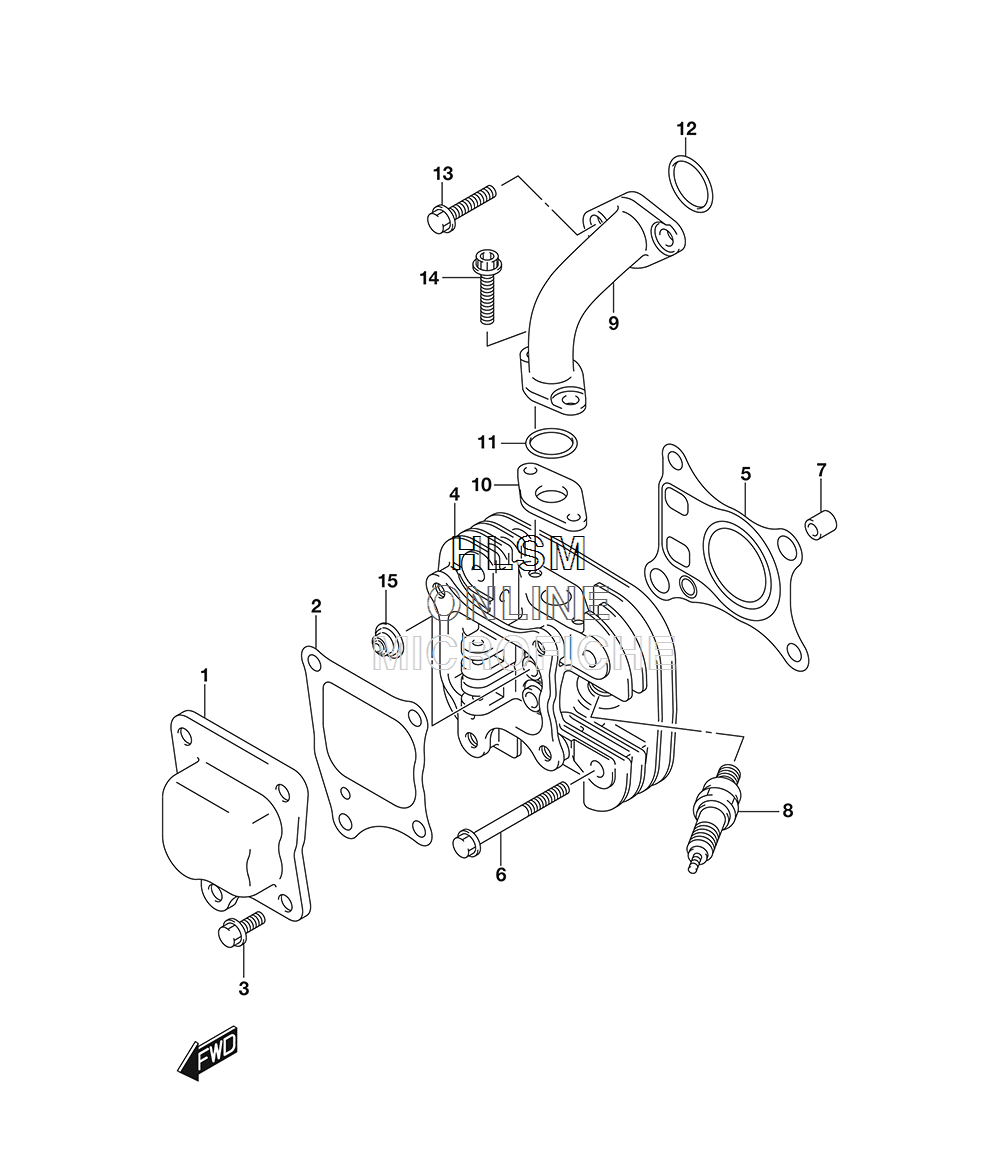

CYLINDER для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска`
-
№АртикулНазвание
-
111171-22G00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
211173-22G00 GASKET, CYL HEAD COVERGASKET, CYL HEAD COVER
-
309103-06172 BOLT, (6X12)BOLT, (6X12)
-
411110-22G00 HEAD, CYLINDERHEAD, CYLINDER
-
511141-22G10 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
609103-06101 BOLT, (6X50)BOLT, (6X50)
-
704211-09109 PINPIN
-
8-109482-00406 PLUG, SPARK (CR6HSA) (NGK)PLUG, SPARK (CR6HSA) (NGK)
-
8-209482-00407 PLUG, SPARK (U20SR-U) (DENSO)PLUG, SPARK (U20SR-U) (DENSO)
-
913111-43G00 PIPE, INTAKEPIPE, INTAKE
-
1013117-43G00 INSULATOR, INTAKE PIPEINSULATOR, INTAKE PIPE
-
1109280-15006 O RING (D:1.9 ID:14.5)O RING (D:1.9 ID:14.5)
-
1209280-21010 O RING ( D:1.9 ID:21.8)O RING ( D:1.9 ID:21.8)
-
1301550-0620B BOLT, REARBOLT, REAR
-
1407120-0620B BOLT, FRONTBOLT, FRONT
