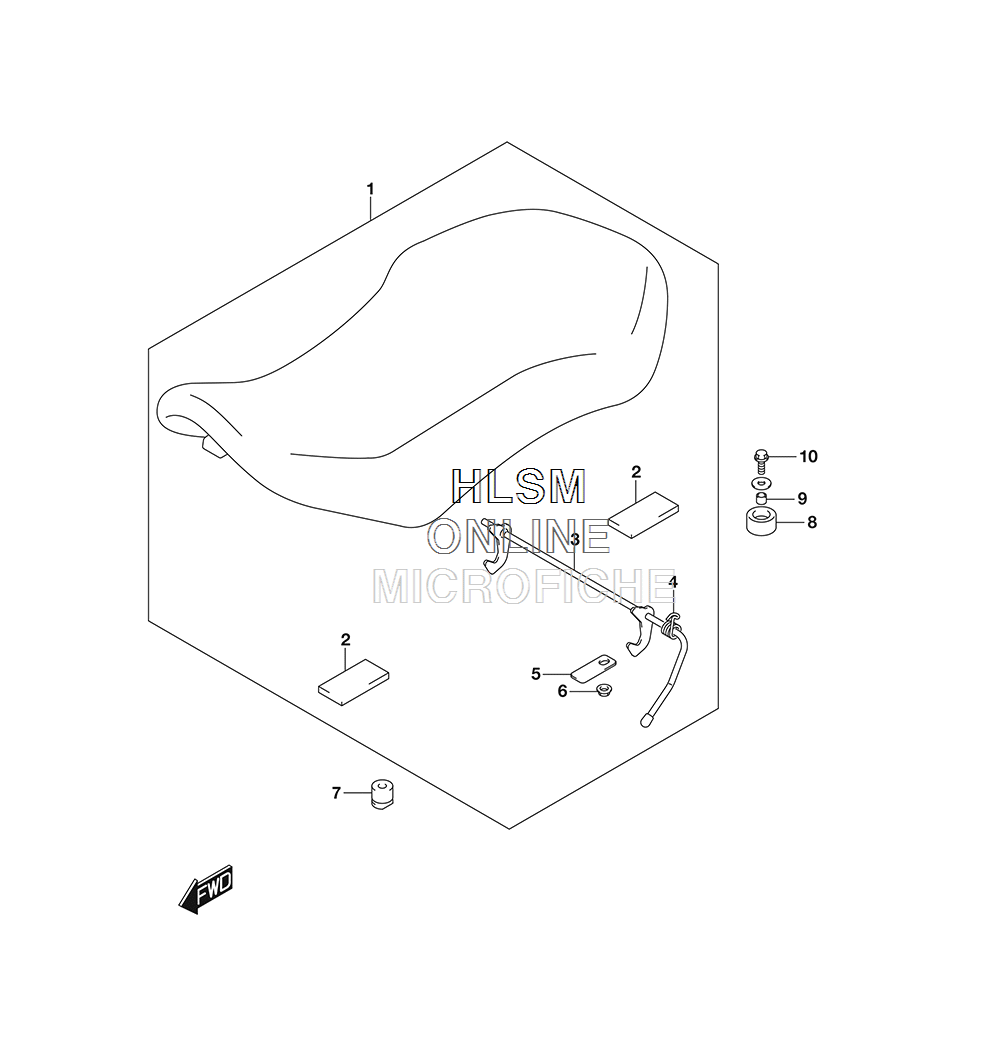

SEAT (EXCEPT CALIF.) для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
145100-43G00-6BY SEAT ASSY (6BY - BLACK)SEAT ASSY (6BY - BLACK)
-
245146-43G00 ...CUSHION...CUSHION
-
345210-43G00 ...CLAMP, SEAT LOCK...CLAMP, SEAT LOCK
-
445135-43F00 ...SPRING, SEAT LOCK...SPRING, SEAT LOCK
-
545222-43G00 ...PLATE, SEAT LOCK (RH)...PLATE, SEAT LOCK (RH)
-
608316-1006B ...NUT...NUT
-
745141-43G00 CUSHION, SEAT MOUNT FRONTCUSHION, SEAT MOUNT FRONT
-
845141-09F00 CUSHION, SEAT MOUNT REARCUSHION, SEAT MOUNT REAR
-
909180-06261 SPACERSPACER
