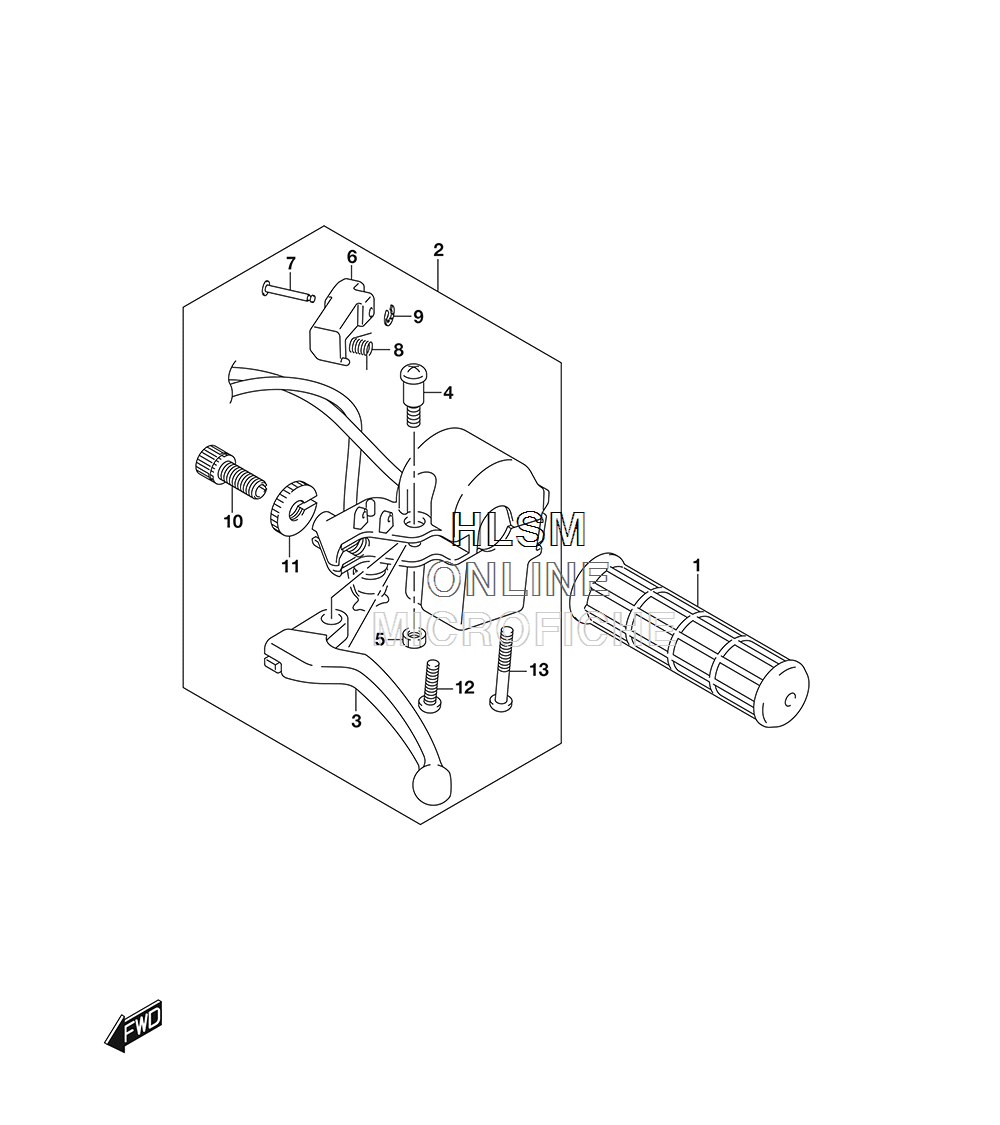

HANDLEBAR - LEVERS / SWITCHES (LEFT) для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
157211-04600 GRIPGRIP
-
257500-43G10 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
357421-43G00 ...LEVER...LEVER
-
457431-43G00 ...SCREW...SCREW
-
508319-2105B ...NUT...NUT
-
657791-43G00 ...LOCK PLATE...LOCK PLATE
-
757781-43G00 ...PIN...PIN
-
857134-43G00 ...SPRING...SPRING
-
957432-43G00 ...E RING...E RING
-
1057441-43G00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1157442-45C00 ...NUT, LOCK...NUT, LOCK
-
1202112-0520B ...SCREW...SCREW
