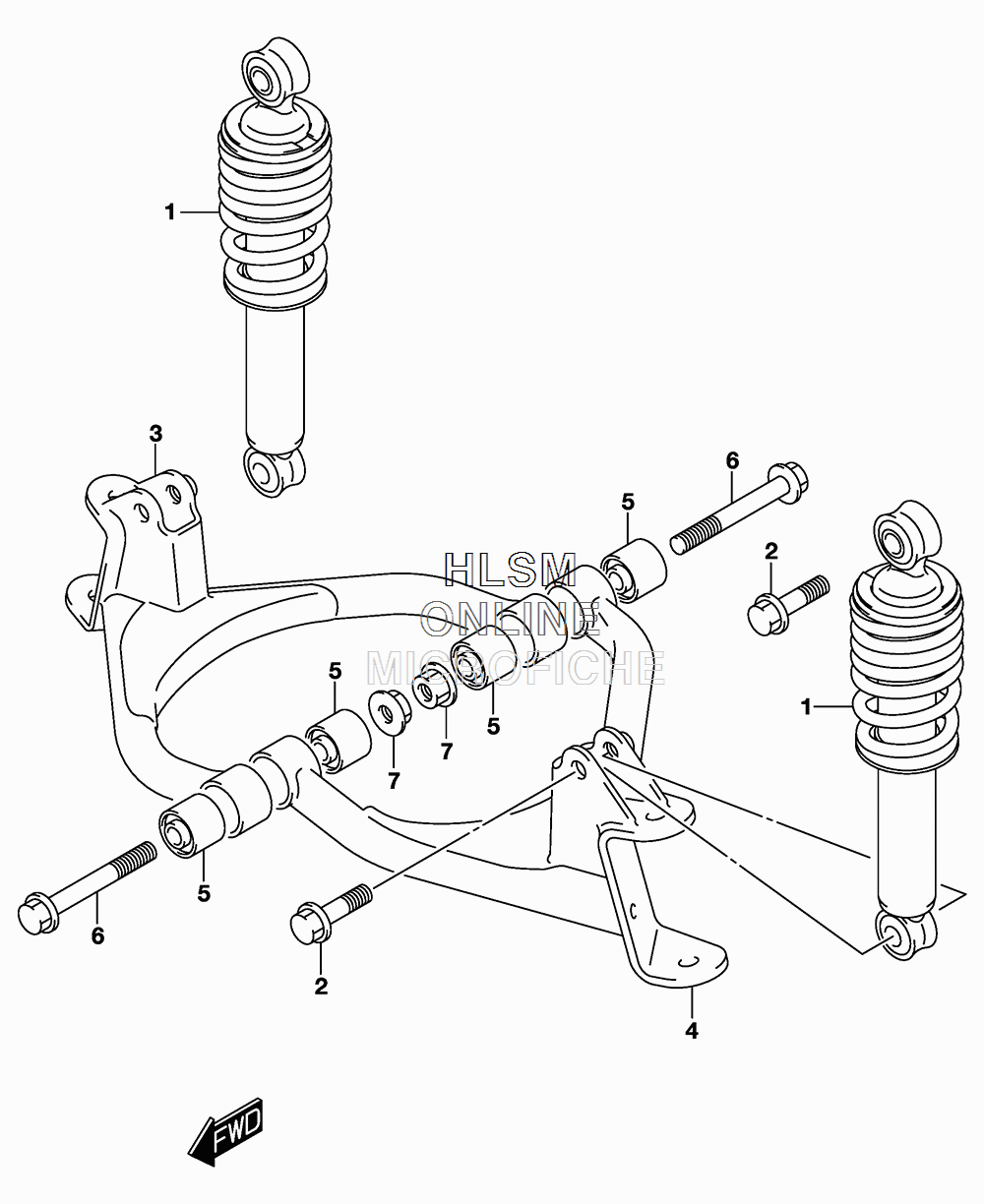

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki QUADSPORT Z50 [LTZ50L6] - 2016 года выпуска
-
№АртикулНазвание
-
152100-43G10-YKS ABSORBER ASSY, FRONT (RED)ABSORBER ASSY, FRONT (RED)
-
209103-10019 BOLT, ABSORBER (10X37)BOLT, ABSORBER (10X37)
-
352410-43F00-019 ARM, SUSPENSION RH (BLACK)ARM, SUSPENSION RH (BLACK)
-
452420-43F00-019 ARM, SUSPENSION LH (BLACK)ARM, SUSPENSION LH (BLACK)
-
509319-10049 BUSH, ARM (10X28.1X28)BUSH, ARM (10X28.1X28)
-
609103-10173 BOLT, SUSPENSION ARM (10X80)BOLT, SUSPENSION ARM (10X80)
-
708316-2010B NUT, SUSPENSION ARMNUT, SUSPENSION ARM
