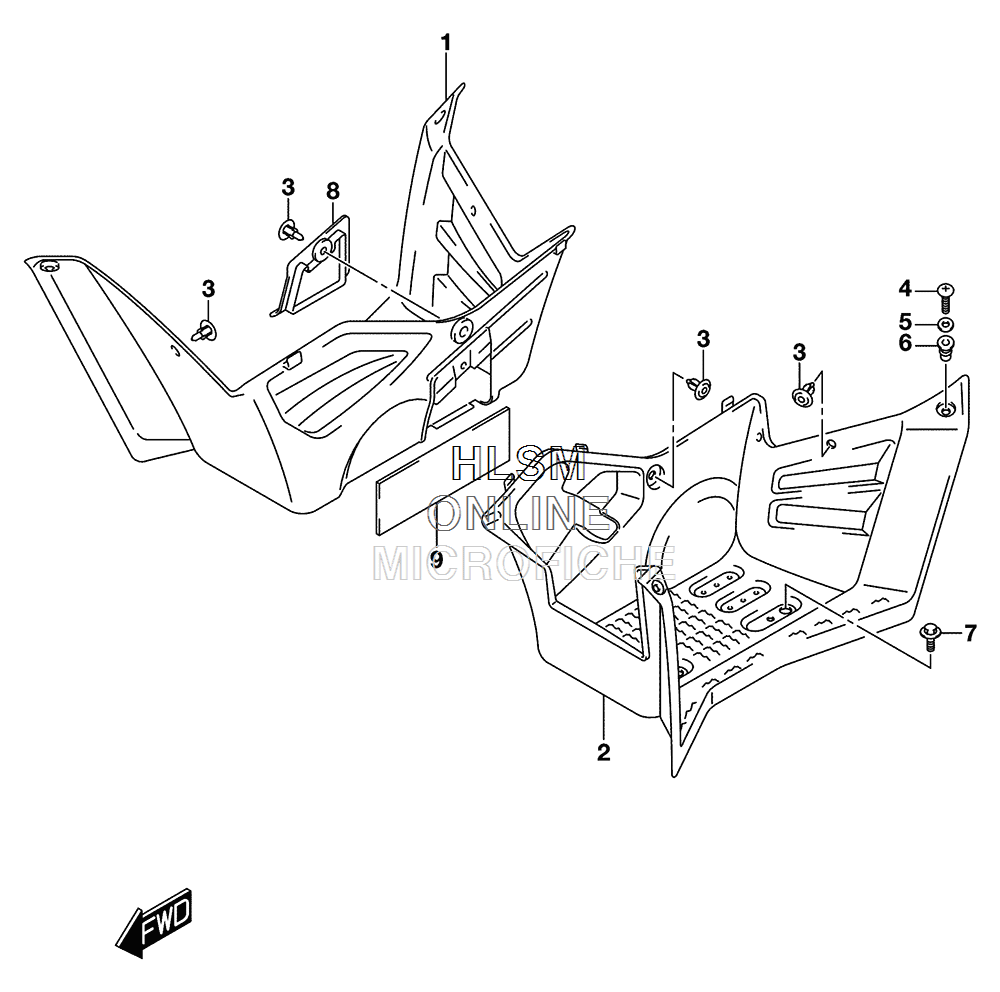

FRAME COVER для Suzuki QUADSPORT Z50 [LTZ50L6] - 2016 года выпуска
-
№АртикулНазвание
-
147111-43G00-291 COVER, FRAME RH (BLACK)COVER, FRAME RH (BLACK)
-
247211-43G00-291 COVER, FRAME LH (BLACK)COVER, FRAME LH (BLACK)
-
309409-07333 CLIPCLIP
-
402142-0520B SCREWSCREW
-
508322-0105B WASHERWASHER
-
609159-05019 NUTNUT
-
709111-06081 BOLTBOLT
-
847121-43G00 LID, RHLID, RH
-
963262-43G00 SHIELD, COVERSHIELD, COVER
