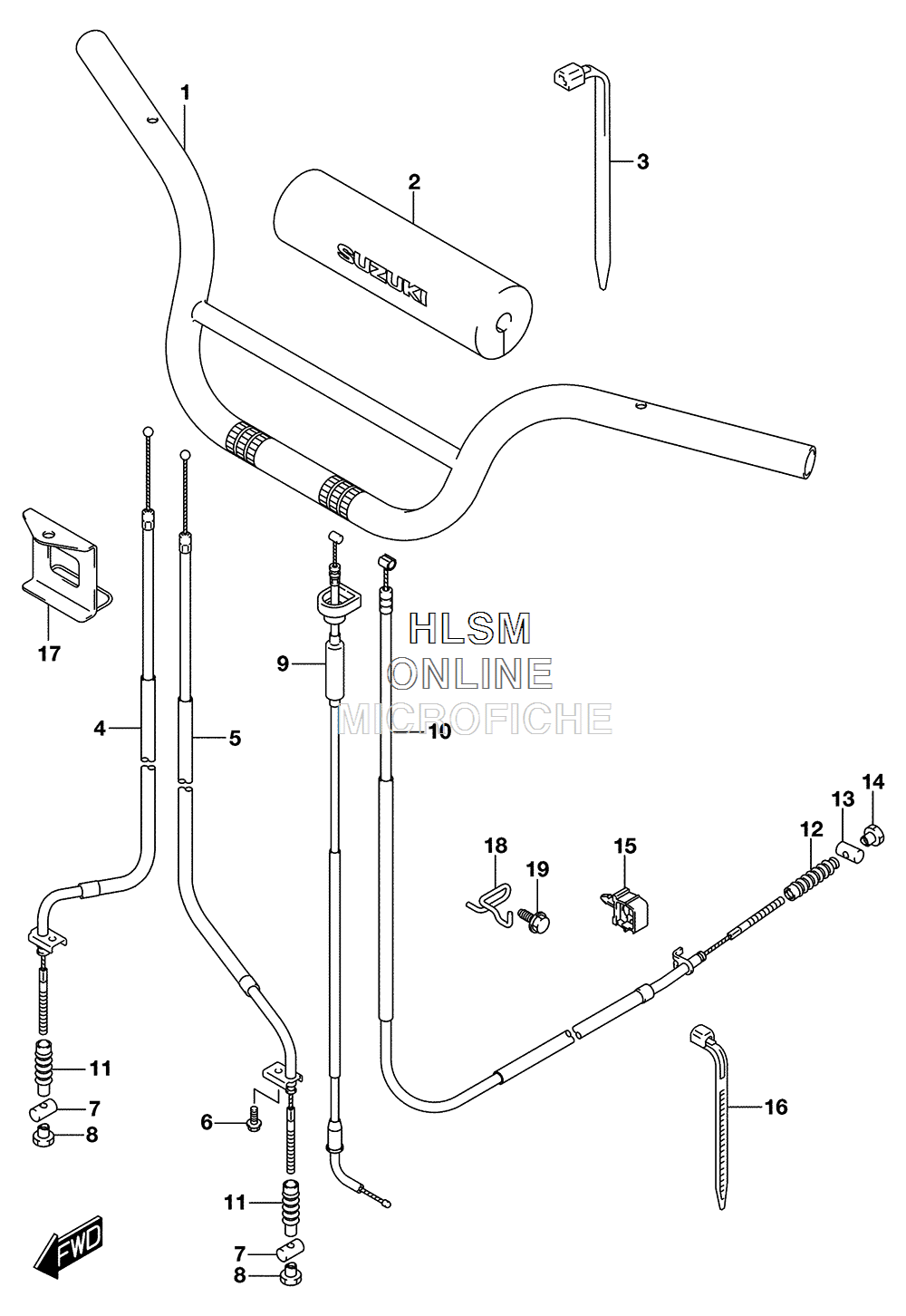

HANDLEBAR W/ CABLES для Suzuki QUADSPORT Z50 [LTZ50L6] - 2016 года выпуска
-
№АртикулНазвание
-
156110-43G00-13L HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
256172-04600 PAD, CROSSPAD, CROSS
-
309407-18401 CLAMPCLAMP
-
458110-43G00 CABLE ASSY, FRONT BRAKE RHCABLE ASSY, FRONT BRAKE RH
-
558120-43G00 CABLE ASSY, FRONT BRAKE LHCABLE ASSY, FRONT BRAKE LH
-
609106-06076 BOLTBOLT
-
709209-10001 PINPIN
-
809150-05101 NUTNUT
-
958300-43G00 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1058510-43G00 CABLE ASSY, REAR BRAKECABLE ASSY, REAR BRAKE
-
1158553-43F00 BOOT, FRONT BRAKE CABLEBOOT, FRONT BRAKE CABLE
-
1258553-43F10 BOOT, REAR BRAKE CABLEBOOT, REAR BRAKE CABLE
-
1309209-10001 PINPIN
-
1409150-05101 NUTNUT
-
1509403-12412 CLAMP, REAR BRAKECLAMP, REAR BRAKE
-
1609407-14403 CLAMPCLAMP
-
1609407-12402 CLAMPCLAMP
-
1758620-43F00 GUIDE, FRONT BRAKE CABLEGUIDE, FRONT BRAKE CABLE
-
1858621-43G00 GUIDE, REAR BRAKE CABLEGUIDE, REAR BRAKE CABLE
-
1909103-06172 BOLTBOLT
