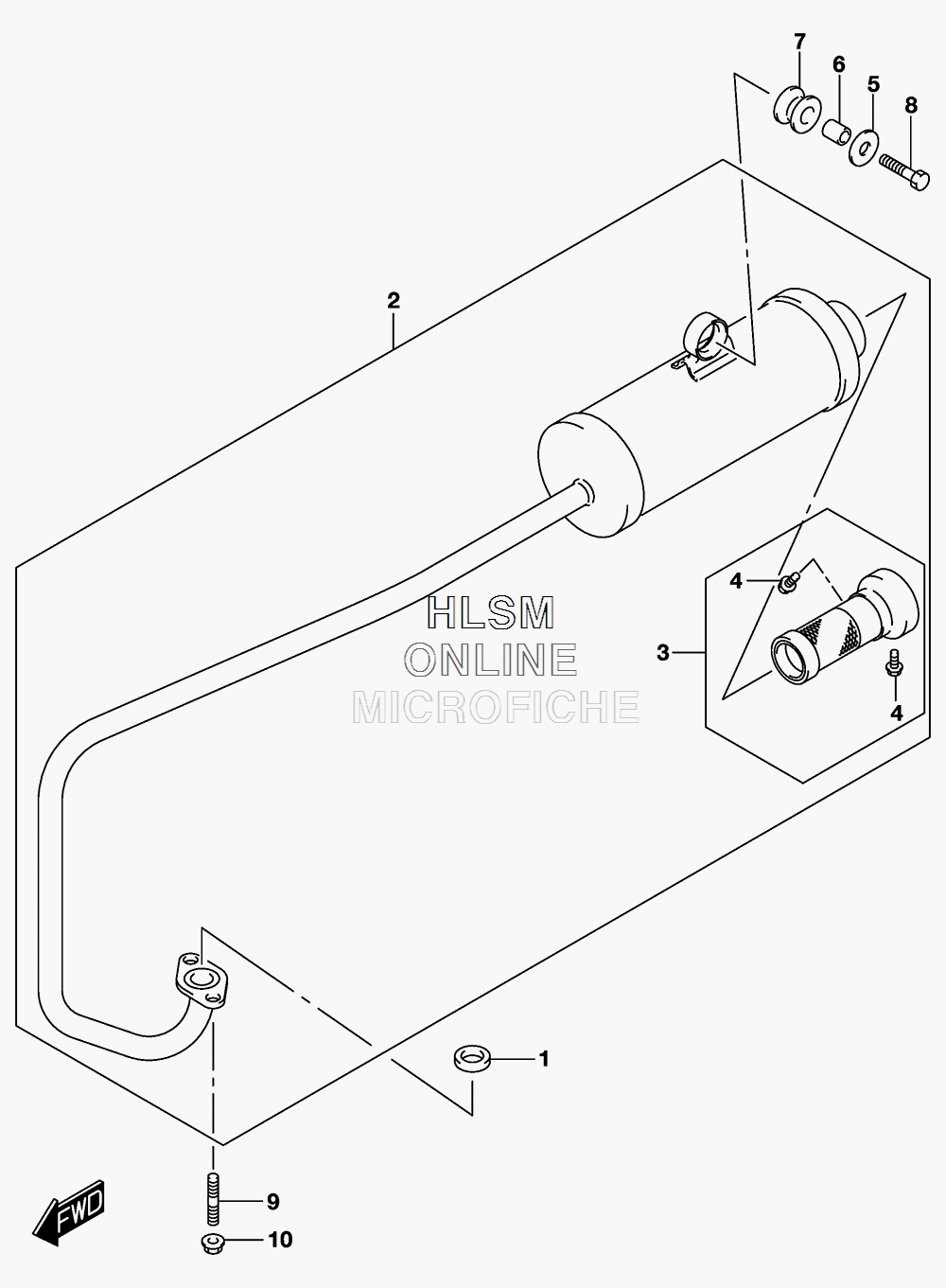

MUFFLER для Suzuki QUADSPORT Z50 [LTZ50L6] - 2016 года выпуска
-
№АртикулНазвание
-
114181-22G01 GASKET, EXHA PIPEGASKET, EXHA PIPE
-
214301-43G00 MUFFLER ASSYMUFFLER ASSY
-
314850-43810 ...ARRESTER SET...ARRESTER SET
-
401547-0610B ......BOLT......BOLT
-
509160-08151 WASHER, (8.5X26X1.6)WASHER, (8.5X26X1.6)
-
609180-08194 SPACER, (8.5X12X17.5)SPACER, (8.5X12X17.5)
-
709320-12043 CUSHIONCUSHION
-
801500-0835B BOLT, MUFFLER SUPPORTBOLT, MUFFLER SUPPORT
-
901421-0616B BOLT, STUDBOLT, STUD
-
1008316-1006B NUTNUT
