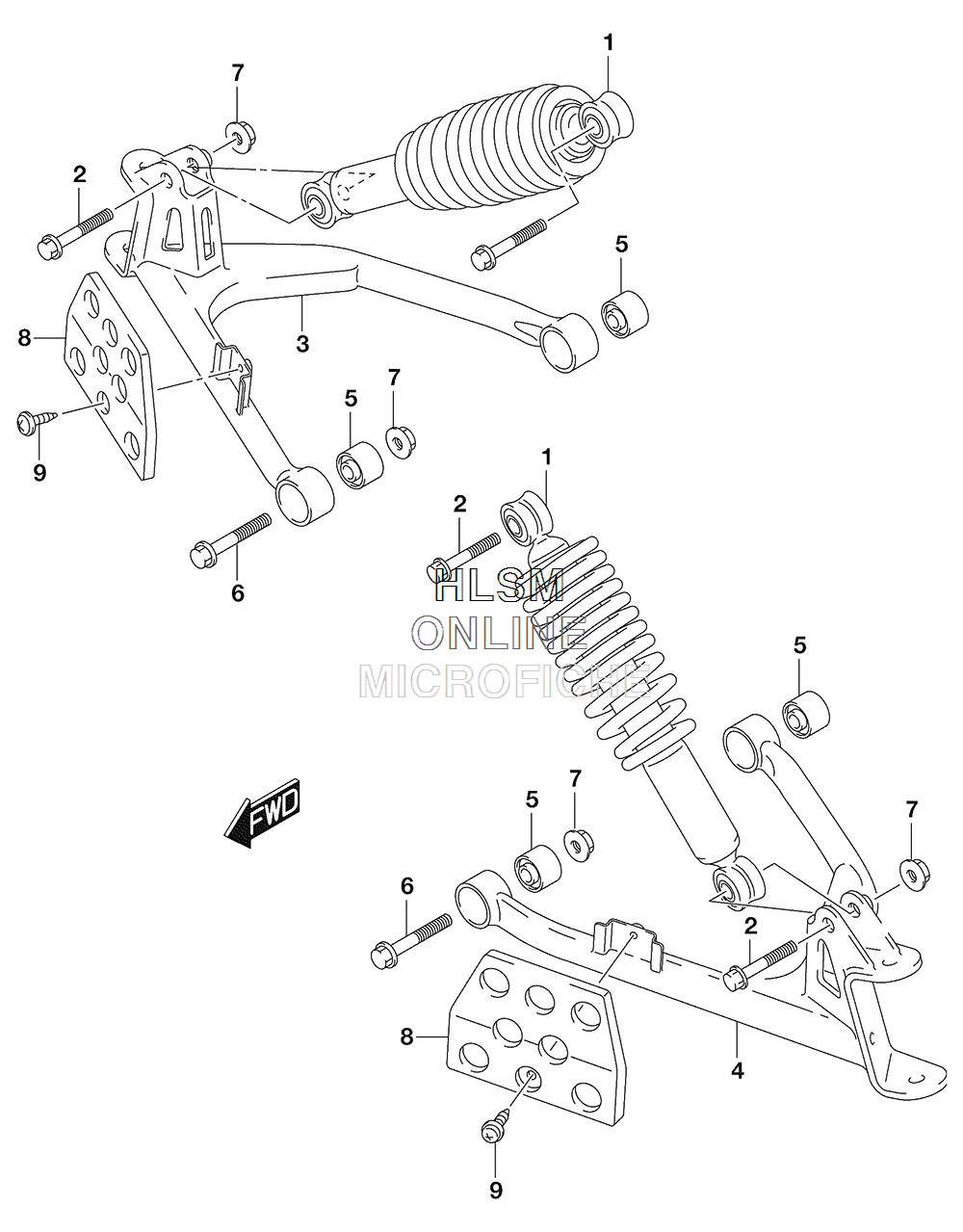

SUSPENSION ARM для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска
-
№АртикулНазвание
-
152100-08H00-YKS ABSORBER ASSY, FRONT (RED)ABSORBER ASSY, FRONT (RED)
-
209103-10351 BOLT, (10X38)BOLT, (10X38)
-
352410-08H00-019 ARM, SUSPENSION RIGHT HAND (BLACK)ARM, SUSPENSION RIGHT HAND (BLACK)
-
452420-08H00-019 ARM, SUSPENSION LEFT HAND (BLACK)ARM, SUSPENSION LEFT HAND (BLACK)
-
509319-10049 BUSH, ARM (10X28.1X28)BUSH, ARM (10X28.1X28)
-
609103-10218 BOLT, SUSPENSION ARM (10X45)BOLT, SUSPENSION ARM (10X45)
-
708319-3110A NUT, SUSPENSION ARMNUT, SUSPENSION ARM
-
854903-08H00 PROTECTOR, SUSPENSION ARMPROTECTOR, SUSPENSION ARM
-
909111-06065 BOLT, PROTECTOR (6X16)BOLT, PROTECTOR (6X16)
Все узлы модели:
- AIR CLEANER
- BATTERY
- CAM CHAIN ASSY. W/ TENSIONER
- CAMSHAFT W/ VALVES
- CARBURETOR ASSY.
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- CYLINDER HEAD COVER
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST
- FRAME
- FRONT WHEEL BRAKE
- FUEL COCK ASSY.
- FUEL TANK
- FUEL TANK COVER
- GASKET SET
- HANDLEBAR
- HANDLEBAR - LEFT HAND LEVER
- HANDLEBAR - RIGHT HAND LEVER
- KNUCKLE ARM
- LABEL (P28)
- LABEL (P33)
- MAGNETO
- MUDGUARD
- MUFFLER
- OIL PUMP
- REAR SWINGARM
- RECOIL STARTER
- REFLECTOR (P28)
- SEAT (P28)
- SEAT (P33)
- STARTER CLUTCH
- STARTING MOTOR
- STEERING STEM
- • SUSPENSION ARM
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - REAR
