GASKET SET для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска

  • №
    Артикул
    Название

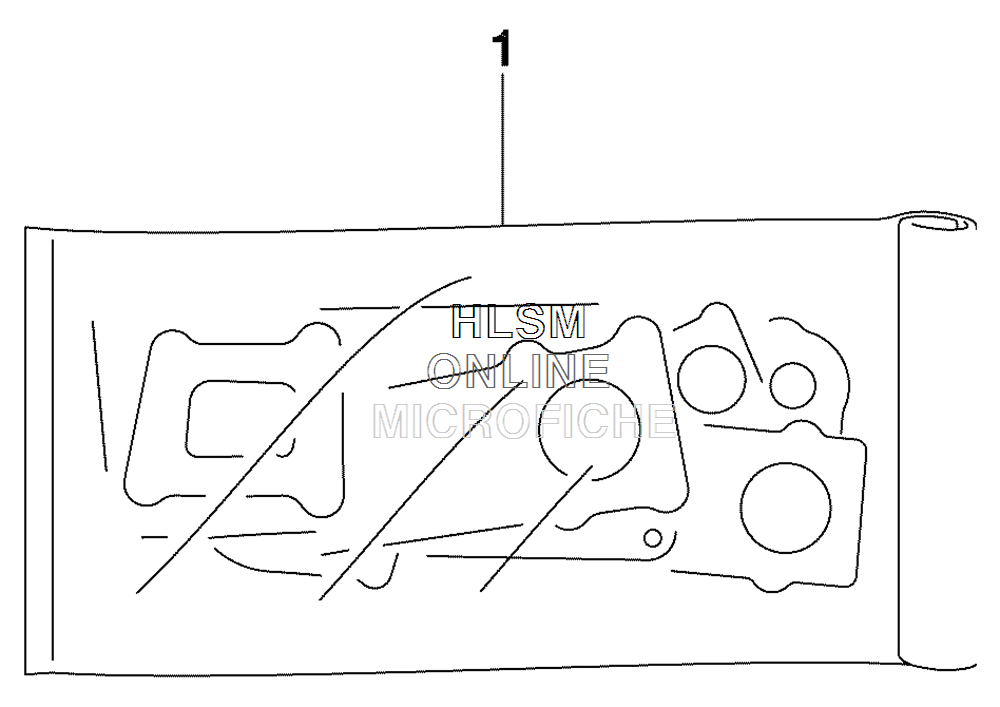

  • 1
    11401-08820 GASKET SET (OPT)
    GASKET SET (OPT)
  • 2
    11141-08H00 GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
    GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
  • 3
    11173-33G00 GASKET, CYL HEAD COVER (NOT ILLUSTRATED)
    GASKET, CYL HEAD COVER (NOT ILLUSTRATED)
  • 4
    11177-08H00 GASKET, BREATHER PLATE (NOT ILLUSTRATED)
    GASKET, BREATHER PLATE (NOT ILLUSTRATED)
  • 5
    11241-33G00 GASKET, CYLINDER (NOT ILLUSTRATED)
    GASKET, CYLINDER (NOT ILLUSTRATED)
  • 6
    11482-08H00 GASKET, CLUTCH COVER (NOT ILLUSTRATED)
    GASKET, CLUTCH COVER (NOT ILLUSTRATED)
  • 7
    11483-33G40 GASKET, CRANKSHAFT COVER (NOT ILLUSTRATED)
    GASKET, CRANKSHAFT COVER (NOT ILLUSTRATED)
  • 8
    11484-33G40 GASKET, GEAR BOX COVER (NOT ILLUSTRATED)
    GASKET, GEAR BOX COVER (NOT ILLUSTRATED)
  • 9
    12837-32G00 GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
    GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
  • 10
    14181-06F00 GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
    GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
  • 11
    16524-20E00 GASKET, OIL STRAINER CAP (NOT ILLUSTRATED)
    GASKET, OIL STRAINER CAP (NOT ILLUSTRATED)
  • 12
    18299-08H00 GASKET, RECOIL STARTER (NOT ILLUSTRATED)
    GASKET, RECOIL STARTER (NOT ILLUSTRATED)
  • 13
    09280-13004 O RING (D:1.9,ID:13) (NOT ILLUSTRATED)
    O RING (D:1.9,ID:13) (NOT ILLUSTRATED)
  • 14
    09280-17003 O RING (D:3.1,ID:16.8) (NOT ILLUSTRATED)
    O RING (D:3.1,ID:16.8) (NOT ILLUSTRATED)
  • 15
    09280-54001 O RING (D:2.4,ID:52.6) (NOT ILLUSTRATED)
    O RING (D:2.4,ID:52.6) (NOT ILLUSTRATED)
