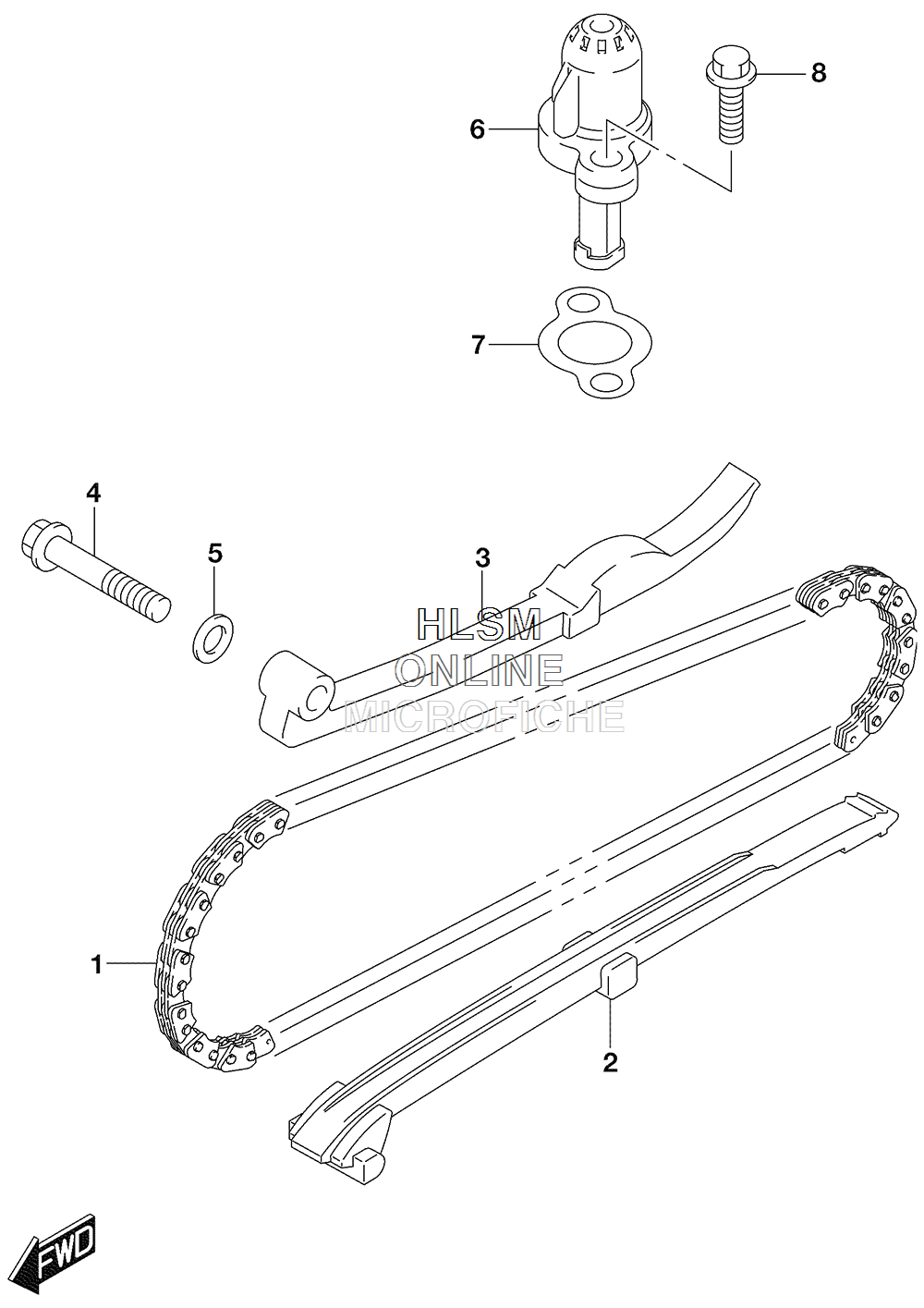

CAM CHAIN ASSY. W/ TENSIONER для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска`
-
№АртикулНазвание
-
112760-20G20 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
212771-33G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-09G20 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
409103-06247 BOLT (6X32)BOLT (6X32)
-
509168-06004 GASKET (6.2X11X1.2)GASKET (6.2X11X1.2)
-
612830-09G00 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
712837-32G00 GASKETGASKET
-
801547-0620B BOLTBOLT
