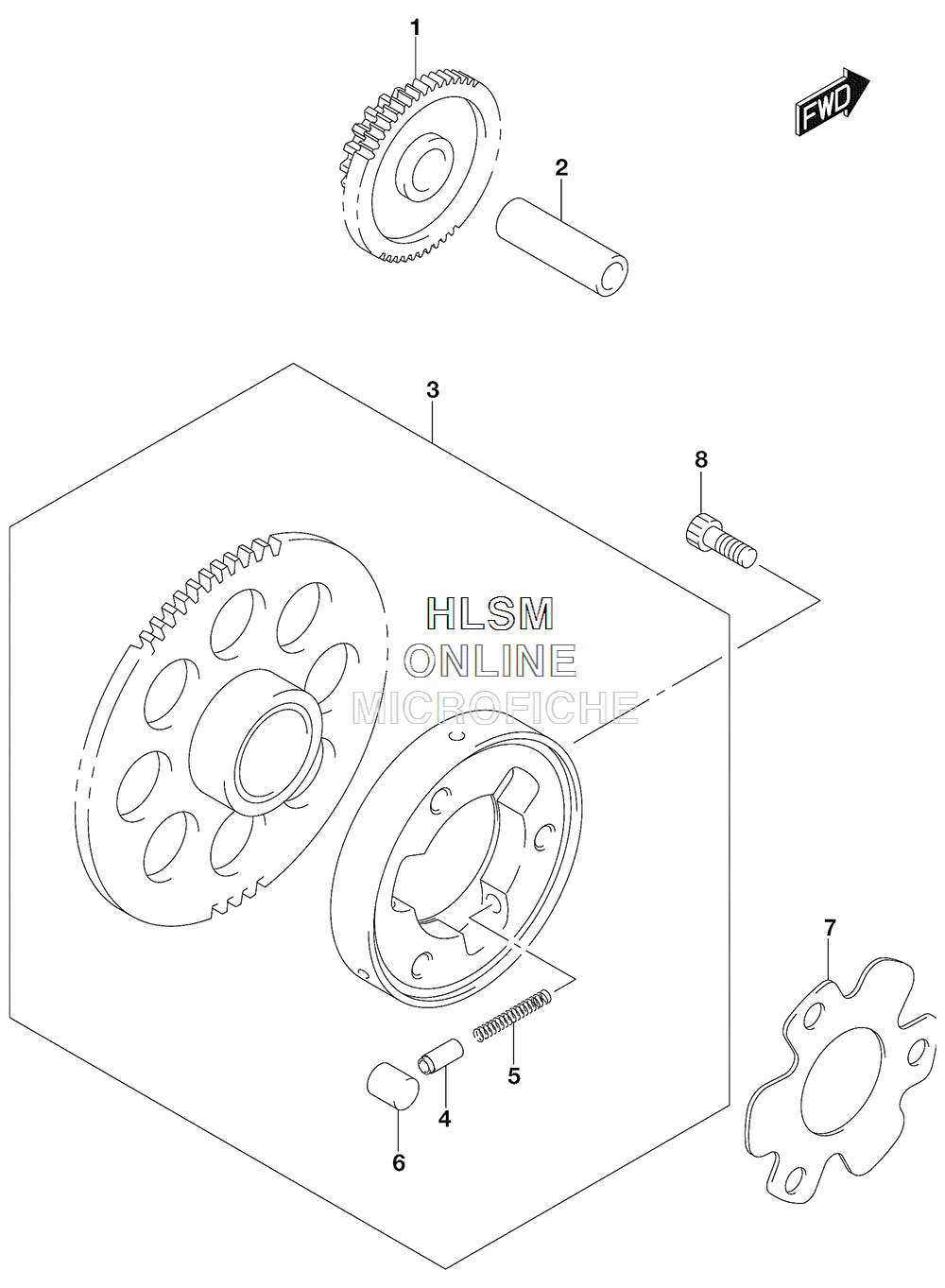

STARTER CLUTCH для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска
-
№АртикулНазвание
-
112611-33G00 GEAR, STARTER IDLEGEAR, STARTER IDLE
-
209206-13007 PINPIN
-
312600-08812 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
412633-05300 PIECE, STARTER CLUTCH PUSHPIECE, STARTER CLUTCH PUSH
-
509261-10003 ROLLERROLLER
-
609440-03007 SPRINGSPRING
-
712649-30D00 SHIM, STARTER CLUTCH HUBSHIM, STARTER CLUTCH HUB
-
807130-0616B BOLTBOLT
