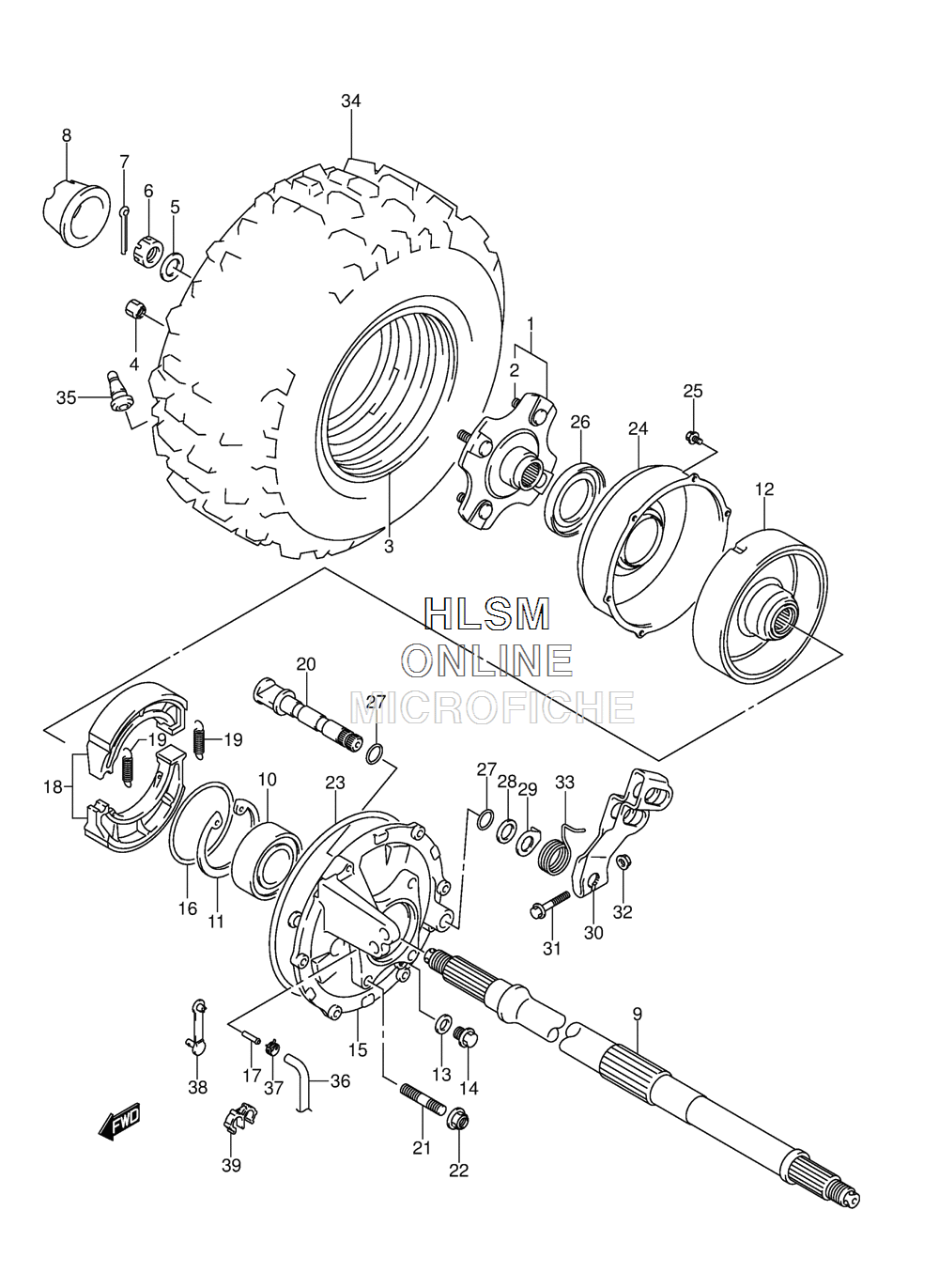

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
164110-05G10 HUB, REAR WHEEL RIGHT HANDHUB, REAR WHEEL RIGHT HAND
-
209119-10049-XC0 BOLT (10X30)BOLT (10X30)
-
365310-05G00-YL8 RIM, REAR WHEEL (9X7.0AT) (SILVER)RIM, REAR WHEEL (9X7.0AT) (SILVER)
-
409159-10114 NUTNUT
-
509164-18004 WASHERWASHER
-
609141-18010 NUTNUT
-
704111-4035A COTTER PINCOTTER PIN
-
854725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
964711-05G10 AXLE, REARAXLE, REAR
-
1009267-30013 BEARING (30X62X23.8)BEARING (30X62X23.8)
-
1108331-4162A CIRCLIPCIRCLIP
-
1264120-05G10 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
1309161-10007 WASHER, DRAIN PLUGWASHER, DRAIN PLUG
-
1409247-10008 PLUGPLUG
-
1564210-05G01 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
1609280-68008 O RING (D:2.4,ID:66.9)O RING (D:2.4,ID:66.9)
-
1709364-04004 UNIONUNION
-
1864400-05810 SHOE SET, REAR BRAKESHOE SET, REAR BRAKE
-
1955421-45F00 SPRING, SHOESPRING, SHOE
-
2064440-05G01 CAM, REAR BRAKECAM, REAR BRAKE
-
2109108-10089 STUD BOLTSTUD BOLT
-
2209159-10115 NUTNUT
-
2309280-00039 O RINGO RING
-
2464123-05G00 COVER, REAR BRAKE DRUMCOVER, REAR BRAKE DRUM
-
2501547-0612A BOLTBOLT
-
2664124-05G00 SEAL, REAR BRAKE DRUM COVERSEAL, REAR BRAKE DRUM COVER
-
2709280-14004 O RING (D:1.9,ID:13.8)O RING (D:1.9,ID:13.8)
-
2809160-14055 WASHER (14.5X22X1.6)WASHER (14.5X22X1.6)
-
2964492-21G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
3064451-05G00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
3101550-0635A BOLTBOLT
-
3208316-1006A NUTNUT
-
3364484-05G00 SPRING, RR BRAKE CAM LEVERSPRING, RR BRAKE CAM LEVER
-
3465110-05G20 TIRE, REAR (AT22X10.9)TIRE, REAR (AT22X10.9)
-
3543130-24A00 VALVE ASSY, WHEEL RIM, TR412VALVE ASSY, WHEEL RIM, TR412
-
3664270-05G00 HOSE, REAR BRAKE BREATHERHOSE, REAR BRAKE BREATHER
-
3709401-06405 CLIPCLIP
-
3809407-03401 CLAMP (L:33)CLAMP (L:33)
-
3909408-00200 CLIPCLIP
