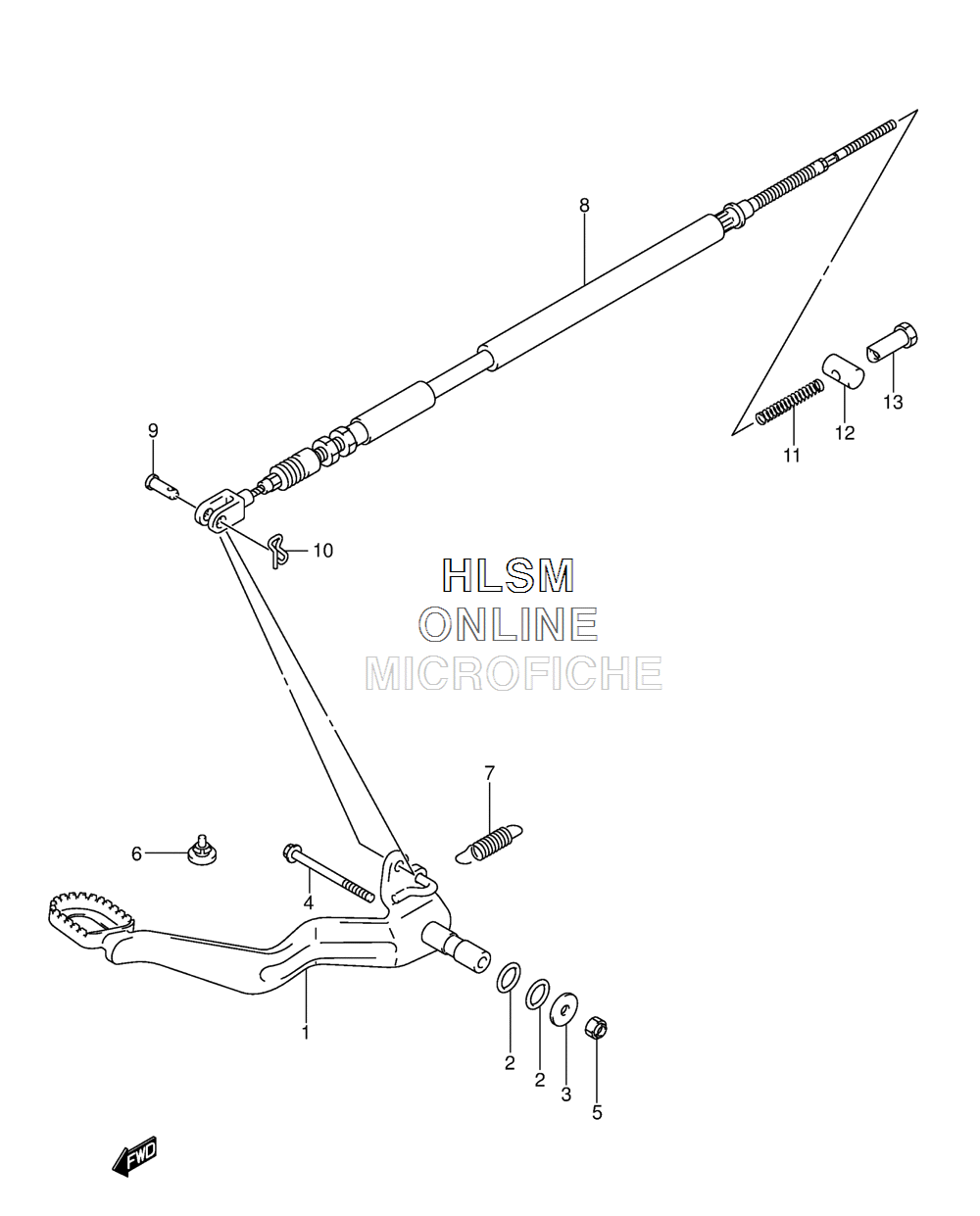

BRAKE - REAR PEDAL для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
143110-05G20 PEDAL, BRAKEPEDAL, BRAKE
-
209280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
309160-06138 WASHER (6.5X22X2.3)WASHER (6.5X22X2.3)
-
401547-0665A BOLTBOLT
-
508319-2106A NUTNUT
-
609321-08022 CUSHIONCUSHION
-
709443-11030 SPRINGSPRING
-
858510-05G00 CABLE, REAR BRAKECABLE, REAR BRAKE
-
909200-05001 PIN, BRAKE CONNECTIONPIN, BRAKE CONNECTION
-
1009385-06012 CLIPCLIP
-
1109440-08042 SPRINGSPRING
-
1209209-13006 PINPIN
-
1309150-06015 NUTNUT
