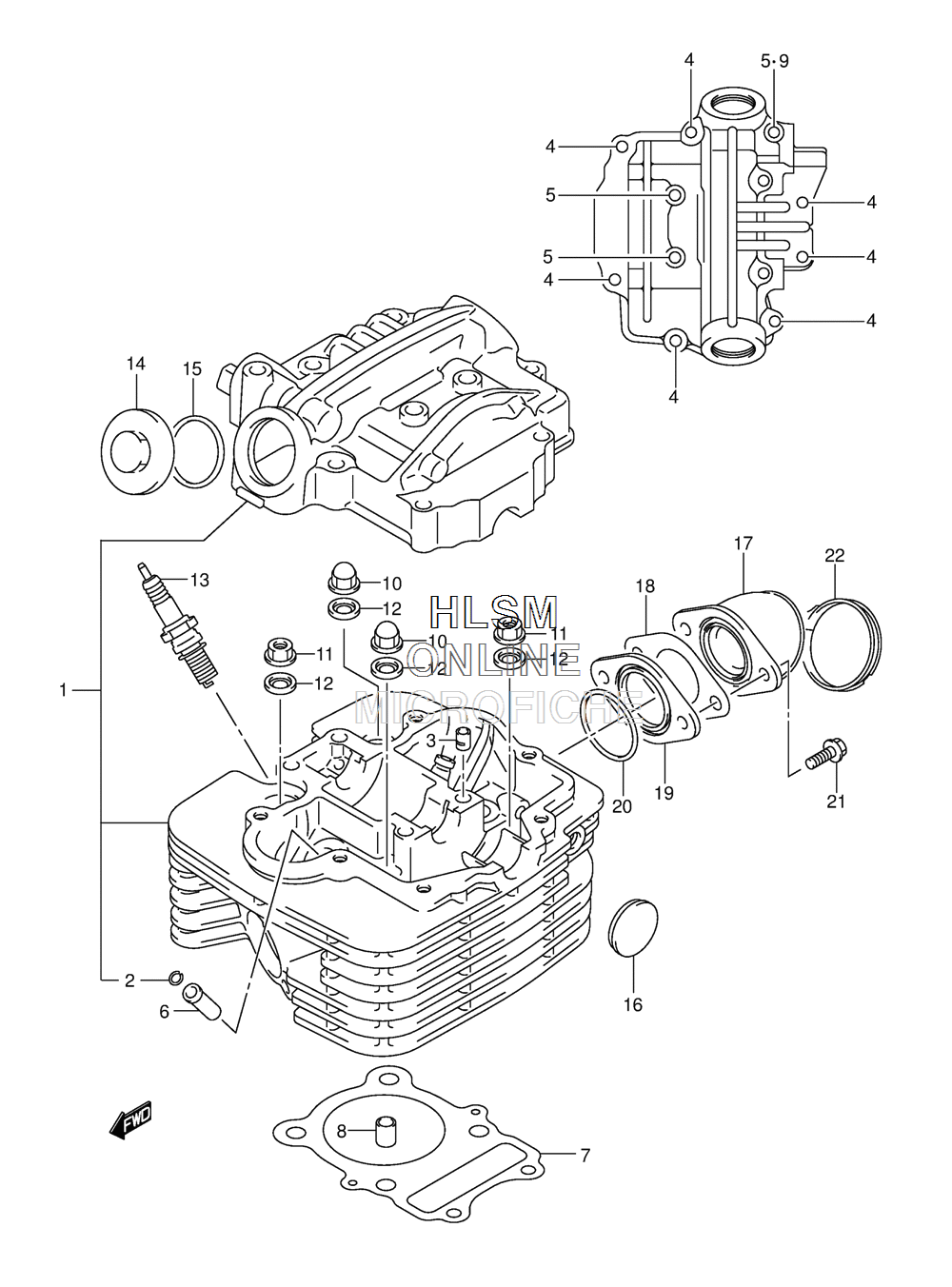

CYLINDER HEAD для Suzuki LT-F250 Ozark 250 - 2014 года выпуска`
-
№АртикулНазвание
-
111100-05G00 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10004 CIRCLIPCIRCLIP
-
309206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
401550-0635A BOLTBOLT
-
501550-0660A BOLTBOLT
-
611115-05270 GUIDE, VALVE (OS:0.3)GUIDE, VALVE (OS:0.3)
-
711141-19B00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
804211-11169 PIN 11X16PIN 11X16
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1009159-08049 NUTNUT
-
1108316-1008A NUTNUT
-
1209168-08021 GASKET (8.5X17X2.3)GASKET (8.5X17X2.3)
-
1309482-00398 SPARK PLUG (DR7EA) NGK (STD)SPARK PLUG (DR7EA) NGK (STD)
-
1309482-00222 SPARK PLUG (X22ESR-U) DENSO (STD)SPARK PLUG (X22ESR-U) DENSO (STD)
-
1309482-00399 SPARK PLUG (DR8EA) NGK (OPT)SPARK PLUG (DR8EA) NGK (OPT)
-
1309482-00223 SPARK PLUG (X24ESR-U) DENSO (OPT)SPARK PLUG (X24ESR-U) DENSO (OPT)
-
1309482-00400 SPARK PLUG (DR9EA) NGK (OPT)SPARK PLUG (DR9EA) NGK (OPT)
-
1309482-00224 SPARK PLUG (X27ESR-U) DENSO (OPT)SPARK PLUG (X27ESR-U) DENSO (OPT)
-
1411175-18900 CAP, INSPECTIONCAP, INSPECTION
-
1509280-30001 O RING (D:3,ID:29.5)O RING (D:3,ID:29.5)
-
1609241-22002 PLUGPLUG
-
1713110-05G00 PIPE, INTAKEPIPE, INTAKE
-
1813118-05G00 GASKET, INTAKE PIPEGASKET, INTAKE PIPE
-
1913117-05G00 INSULATOR, INTAKE PIPEINSULATOR, INTAKE PIPE
-
2009280-35005 O RING (D:2.1,ID:34.7)O RING (D:2.1,ID:34.7)
-
2107120-0620A BOLTBOLT
-
2209402-46208 CLAMPCLAMP
