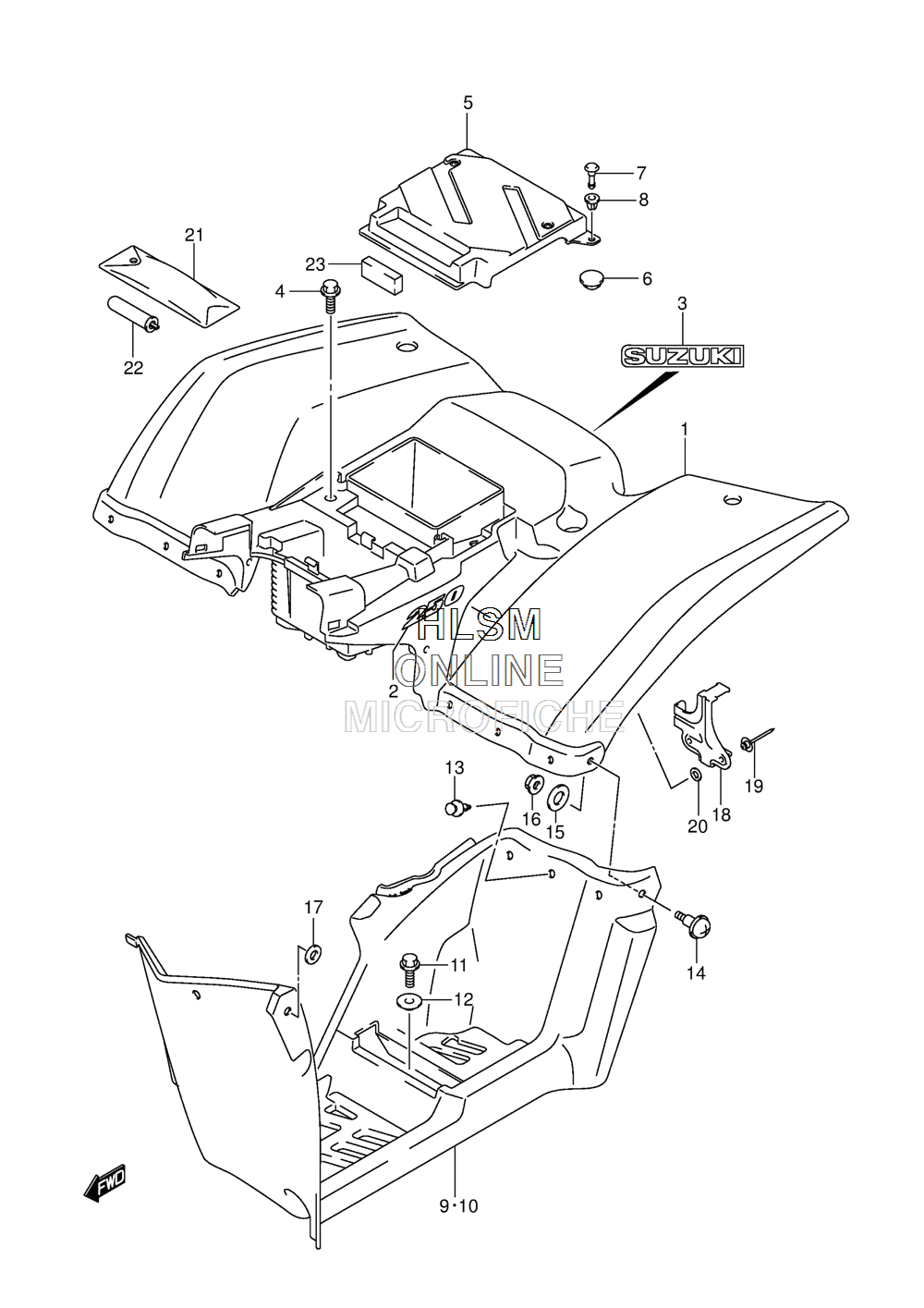

FENDER - REAR для Suzuki LT-F250 Ozark 250 - 2014 года выпуска`
-
№АртикулНазвание
-
163111-05G01-YT9 FENDER, REAR (RED)FENDER, REAR (RED)
-
163111-05G01-YLG FENDER, REAR (GREEN)FENDER, REAR (GREEN)
-
268171-05G10-HFT EMBLEM, ''250''EMBLEM, ''250''
-
368171-05GA0-1ZZ EMBLEM, ''SUZUKI'' (GRAY)EMBLEM, ''SUZUKI'' (GRAY)
-
409113-06001 BOLT (6X16)BOLT (6X16)
-
563121-05G10 COVER, REAR FENDERCOVER, REAR FENDER
-
609250-08007 CAPCAP
-
709409-08329 GROMMETGROMMET
-
809409-08330 PLUNGERPLUNGER
-
963331-05G00-291 MUD GUARD, FOOTREST RIGHT HAND (BLACK)MUD GUARD, FOOTREST RIGHT HAND (BLACK)
-
1063341-05G00-291 MUD GUARD, FOOTREST LEFT HAND (BLACK)MUD GUARD, FOOTREST LEFT HAND (BLACK)
-
1101550-0612B BOLTBOLT
-
1209169-06076 WASHERWASHER
-
1309409-08335 CLIPCLIP
-
1409136-05038 SCREW (5X16)SCREW (5X16)
-
1509160-05046 WASHER (5.5X20X1.4)WASHER (5.5X20X1.4)
-
1609159-05043 NUTNUT
-
1753341-38F01 WASHER, FOOTREST SIDEWASHER, FOOTREST SIDE
-
1847413-05G01 PLATE, CDI UNITPLATE, CDI UNIT
-
1909229-04020 RIVETRIVET
-
2008322-01047 WASHERWASHER
-
2109800-21044 TOOL ASSYTOOL ASSY
-
2296200-18A02 GAUGE, AIRGAUGE, AIR
-
2333652-31F00 CUSHION, REAR FENDERCUSHION, REAR FENDER
