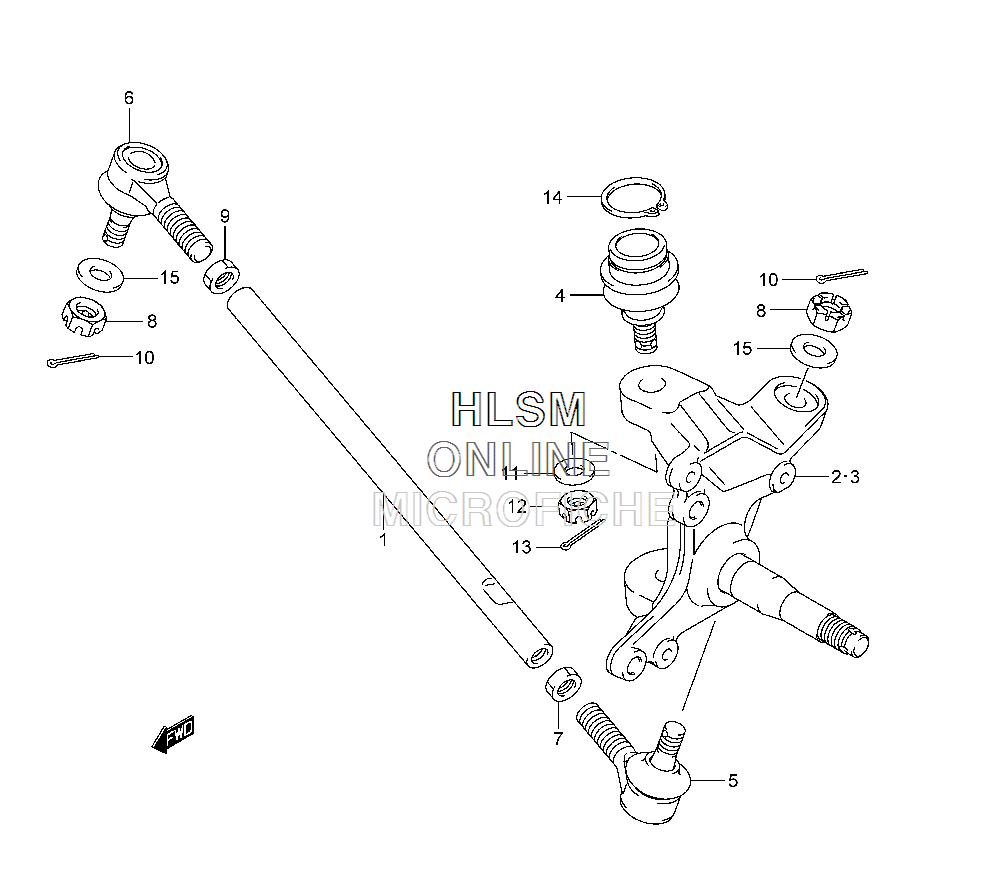

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска`
-
№АртикулНазвание
-
151281-33H00 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-33H00 KNUCKLE, STEERING RHKNUCKLE, STEERING RH
-
351240-33H00 KNUCKLE, STEERING LHKNUCKLE, STEERING LH
-
451210-31G10 END, KNUCKLE STEERING UPPEREND, KNUCKLE STEERING UPPER
-
551260-45G00 END COMP. ROD RIGHTEND COMP. ROD RIGHT
-
651270-45G00 END COMP. ROD REFTEND COMP. ROD REFT
-
751283-09F00 NUT,TIE-ROD RIGHTNUT,TIE-ROD RIGHT
-
808314-4010A NUTNUT
-
909140-12035 NUT,TIE-ROD LEFTNUT,TIE-ROD LEFT
-
1004111-2020A COTTER PINCOTTER PIN
-
1109160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
1208314-4010A NUTNUT
-
1304111-2020A COTTER PINCOTTER PIN
-
1408331-31309 CIRCLIPCIRCLIP
-
1509160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
