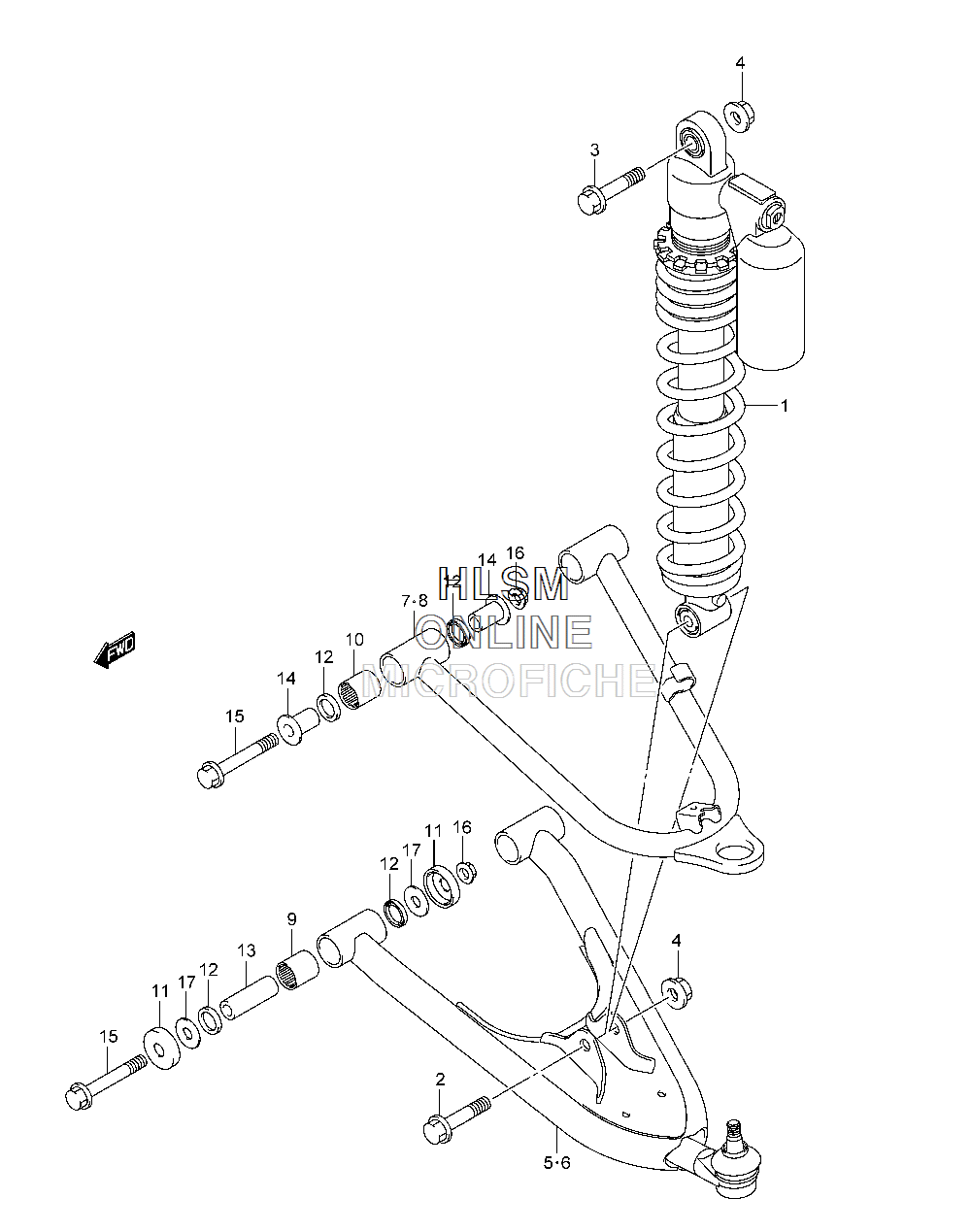

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска`

№

Артикул

Название
1

52100-33H00-YKS ABSORBER ASSY, FRONT SHOCK (YKS - FIERY RED)

ABSORBER ASSY, FRONT SHOCK (YKS - FIERY RED)

7 788 300 ₽
2

09103-10352 BOLT (10X48)

BOLT (10X48)

860 ₽
3

09103-10351 BOLT (10X38)

BOLT (10X38)

860 ₽
4

09159-10115 NUT

NUT

620 ₽
5

52410-33H00-YD8 ARM ASSY, SUSPENSION LOWER RIGHT (SILVER)

ARM ASSY, SUSPENSION LOWER RIGHT (SILVER)

1 563 900 ₽
6

52420-33H00-YD8 ARM ASSY, SUSPENSION LOWER LEFT (SILVER)

ARM ASSY, SUSPENSION LOWER LEFT (SILVER)

1 563 900 ₽
7

52430-33H00-YD8 ARM ASSY, SUSPENSION UPPER RIGHT (SILVER)

ARM ASSY, SUSPENSION UPPER RIGHT (SILVER)

939 900 ₽
8

52440-33H00-YD8 ARM ASSY, SUSPENSION UPPER LEFT (SILVER)

ARM ASSY, SUSPENSION UPPER LEFT (SILVER)

939 900 ₽
9

09263-17034 BEARING (17X24X26)

BEARING (17X24X26)

4 810 ₽
10

09263-17048 BEARING (17X24X27.5)

BEARING (17X24X27.5)

3 360 ₽
11

52454-43B00 SEAL, SUSPENSION ARM PIVOT DUST

SEAL, SUSPENSION ARM PIVOT DUST

1 540 ₽
12

09285-17001 OIL SEAL (17X24X3)

OIL SEAL (17X24X3)

660 ₽
13

52455-43B00 SPACER, LOWER

SPACER, LOWER

3 220 ₽
14

52455-07G00 SPACER, UPPER

SPACER, UPPER

4 040 ₽
15

09103-10033 BOLT (10X70)

BOLT (10X70)

1 080 ₽
16

09159-10115 NUT

NUT

620 ₽
17

08211-10281 WASHER

WASHER

350 ₽
