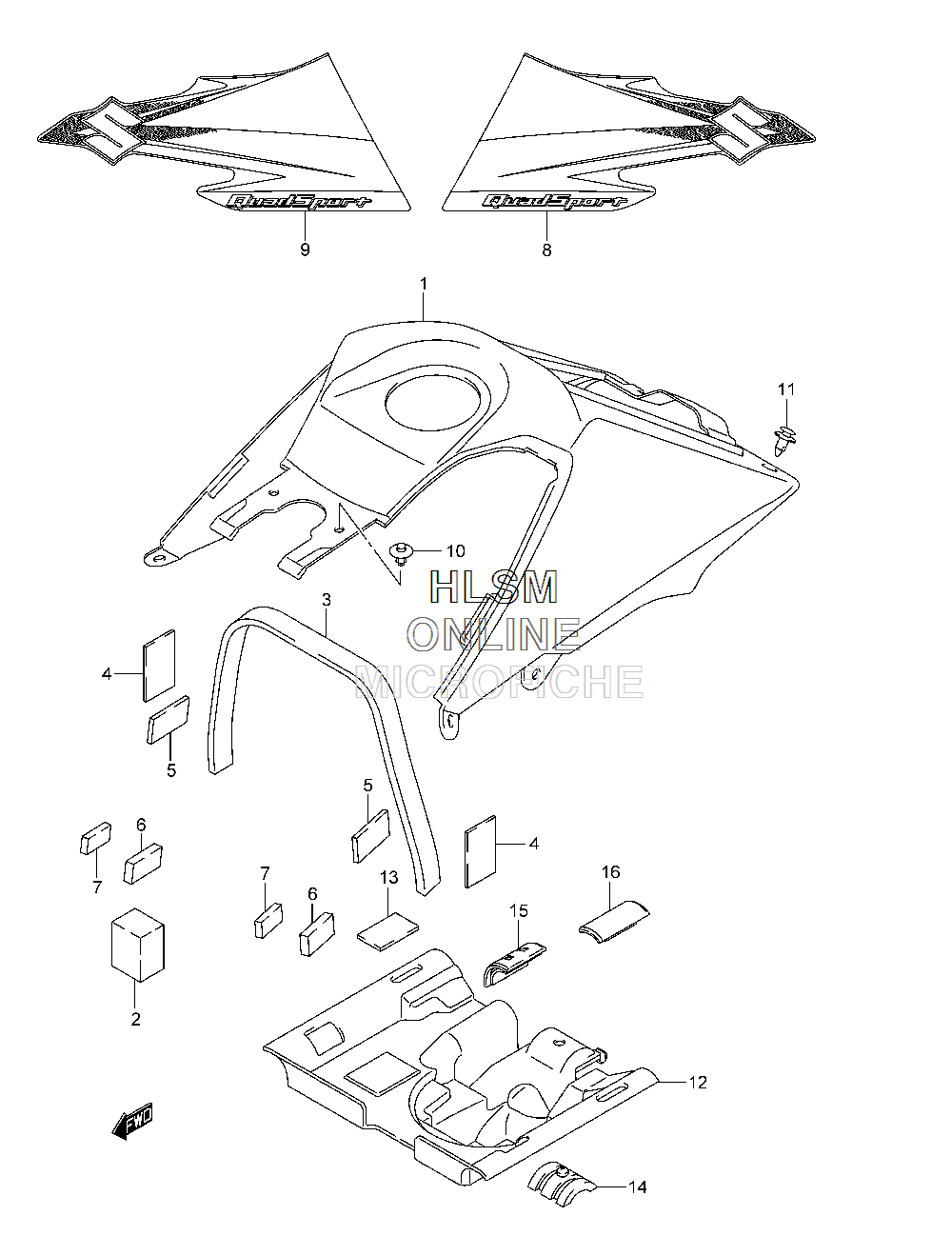

FUEL TANK COVER для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска

№

Артикул

Название
1

44271-33H01-30H COVER, FUEL TANK (WHITE)

COVER, FUEL TANK (WHITE)
1

44271-33H01-YU1 COVER, FUEL TANK (YELLOW)

COVER, FUEL TANK (YELLOW)
2

44558-33H00 CUSHION, FRONT LH

CUSHION, FRONT LH
3

44559-33H00 CUSHION, UPPER

CUSHION, UPPER
4

51553-15D40 CUSHION, REAR SIDE

CUSHION, REAR SIDE
5

44554-33H01 CUSHION, NO.4

CUSHION, NO.4
6

44557-33H00 CUSHION, NO.1

CUSHION, NO.1
7

51827-01A00 CUSHION, NO.5

CUSHION, NO.5
8

68115-33H10-HBS TAPE, COVER RIGHT (FOR WHITE)

TAPE, COVER RIGHT (FOR WHITE)
8

68115-33H10-HBP TAPE, COVER RIGHT (FOR YELLOW)

TAPE, COVER RIGHT (FOR YELLOW)
9

68116-33H10-HBS TAPE, COVER LEFT (FOR WHITE)

TAPE, COVER LEFT (FOR WHITE)
9

68116-33H10-HBP TAPE, COVER LEFT (FOR YELLOW)

TAPE, COVER LEFT (FOR YELLOW)
10

09409-07333 CLIP

CLIP
11

09409-08335 CLIP

CLIP
12

44391-33H00 COVER, TANK LOWER

COVER, TANK LOWER
13

44555-33H00 CUSHION

CUSHION
14

44542-33H00 CUSHION, LOWER REAR

CUSHION, LOWER REAR
15

44542-45G00 CUSHION, LOWER SIDE FRONT

CUSHION, LOWER SIDE FRONT
16

44543-33H00 CUSHION, LOWER SIDE REAR

CUSHION, LOWER SIDE REAR
