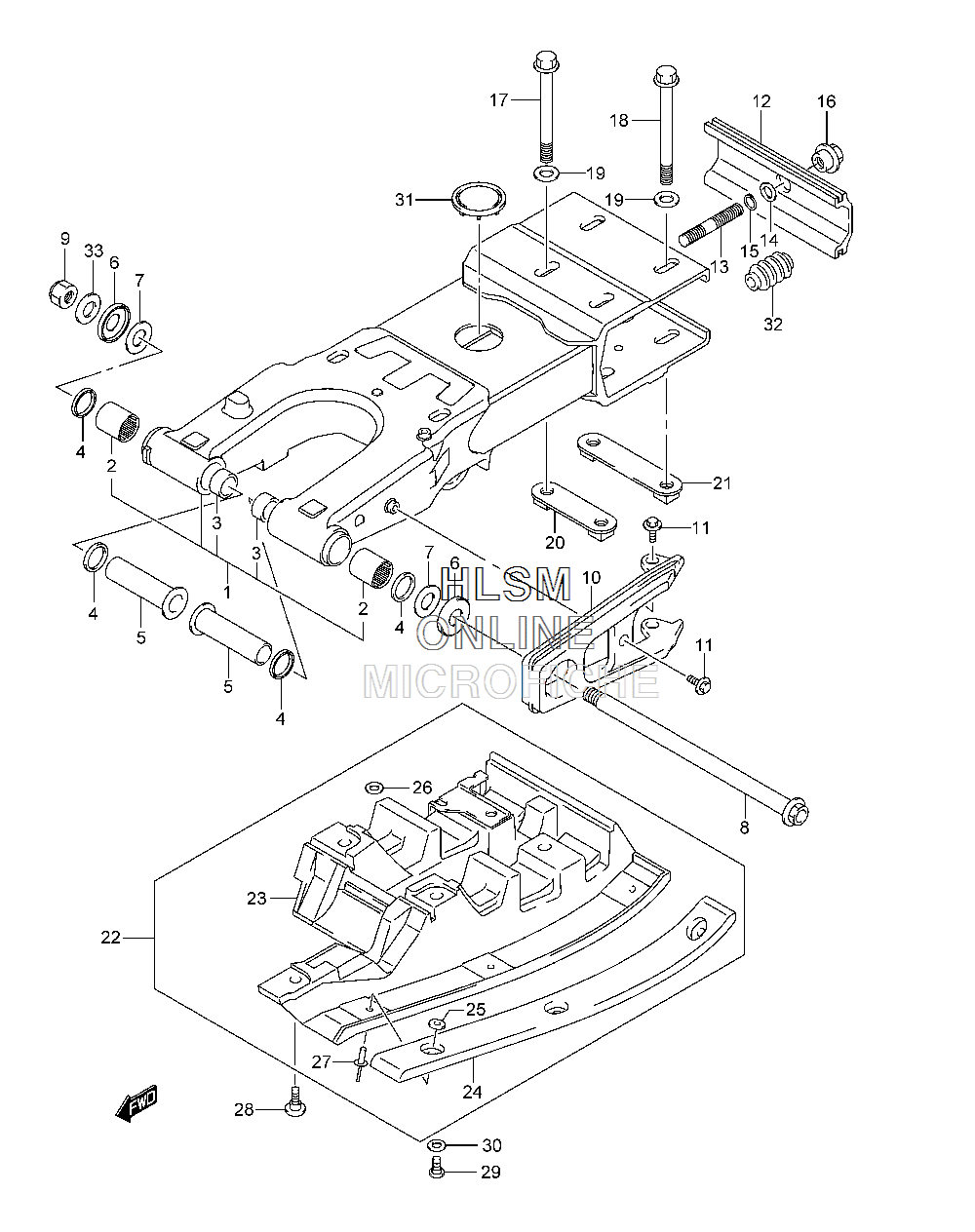

SUSPENSION - REAR SWING ARM для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска`
-
№АртикулНазвание
-
161101-07840 SWINGINGARM SET, REARSWINGINGARM SET, REAR
-
209263-22017 ...BEARING (22X29X30)...BEARING (22X29X30)
-
361261-07G00 ...BUSH, REAR SWINGING ARM PIVOT...BUSH, REAR SWINGING ARM PIVOT
-
409285-22001 OIL SEAL (22X29X4)OIL SEAL (22X29X4)
-
561252-07G00 SPACERSPACER
-
661262-28C10 COVER, PIVOT DUSTCOVER, PIVOT DUST
-
708211-17341 WASHERWASHER
-
861211-33H00 SHAFT, PIVOTSHAFT, PIVOT
-
909159-16007 NUTNUT
-
1061273-07G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1109116-06192 BOLT (6X20)BOLT (6X20)
-
1261421-07G00 PLATE, CHAIN ADJUSTERPLATE, CHAIN ADJUSTER
-
1309108-12014 STUD BOLTSTUD BOLT
-
1409160-20081 WASHER (20X26X1)WASHER (20X26X1)
-
1508331-3120A CIRCLIPCIRCLIP
-
1661422-07G00 NUT, CHAIN ADJUSTERNUT, CHAIN ADJUSTER
-
1709103-12074 BOLT (12X121)BOLT (12X121)
-
1809103-12075 BOLT (12X112)BOLT (12X112)
-
1909160-12103 WASHER (12...5X30X3)WASHER (12...5X30X3)
-
2061470-07G10 WASHER, AXLE HOUSING SET FRONTWASHER, AXLE HOUSING SET FRONT
-
2161480-07G10 WASHER, AXLE HOUSING SET REARWASHER, AXLE HOUSING SET REAR
-
2261305-07G10 GUARD SET, SWINGINGARM UNDERGUARD SET, SWINGINGARM UNDER
-
2361391-07G10 ...GUARD, SWINGINGARM UNDER...GUARD, SWINGINGARM UNDER
-
2461396-07G20 ...BUFFER, SWGARM GUARD...BUFFER, SWGARM GUARD
-
2509160-04027 ...WASHER (4.9X15X1.2)...WASHER (4.9X15X1.2)
-
2609160-05049 ...WASHER (5X10X1.0)...WASHER (5X10X1.0)
-
2709229-04048 ...RIVET...RIVET
-
2861393-09F10 BOLT, GUARDBOLT, GUARD
-
2909106-08076 BOLT (8X15)BOLT (8X15)
-
3008322-0110B WASHERWASHER
-
3161222-05A01 CAP, RR SWINGINGARMCAP, RR SWINGINGARM
-
3261425-07G00 BOOT, CHAIN ADJUSTER BOLTBOOT, CHAIN ADJUSTER BOLT
-
3309160-16031 WASHER (16.2X30X2.6)WASHER (16.2X30X2.6)
