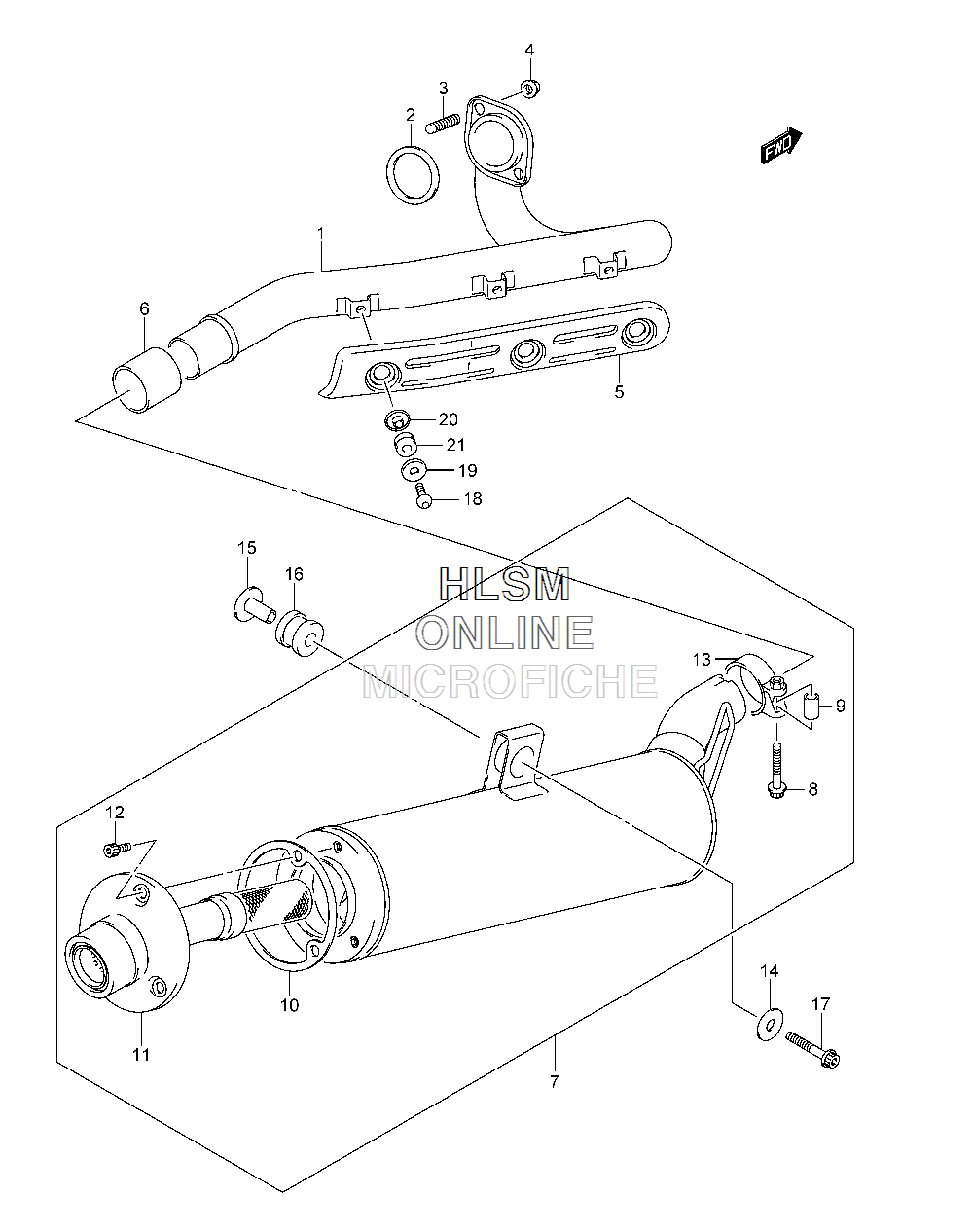

MUFFLER для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска`
-
№АртикулНазвание
-
114150-33H00 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-29E02 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
301421-0825A STUD BOLTSTUD BOLT
-
408319-3108B NUTNUT
-
514180-33H00 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
614771-07G00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
714310-33H00 BODY, MUFFLERBODY, MUFFLER
-
807120-0840B ...BOLT...BOLT
-
914424-07G01 ...SPACER...SPACER
-
1014773-29F00 ...GASKET...GASKET
-
1114850-07G11 ...ARRESTER...ARRESTER
-
1209106-06068 ...BOLT (6X10)...BOLT (6X10)
-
1314459-07G00 ...CLAMP...CLAMP
-
1409160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
1509180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
1609320-12071 CUSHION, MUFFLERCUSHION, MUFFLER
-
1707120-0840B BOLTBOLT
-
1809139-06139 SCREW (6X16)SCREW (6X16)
-
1914184-07G00 WASHER, EXHAUST PIPE COVERWASHER, EXHAUST PIPE COVER
-
2014185-07G00 SPACER, EXHAUST PIPE COVERSPACER, EXHAUST PIPE COVER
-
2109320-08069 CUSHIONCUSHION
