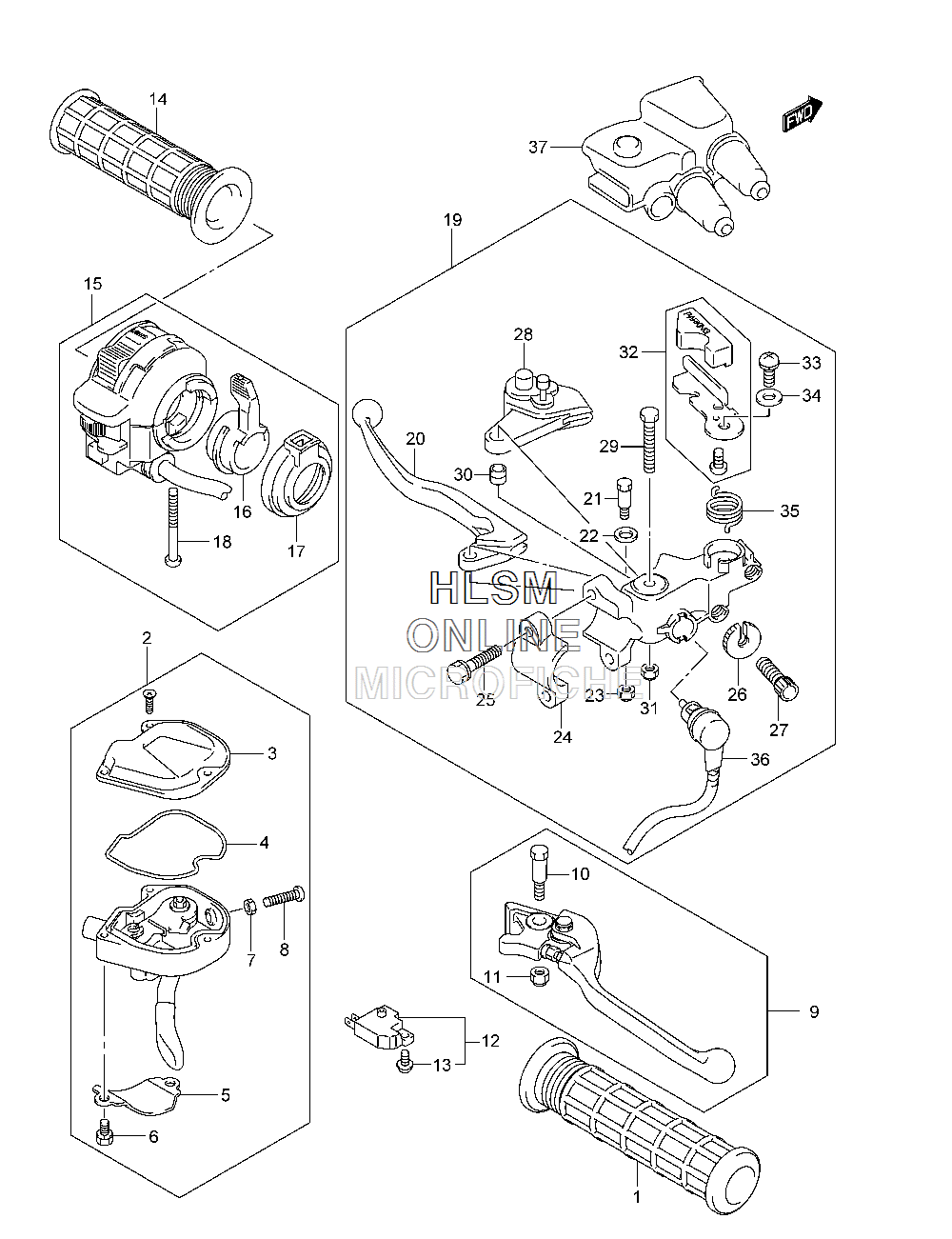

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска`
-
№АртикулНазвание
-
157211-03G10 GRIPGRIP
-
257100-27H01 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357121-27H00 ...CAP...CAP
-
457157-27H00 ...GASKET...GASKET
-
557126-07G00 ...HOLDER...HOLDER
-
657127-07G00 ...BOLT...BOLT
-
708310-0005B ...NUT...NUT
-
802112-0520B ...SCREW...SCREW
-
957300-45G00 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
1057431-04F00 ...BOLT, PIVOT...BOLT, PIVOT
-
1157433-09F00 ...NUT...NUT
-
1257460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1357465-17C00 ...SCREW...SCREW
-
1457211-03G10 GRIPGRIP
-
1537400-33H00 SWITCH ASSY, HANDLE LHSWITCH ASSY, HANDLE LH
-
1637571-19B01 ...LEVER, CHOKE...LEVER, CHOKE
-
1737576-19B01 ...COVER, CHOKE...COVER, CHOKE
-
1802112-0545B ...SCREW...SCREW
-
1957500-33H00 LEVER SET, CLUTCHLEVER SET, CLUTCH
-
2057621-45G00 ...LEVER...LEVER
-
2157513-07G00 ...BOLT, PIVOT...BOLT, PIVOT
-
2257432-07G00 ...WASHER...WASHER
-
2308319-2106B ...NUT...NUT
-
2457512-07G00 ...HOLDER...HOLDER
-
2501547-0620B ...BOLT...BOLT
-
2657442-07G00 ...NUT, ADJUSTER...NUT, ADJUSTER
-
2757441-45C00 ...BOLT, ADJUSTER...BOLT, ADJUSTER
-
2857800-33810 ...LOCK SET, PARKING LOCK...LOCK SET, PARKING LOCK
-
2957431-33H00 ...BOLT, PARKING LOCK...BOLT, PARKING LOCK
-
3057623-07G00 ...SPACER...SPACER
-
3108319-2106B ...NUT...NUT
-
3257700-07850 ...KNOB SET, PARKING...KNOB SET, PARKING
-
3357619-07G00 ...SCREW, PARKING PLATE...SCREW, PARKING PLATE
-
3457618-07G00 ...WASHER...WASHER
-
3557624-07G00 ...SPRING, RETURN...SPRING, RETURN
-
3657560-07G10 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
3757541-07G00 COVER, LEVERCOVER, LEVER
