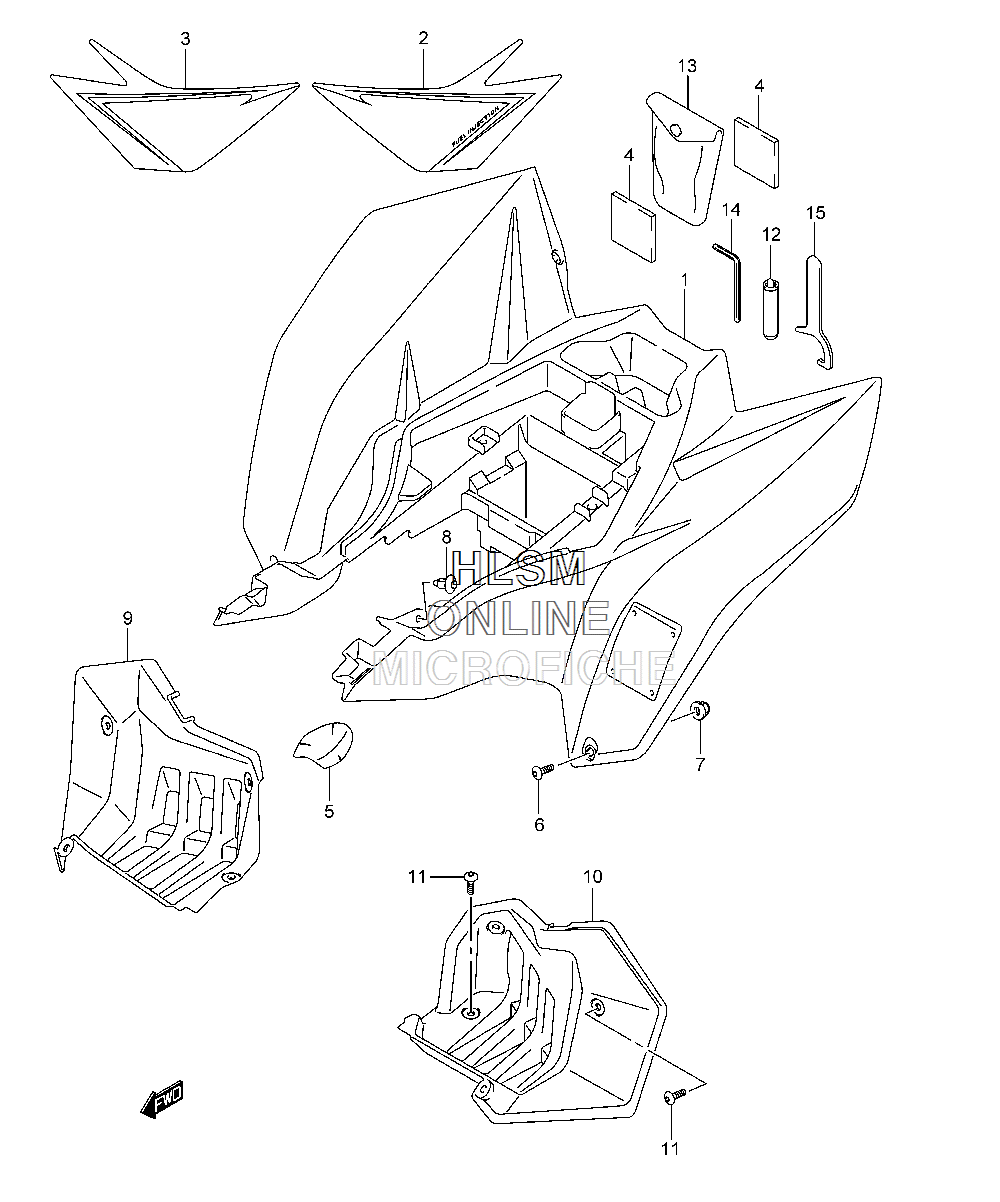

FENDER - REAR для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска`
-
№АртикулНазвание
-
163111-33H00-30H FENDER, REAR (WHITE)FENDER, REAR (WHITE)
-
163111-33H00-019 FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
268175-33H10-HAP TAPE, RIGHT (FOR WHITE)TAPE, RIGHT (FOR WHITE)
-
268175-33H10-HCM TAPE, RIGHT (FOR YELLOW)TAPE, RIGHT (FOR YELLOW)
-
368176-33H10-HAP TAPE, LEFT (FOR WHITE)TAPE, LEFT (FOR WHITE)
-
368176-33H10-HCM TAPE, LEFT (FOR YELLOW)TAPE, LEFT (FOR YELLOW)
-
433652-20C00 CUSHIONCUSHION
-
563261-33H00 SHIELDSHIELD
-
609139-06158 SCREW (6X16)SCREW (6X16)
-
708319-3106A NUTNUT
-
809409-07333 CLIPCLIP
-
963331-33H00-291 MUDGUARD, RIGHT (BLACK)MUDGUARD, RIGHT (BLACK)
-
1063341-33H00-291 MUDGUARD, LEFT (BLACK)MUDGUARD, LEFT (BLACK)
-
1109139-06158 SCREW (6X16)SCREW (6X16)
-
1296200-18A02 GAUGE ASSY, AIRGAUGE ASSY, AIR
-
1309800-21046 TOOL ASSYTOOL ASSY
-
1409816-00059 HEXAGON SPANNER, 5HEXAGON SPANNER, 5
-
1509822-00003 CLAMP, WRENCHCLAMP, WRENCH
