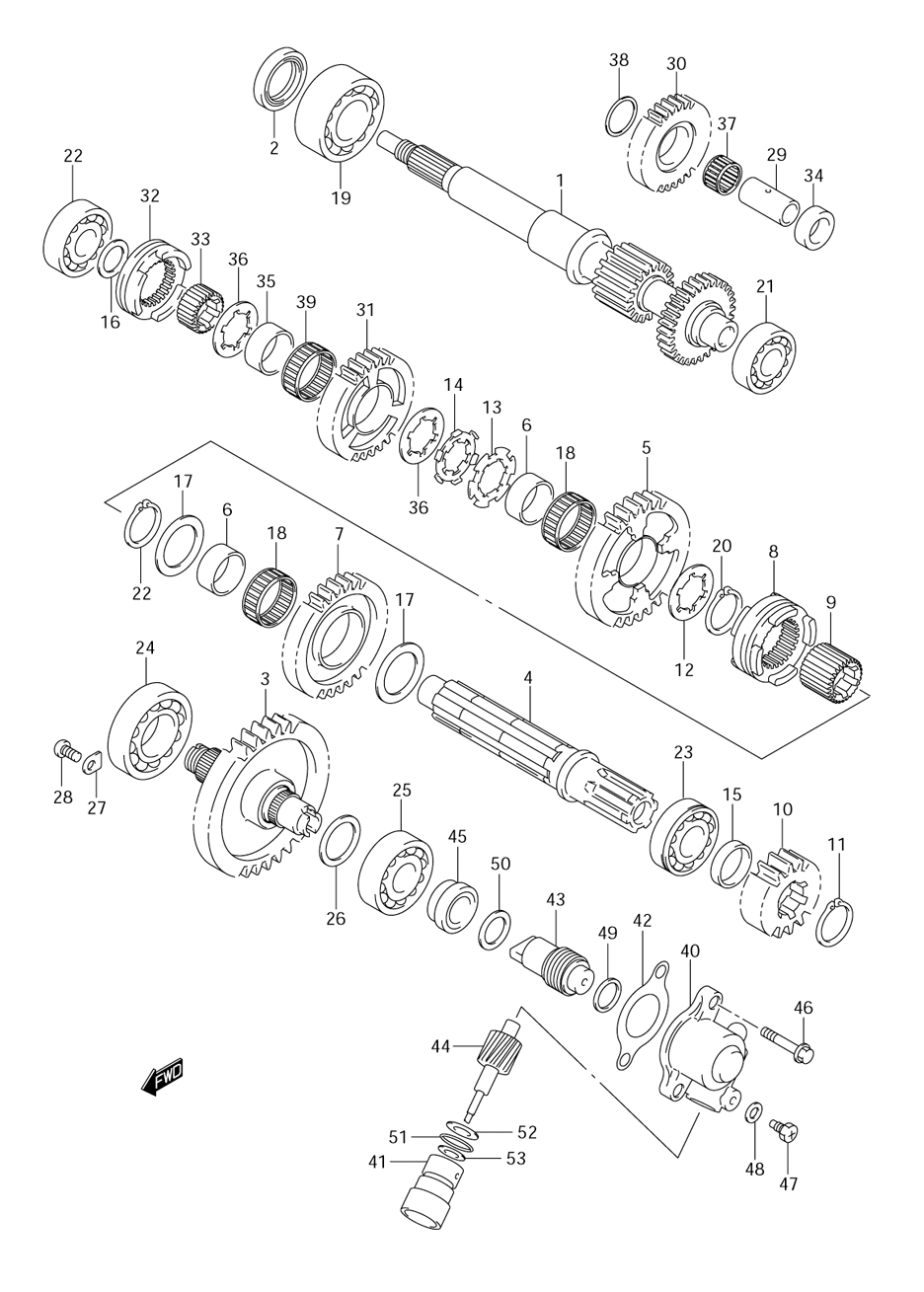

TRANSMISSION (2) для Suzuki LT-A400 KINGQUAD - 2009 года выпуска`

№

Артикул

Название
1

29111-38F10 SHAFT, DRIVE (NO. OF TEETH: 24/16)

SHAFT, DRIVE (NO. OF TEETH: 24/16)

45 340 ₽
2

12281-87J00 SEAL, DRIVE SHAFT

SEAL, DRIVE SHAFT

2 820 ₽
3

29120-27H00 SHAFT, SUB T/M OUTPUT

SHAFT, SUB T/M OUTPUT

0 ₽
4

29131-27H00 SHAFT, SUB T/M COUNTER

SHAFT, SUB T/M COUNTER

17 060 ₽
5

29311-09F51 GEAR, SUB T/M DRIVEN LOW 40T

GEAR, SUB T/M DRIVEN LOW 40T

26 000 ₽
6

29315-09F51 BUSH, SUB T/M DRIVEN

BUSH, SUB T/M DRIVEN

4 090 ₽
7

29321-09F51 GEAR, SUB T/M DRIVEN HIGH 33T

GEAR, SUB T/M DRIVEN HIGH 33T

24 690 ₽
8

29331-38F10 DOG, SUB T/M SELECT

DOG, SUB T/M SELECT

12 060 ₽
9

29332-38F10 SPACER, SUB T/M SELECT

SPACER, SUB T/M SELECT

0 ₽
10

29411-38F00 GEAR, SUB T/M DRIVE NO.2 19T

GEAR, SUB T/M DRIVE NO.2 19T

11 140 ₽
11

08331-3125A CIRCLIP SUB DRIVE NO.2

CIRCLIP SUB DRIVE NO.2

0 ₽
12

09167-25017 WASHER, DRIVEN GEAR LOW

WASHER, DRIVEN GEAR LOW

540 ₽
13

09167-25013 WASHER, LOCK

WASHER, LOCK

470 ₽
14

09169-25001 WASHER, LOCK

WASHER, LOCK

390 ₽
15

09180-25097 SPACER (25X30X7)

SPACER (25X30X7)

1 410 ₽
16

09181-20195 WASHER, SUB COUNTER R

WASHER, SUB COUNTER R

440 ₽
17

09181-25251 WASHER, DRIVEN GEAR HIGH

WASHER, DRIVEN GEAR HIGH

540 ₽
18

09263-30018 BEARING, SUB T/M GEAR

BEARING, SUB T/M GEAR

3 610 ₽
19

08113-62060 BEARING, DRIVE SHAFT RIGHT HAND

BEARING, DRIVE SHAFT RIGHT HAND

4 810 ₽
20

09380-25003 CIRCLIP, SUB T/M GEAR

CIRCLIP, SUB T/M GEAR

530 ₽
21

09262-20069 BEARING, DRIVE SHAFT LEFT HAND

BEARING, DRIVE SHAFT LEFT HAND

4 070 ₽
22

09262-20073 BEARING, SUB T/M COUNTER RIGHT HAND

BEARING, SUB T/M COUNTER RIGHT HAND

4 070 ₽
23

09262-25003 BEARING, SUB T/M COUNTER LEFT HAND

BEARING, SUB T/M COUNTER LEFT HAND

4 340 ₽
24

09262-35038 BEARING, SUB T/M OUTPUT

BEARING, SUB T/M OUTPUT

8 060 ₽
25

09262-20073 BEARING, SUB T/M OUTPUT LEFT HAND

BEARING, SUB T/M OUTPUT LEFT HAND

4 070 ₽
26

09181-20251 WASHER, SUB T/M DRIVEN

WASHER, SUB T/M DRIVEN

480 ₽
27

24741-21A00 RETAINER, BEARING

RETAINER, BEARING

480 ₽
28

09125-06110 SCREW, RETAINER (6X12)

SCREW, RETAINER (6X12)

350 ₽
29

24551-38F00 SHAFT, REVERSE IDLE

SHAFT, REVERSE IDLE

0 ₽
30

24561-27H00 GEAR, REVERSE IDLE (NO. OF TEETH: 28)

GEAR, REVERSE IDLE (NO. OF TEETH: 28)

16 200 ₽
31

24571-27H00 GEAR, REVERSE DRIVEN (NO. OF TEETH: 34)

GEAR, REVERSE DRIVEN (NO. OF TEETH: 34)

17 040 ₽
32

24581-27H00 DOG, REVERSE GEAR SLIDING

DOG, REVERSE GEAR SLIDING

12 060 ₽
33

24582-38F10 SPACER, REVERSE SLIDING

SPACER, REVERSE SLIDING

4 820 ₽
34

24562-27H00 SPACER, REVERSE IDLE GEAR

SPACER, REVERSE IDLE GEAR

2 420 ₽
35

29315-09F51 BUSH, REVERSE DRIVEN GEAR

BUSH, REVERSE DRIVEN GEAR

4 090 ₽
36

09167-25017 WASHER, REVERSE DRIVEN GEAR

WASHER, REVERSE DRIVEN GEAR

540 ₽
37

09263-20060 BEARING, REVERSE IDLE GEAR

BEARING, REVERSE IDLE GEAR

2 970 ₽
38

09181-20195 WASHER, REVERSE IDLE GEAR

WASHER, REVERSE IDLE GEAR

440 ₽
39

09263-30018 BEARING, REVERSE DRIVEN GEAR

BEARING, REVERSE DRIVEN GEAR

3 610 ₽
40

26441-19B01 HOUSING, ODOMETER GEAR

HOUSING, ODOMETER GEAR

9 250 ₽
41

26442-19B00 SLEEVE

SLEEVE

5 770 ₽
42

26451-19B12 GASKET

GASKET

860 ₽
43

26461-38F00 GEAR, DRIVE (NO. OF TEETH: 9)

GEAR, DRIVE (NO. OF TEETH: 9)

0 ₽
44

26471-38F00 GEAR, DRIVE (NO. OF TEETH: 15)

GEAR, DRIVE (NO. OF TEETH: 15)

5 990 ₽
45

26481-19B00 SPACER

SPACER

3 460 ₽
46

09103-06201 BOLT (6X20)

BOLT (6X20)

420 ₽
47

09135-06501 BOLT (6X10)

BOLT (6X10)

530 ₽
48

09168-06004 WASHER (6.2X11X1.2)

WASHER (6.2X11X1.2)

250 ₽
49

09181-15111 WASHER (15X20X1.0)

WASHER (15X20X1.0)

420 ₽
50

09181-17139 WASHER (17X24X1.0)

WASHER (17X24X1.0)

520 ₽
51

09280-17004 O RING (DIAMETER: 1.9,INSIDE DIAMETER: 16.6)

O RING (DIAMETER: 1.9,INSIDE DIAMETER: 16.6)

530 ₽
52

09283-05001 SEAL (5X12X8)

SEAL (5X12X8)

1 590 ₽
53

08211-08151 WASHER

WASHER

330 ₽
