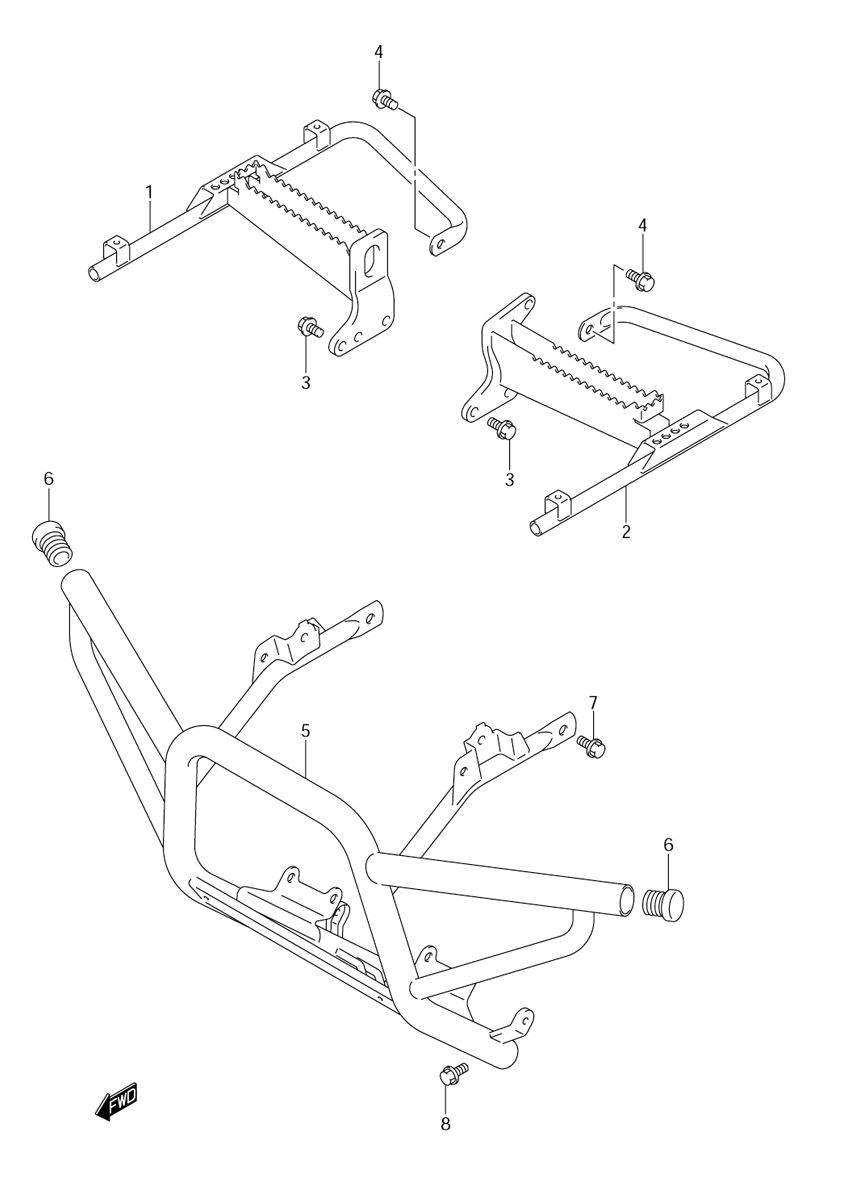

FOOTREST W/ BUMBER для Suzuki LT-A400 KINGQUAD - 2009 года выпуска
-
№АртикулНазвание
-
143510-27H00 FOOTREST, RIGHT HANDFOOTREST, RIGHT HAND
-
243520-27H10 FOOTREST, LEFT HANDFOOTREST, LEFT HAND
-
309103-10275 BOLT, LEFT HANDBOLT, LEFT HAND
-
401550-0816A BOLT, REARBOLT, REAR
-
546710-27H00-019 GRIP, FRONT (BLACK) (019)GRIP, FRONT (BLACK) (019)
-
643978-38F00 CAPCAP
-
701550-0816A BOLT, UPPERBOLT, UPPER
-
809103-08441 BOLT, LOWERBOLT, LOWER
