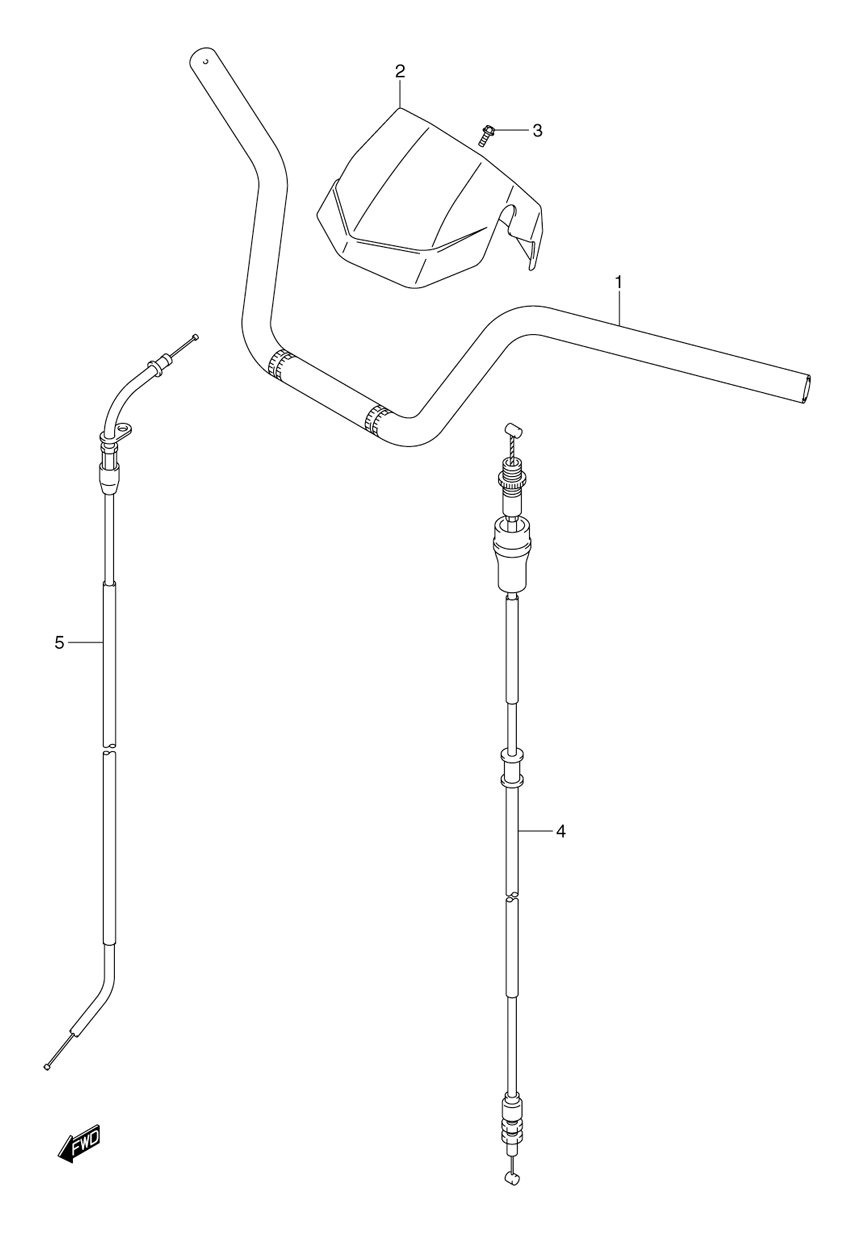

HANDLEBAR W/ CABLES для Suzuki LT-A400 KINGQUAD - 2009 года выпуска`
-
№АртикулНазвание
-
156111-38F20 HANDLEBARHANDLEBAR
-
256171-27H00 COVER, STEERING HEADCOVER, STEERING HEAD
-
309111-06054 BOLTBOLT
-
458300-27H00 CABLE ASSEMBLY, THROTTLECABLE ASSEMBLY, THROTTLE
-
558410-27H00 CABLE, STARTERCABLE, STARTER
