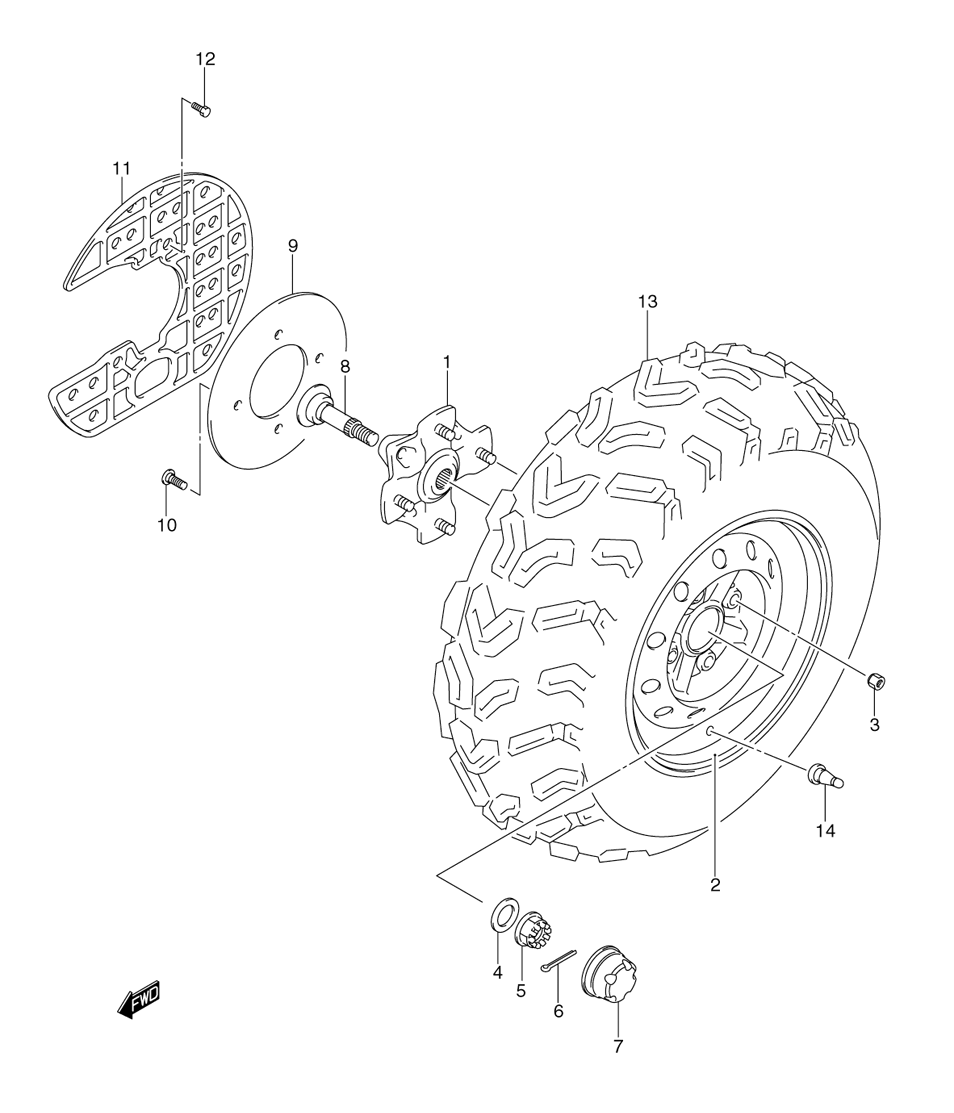

WHEEL - FRONT для Suzuki LT-A400 KINGQUAD - 2009 года выпуска
-
№АртикулНазвание
-
154110-27H00 HUB, FRONT WHEELHUB, FRONT WHEEL
-
255310-38F30-YL8 RIM, FRONT WHEEL (12X6.0AT) (SILVER) (YL8)RIM, FRONT WHEEL (12X6.0AT) (SILVER) (YL8)
-
309140-10021 NUTNUT
-
409164-18004 WASHERWASHER
-
509141-18010 NUT, HUBNUT, HUB
-
604111-4035A PIN, COTTERPIN, COTTER
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
854711-38F00 AXLE, FRONTAXLE, FRONT
-
959211-38F20 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1009106-08160 BOLT, BRAKE DISCBOLT, BRAKE DISC
-
1159231-27H00 COVER, FRONT DISCCOVER, FRONT DISC
-
1209139-06158 BOLTBOLT
-
1355110-38FC0 TIRE, FRONTTIRE, FRONT
-
1443130-24A00 VALVE ASSEMBLY, WHEEL RIM (TR412)VALVE ASSEMBLY, WHEEL RIM (TR412)
