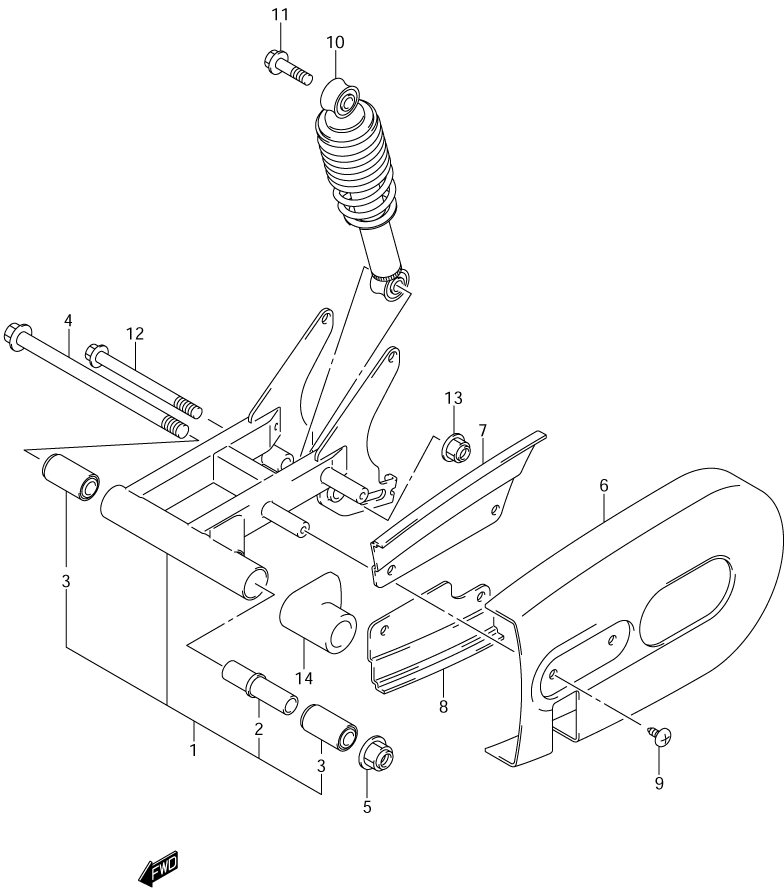

SUSPENSION - REAR SWING ARM для Suzuki LT-A50 QUADSPORT - 2003 года выпуска`
-
№АртикулНазвание
-
161000-43F00-019 SWINGINGARM ASSY., (REAR/BLACK)SWINGINGARM ASSY., (REAR/BLACK)
-
261280-43F00 ...SPACER...SPACER
-
309319-12018 ...BUSH...BUSH
-
461211-43F00 SHAFT, PIVOTSHAFT, PIVOT
-
508319-31128 NUTNUT
-
661310-43F00 CASE, CHAINCASE, CHAIN
-
761313-43F00 CASE, CHAIN INNER UPPERCASE, CHAIN INNER UPPER
-
861314-43F00 CASE, CHAIN INNER LOWERCASE, CHAIN INNER LOWER
-
909139-06083 SCREWSCREW
-
1062100-43F00-37W ABSORBER ASSY., SHOCK (REAR/RED)ABSORBER ASSY., SHOCK (REAR/RED)
-
1109103-10019 BOLT UPPERBOLT UPPER
-
1209103-10318 BOLT LOWERBOLT LOWER
-
1308319-31103 NUT LOWERNUT LOWER
-
1461273-43F00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
