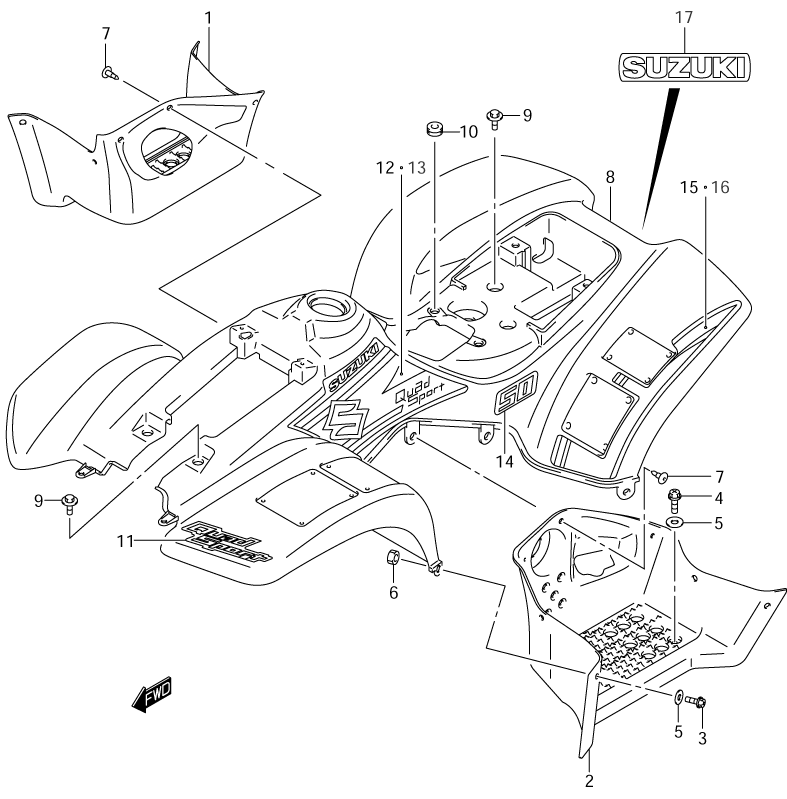

FENDER - FRONT/REAR для Suzuki LT-A50 QUADSPORT - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-43F00-291 FENDER, RIGHT (BLACK)
    FENDER, RIGHT (BLACK)
  • 2
    47211-43F00-291 FENDER, LEFT (BLACK)
    FENDER, LEFT (BLACK)
  • 3
    02142-06203 SCREW
    SCREW
  • 4
    02162-06203 BOLT
    BOLT
  • 5
    09160-06079 WASHER
    WASHER
  • 6
    08319-31063 NUT
    NUT
  • 7
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 8
    47311-43F00-YT9 FENDER, CENTER ( YT9) (RED) (USA)
    FENDER, CENTER ( YT9) (RED) (USA)
  • 8
    47311-43F20-YT9 FENDER, CENTER ( YT9) (RED) (CANADA)
    FENDER, CENTER ( YT9) (RED) (CANADA)
  • 8
    47311-43F00-YU1 FENDER, CENTER (YU1) (YELLOW) (USA)
    FENDER, CENTER (YU1) (YELLOW) (USA)
  • 8
    47311-43F20-YU1 FENDER, CENTER (YU1) (YELLOW) (CANADA)
    FENDER, CENTER (YU1) (YELLOW) (CANADA)
  • 9
    09111-06081 BOLT, CENTER
    BOLT, CENTER
  • 10
    09320-12031 CUSHION
    CUSHION
  • 11
    68131-43FB0-JN6 EMBLEM, "QUAD SPORT" (RED) (FOR YT9) (FOR RED)
    EMBLEM, "QUAD SPORT" (RED) (FOR YT9) (FOR RED)
  • 11
    68131-43FB0-JN5 EMBLEM, "QUAD SPORT" (CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
    EMBLEM, "QUAD SPORT" (CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
  • 12
    68131-43F10-JM9 EMBLEM, CENTER (RIGHT/RED) (FOR YT9) (FOR RED)
    EMBLEM, CENTER (RIGHT/RED) (FOR YT9) (FOR RED)
  • 12
    68131-43F10-GY7 EMBLEM, CENTER (RIGHT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
    EMBLEM, CENTER (RIGHT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
  • 13
    68141-43F10-JM9 EMBLEM, CENTER (LEFT/RED) (FOR YT9) (FOR RED)
    EMBLEM, CENTER (LEFT/RED) (FOR YT9) (FOR RED)
  • 13
    68141-43F10-GY7 EMBLEM, CENTER (LEFT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
    EMBLEM, CENTER (LEFT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
  • 14
    68131-43FC0-JN8 EMBLEM, "50" (RED) (FOR YT9) (FOR RED)
    EMBLEM, "50" (RED) (FOR YT9) (FOR RED)
  • 14
    68131-43FC0-JN7 EMBLEM, "50" (CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
    EMBLEM, "50" (CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
  • 15
    68135-43F00-JN4 TAPE (RIGHT/RED) (FOR YT9) (FOR RED)
    TAPE (RIGHT/RED) (FOR YT9) (FOR RED)
  • 15
    68135-43F00-GY6 TAPE (RIGHT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
    TAPE (RIGHT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
  • 16
    68145-43F00-JN4 TAPE (LEFT/RED) (FOR YT9) (FOR RED)
    TAPE (LEFT/RED) (FOR YT9) (FOR RED)
  • 16
    68145-43F00-GY6 TAPE (LEFT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
    TAPE (LEFT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
  • 17
    68131-43FA0-JN8 EMBLEM, "SUZUKI" (RED) (FOR YT9) (FOR RED)
    EMBLEM, "SUZUKI" (RED) (FOR YT9) (FOR RED)
  • 17
    68131-43FA0-JN7 EMBLEM, "SUZUKI" (CHAMPION YELLO NO.2) (FOR YU1) (FOR YELLOW)
    EMBLEM, "SUZUKI" (CHAMPION YELLO NO.2) (FOR YU1) (FOR YELLOW)
