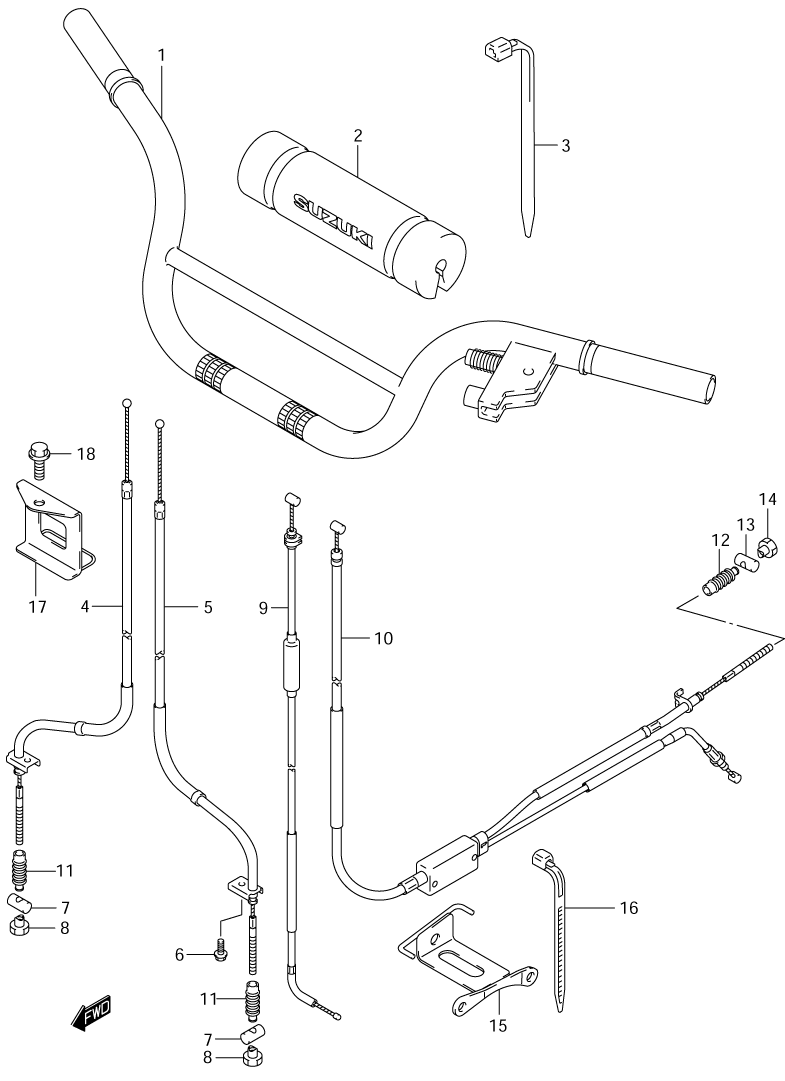

HANDLEBAR W/ CABLES для Suzuki LT-A50 QUADSPORT - 2003 года выпуска`
-
№АртикулНазвание
-
156110-43F00-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
256172-04600 PAD, CROSSPAD, CROSS
-
309407-18401 CLAMPCLAMP
-
458110-43F00 CABLE ASSY., BRAKE (FRONT/RIGHT)CABLE ASSY., BRAKE (FRONT/RIGHT)
-
558120-43F00 CABLE ASSY., BRAKE (FRONT/LEFT)CABLE ASSY., BRAKE (FRONT/LEFT)
-
609106-06076 BOLTBOLT
-
709209-10001 PINPIN
-
809150-05101 NUTNUT
-
958300-43F00 CABLE ASSY., THROTTLECABLE ASSY., THROTTLE
-
1058510-43F00 CABLE ASSY., BRAKE (REAR)CABLE ASSY., BRAKE (REAR)
-
1158553-43F00 BOOTBOOT
-
1258553-43F10 BOOT, BRAKE CABLE (REAR)BOOT, BRAKE CABLE (REAR)
-
1309209-10001 PINPIN
-
1409150-05101 NUTNUT
-
1558570-43F00 PLATE, BRAKE (REAR)PLATE, BRAKE (REAR)
-
1609407-14403 CLAMPCLAMP
-
1758620-43F00 GUIDE, BRAKE CABLE (FRONT)GUIDE, BRAKE CABLE (FRONT)
-
1801550-06123 BOLTBOLT
