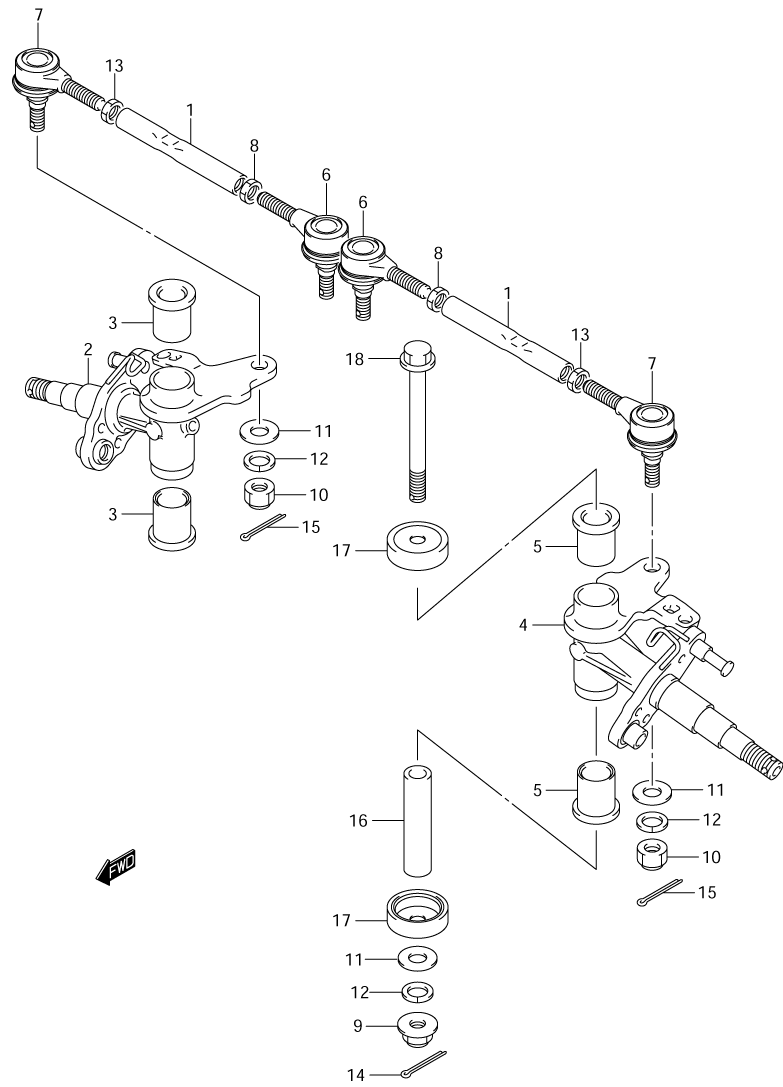

KNUCKLE W/ TIE RODS для Suzuki LT-A50 QUADSPORT - 2003 года выпуска
-
№АртикулНазвание
-
151281-43F00 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-43F00 KNUCKLE ARM (RIGHT)KNUCKLE ARM (RIGHT)
-
351236-40B00 ...BUSH...BUSH
-
451240-43F00 KNUCKLE ARM (LEFT)KNUCKLE ARM (LEFT)
-
551236-40B00 ...BUSH...BUSH
-
651260-02C00 ROD END THREAD (RIGHT)ROD END THREAD (RIGHT)
-
751270-43F00 ROD END THREAD (LEFT)ROD END THREAD (LEFT)
-
809140-10043 NUT THREAD (RIGHT)NUT THREAD (RIGHT)
-
909159-10027 NUTNUT
-
1008319-21103 NUTNUT
-
1109160-10126 WASHERWASHER
-
1209162-10008 LOCK WASHERLOCK WASHER
-
1309140-10027 NUT, TIE ROD THREAD (LEFT)NUT, TIE ROD THREAD (LEFT)
-
1404111-20208 COTTER PINCOTTER PIN
-
1504111-20208 COTTER PINCOTTER PIN
-
1651251-40B00 SPACER, KINGPINSPACER, KINGPIN
-
1751255-18900 DUST SEALDUST SEAL
-
1851256-40B00 BOLT, KNUCKLE ARMBOLT, KNUCKLE ARM
