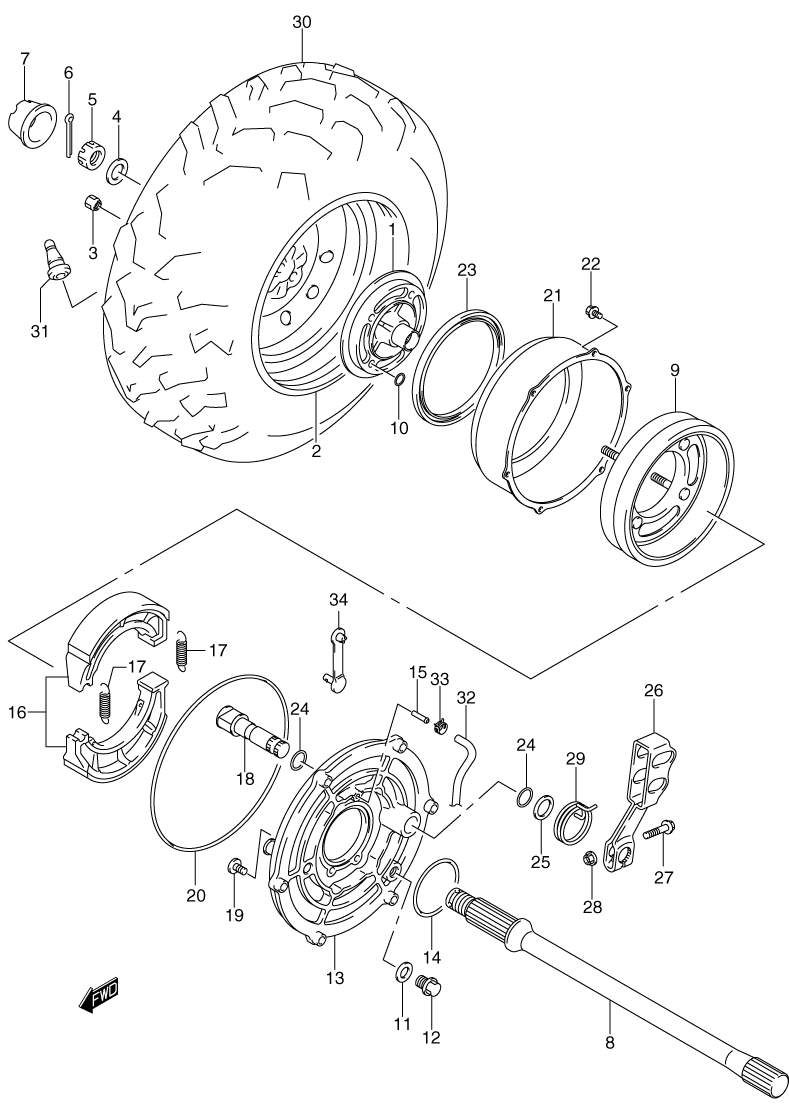

WHEEL - RIGHT REAR W/ AXLE - BRAKE для Suzuki LT-F400FK EIGER 4x4 MANUAL - 2002 года выпуска`
-
№АртикулНазвание
-
164111-38F30 HUB, WHEEL (REAR/RIGHT)HUB, WHEEL (REAR/RIGHT)
-
265310-38F00-YL8 RIM, WHEEL (12X7.5AT) (REAR/SILVER)RIM, WHEEL (12X7.5AT) (REAR/SILVER)
-
309140-10021 NUTNUT
-
409164-18004 WASHERWASHER
-
509141-18008 NUT, HUBNUT, HUB
-
604111-40408 COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
864711-38F10 AXLE (REAR/RIGHT)AXLE (REAR/RIGHT)
-
964120-38F00 DRUM, BRAKEDRUM, BRAKE
-
1009280-10016 O-RING (ID:9.8,D:1.90)O-RING (ID:9.8,D:1.90)
-
1109161-10007 WASHER, DRAIN PLUGWASHER, DRAIN PLUG
-
1209247-10008 PLUG, DRAINPLUG, DRAIN
-
1364210-38F00 PANEL, BRAKE ANCHORPANEL, BRAKE ANCHOR
-
1409280-63001 O-RING, PANELO-RING, PANEL
-
1509364-04004 UNION, PANELUNION, PANEL
-
1664400-38830 SHOE SET, BRAKESHOE SET, BRAKE
-
1755420-30000 SPRING, SHOESPRING, SHOE
-
1864440-09F00 CAM, BRAKE (REAR)CAM, BRAKE (REAR)
-
1909106-08161 BOLT, PANEL (8X18)BOLT, PANEL (8X18)
-
2009280-00038 O-RING, PANELO-RING, PANEL
-
2164123-38F00 COVER, BRAKE (REAR)COVER, BRAKE (REAR)
-
2201547-06123 BOLTBOLT
-
2364124-38F00 DUST SEAL, DRUM COVERDUST SEAL, DRUM COVER
-
2464443-18A00 O-RING, CAM (15.9X19.7X2)O-RING, CAM (15.9X19.7X2)
-
2509160-16033 WASHERWASHER
-
2664451-09F00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
2701550-06353 BOLTBOLT
-
2808316-10063 NUTNUT
-
2964484-38F00 SPRING, CAM LEVERSPRING, CAM LEVER
-
3065110-38F00 TIRE (REAR)TIRE (REAR)
-
3143130-24A00 VALVE ASSY., WHEEL RIM,TR412VALVE ASSY., WHEEL RIM,TR412
-
3209352-40703-00B HOSE, BREATHERHOSE, BREATHER
-
3309401-06405 CLIP, HOSECLIP, HOSE
-
3409407-03401 CLAMPCLAMP
