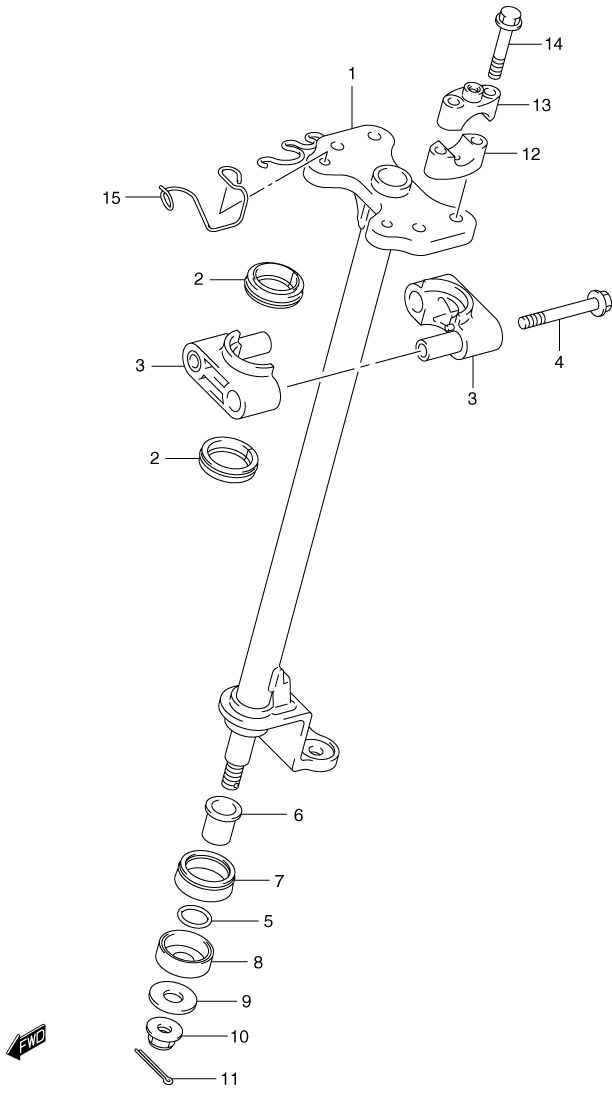

STEERING SHAFT для Suzuki LT-F400FK EIGER 4x4 MANUAL - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    51650-38F00 SHAFT, STEERING
    SHAFT, STEERING
  • 2
    51678-24500 DUST SEAL, STEERING HOLDER (27X38X8.5)
    DUST SEAL, STEERING HOLDER (27X38X8.5)
  • 3
    51670-24500 HOLDER, STEERING SHAFT
    HOLDER, STEERING SHAFT
  • 4
    01550-08753 BOLT
    BOLT
  • 5
    09280-17003 O-RING (ID:16.8,D:3.10)
    O-RING (ID:16.8,D:3.10)
  • 6
    51661-19B10 BUSH, STEERING SHAFT LOWER (17X26X36.9)
    BUSH, STEERING SHAFT LOWER (17X26X36.9)
  • 7
    51662-19A01 DUST SEAL, STEERING SHAFT (30X40X14.4)
    DUST SEAL, STEERING SHAFT (30X40X14.4)
  • 8
    51663-24500 DUST SEAL, STEERING (LOWER) (12.2X38X12)
    DUST SEAL, STEERING (LOWER) (12.2X38X12)
  • 9
    09160-12073 WASHER (12.5X32X2.3)
    WASHER (12.5X32X2.3)
  • 10
    08319-31123 NUT
    NUT
  • 11
    04111-20208 COTTER PIN
    COTTER PIN
  • 12
    56211-09F00-291 CLAMP, HANDLEBAR (BLACK/LOWER)
    CLAMP, HANDLEBAR (BLACK/LOWER)
  • 13
    56211-29900-291 CLAMP, HANDLEBAR (BLACK/UPPER_
    CLAMP, HANDLEBAR (BLACK/UPPER_
  • 14
    01550-08553 BOLT
    BOLT
  • 15
    59243-38F00 GUIDE, BRAKE HOSE NO.1 (FRONT)
    GUIDE, BRAKE HOSE NO.1 (FRONT)
