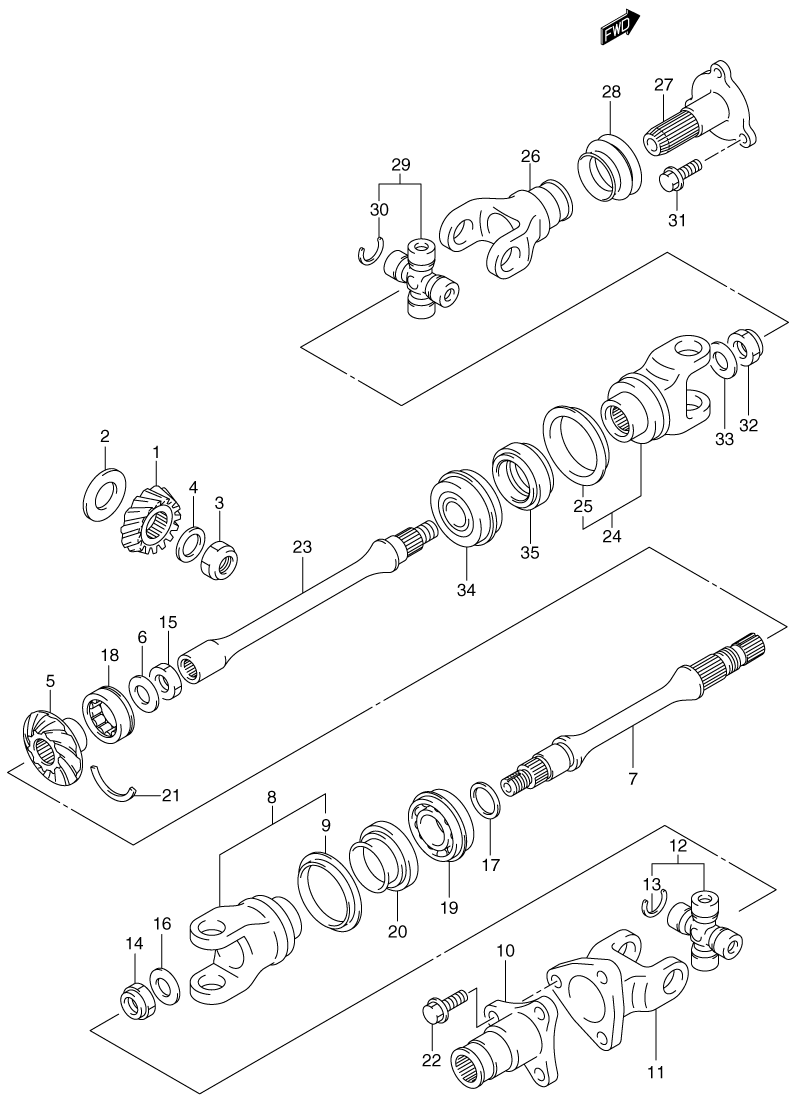

DRIVESHAFT - REAR для Suzuki LT-F400FK EIGER 4x4 MANUAL - 2002 года выпуска

№

Артикул

Название
1

24911-44D11 GEAR, SEC DRIVE BEVEL (NT:15)

GEAR, SEC DRIVE BEVEL (NT:15)

32 520 ₽
2

24935-19810 SHIM SET, SEC DRIVE BEVEL GEAR (T:0.25/0.30/0.35/0.90/0.95/1.05/1.10/1.15)

SHIM SET, SEC DRIVE BEVEL GEAR (T:0.25/0.30/0.35/0.90/0.95/1.05/1.10/1.15)

19 120 ₽
3

09140-20012 NUT, SEC DRIVE BEVEL GEAR

NUT, SEC DRIVE BEVEL GEAR

610 ₽
4

09181-20223 WASHER, SEC DRIVE BEVEL GEAR (20.1X32X10)

WASHER, SEC DRIVE BEVEL GEAR (20.1X32X10)

480 ₽
5

24921-44D10 GEAR, SEC DRIVEN BEVEL

GEAR, SEC DRIVEN BEVEL

38 930 ₽
6

08211-22362 WASHER, SEC DRIVEN GEAR

WASHER, SEC DRIVEN GEAR

0 ₽
7

24971-38F50 SHAFT, SEC DRIVEN OUTPUT (REAR)

SHAFT, SEC DRIVEN OUTPUT (REAR)

40 590 ₽
8

27130-03G00 YOKE, DRIVE OUTPUT (REAR)

YOKE, DRIVE OUTPUT (REAR)

27 540 ₽
9

27592-38F00 ...PLATE, OUTPUT

...PLATE, OUTPUT

1 720 ₽
10

27150-38F00 SHAFT, PROPELLER (REAR)

SHAFT, PROPELLER (REAR)

20 060 ₽
11

27161-38F20 YOKE, PROP SHAFT JOINT (REAR)

YOKE, PROP SHAFT JOINT (REAR)

20 060 ₽
12

27200-19810 JOINT SET, UNIVERSAL

JOINT SET, UNIVERSAL

14 850 ₽
13

09380-20016 ...CIRCLIP

...CIRCLIP

400 ₽
14

09159-16003 NUT, DRIVE OUTPUT YOKE (REAR)

NUT, DRIVE OUTPUT YOKE (REAR)

600 ₽
15

09159-22005 NUT, SEC DRIVEN GEAR

NUT, SEC DRIVEN GEAR

3 830 ₽
16

09160-16026 WASHER, OUTPUT FRANGE (16X30X3) (REAR)

WASHER, OUTPUT FRANGE (16X30X3) (REAR)

720 ₽
17-1

09181-25051 SHIM, SEC DRIVEN (25X34X0.6)

SHIM, SEC DRIVEN (25X34X0.6)

480 ₽
17-2

09181-25052 SHIM, SEC DRIVEN (25X34X0.65)

SHIM, SEC DRIVEN (25X34X0.65)

480 ₽
17-3

09181-25053 SHIM, SEC DRIVEN (25X34X0.70)

SHIM, SEC DRIVEN (25X34X0.70)

450 ₽
17-4

09181-25054 SHIM, SEC DRIVEN (25X34X0.75)

SHIM, SEC DRIVEN (25X34X0.75)

480 ₽
17-5

09181-25055 SHIM, SEC DRIVEN (25X34X0.80)

SHIM, SEC DRIVEN (25X34X0.80)

0 ₽
17-6

09181-25056 SHIM, SEC DRIVEN (25X34X0.85)

SHIM, SEC DRIVEN (25X34X0.85)

0 ₽
17-7

09181-25057 SHIM, SEC DRIVEN (25X34X0.90)

SHIM, SEC DRIVEN (25X34X0.90)

0 ₽
17-8

09181-25058 SHIM, SEC DRIVEN (25X34X0.95)

SHIM, SEC DRIVEN (25X34X0.95)

480 ₽
17-9

09181-25059 SHIM, SEC DRIVEN (25X34X1.00)

SHIM, SEC DRIVEN (25X34X1.00)

540 ₽
17-10

09181-25060 SHIM, SEC DRIVEN (25X34X1.05)

SHIM, SEC DRIVEN (25X34X1.05)

0 ₽
17-11

09181-25061 SHIM, SEC DRIVEN (25X34X1.10)

SHIM, SEC DRIVEN (25X34X1.10)

530 ₽
17-12

09181-25062 SHIM, SEC DRIVEN (25X34X1.15)

SHIM, SEC DRIVEN (25X34X1.15)

530 ₽
17-13

09181-25063 SHIM, SEC DRIVEN (25X34X1.20)

SHIM, SEC DRIVEN (25X34X1.20)

0 ₽
18

09263-30050 BEARING, SEC DRIVEN GEAR (30X50X17)

BEARING, SEC DRIVEN GEAR (30X50X17)

8 170 ₽
19

09267-25006 BEARING, SEC DRIVEN OUTPUT SFT (REAR) (25X52X20.6)

BEARING, SEC DRIVEN OUTPUT SFT (REAR) (25X52X20.6)

17 810 ₽
20

09283-34008 OIL SEAL, DRIVEN SHAFT (REAR) (34X52X9)

OIL SEAL, DRIVEN SHAFT (REAR) (34X52X9)

3 630 ₽
21

09390-50002 RING, SEC DRIVEN BEARING (MIDDLE)

RING, SEC DRIVEN BEARING (MIDDLE)

440 ₽
22

01550-10203 BOLT, PROP SHAFT (REAR)

BOLT, PROP SHAFT (REAR)

530 ₽
23

24961-38F50 SHAFT, SEC DRIVEN OUTPUT (FRONT)

SHAFT, SEC DRIVEN OUTPUT (FRONT)

33 940 ₽
24

27130-03G00 YOKE, DRIVE OUTPUT (FRONT)

YOKE, DRIVE OUTPUT (FRONT)

27 540 ₽
25

27592-38F00 ...PLATE, OUTPUT

...PLATE, OUTPUT

1 720 ₽
26

27140-03G00 YOKE, PROP SFT JOINT (FRONT)

YOKE, PROP SFT JOINT (FRONT)

21 360 ₽
27

27151-38F50 SHAFT, PROPELLER

SHAFT, PROPELLER

34 310 ₽
28

27153-03G00 BOOT, PROP SHAFT

BOOT, PROP SHAFT

1 900 ₽
29

27200-19810 JOINT SET, UNIVERSAL

JOINT SET, UNIVERSAL

14 850 ₽
30

09380-20016 ...CIRCLIP

...CIRCLIP

400 ₽
31

09103-10310 BOLT, PROPELLER SHAFT

BOLT, PROPELLER SHAFT

540 ₽
32

09159-16003 NUT, YOKE (FRONT)

NUT, YOKE (FRONT)

600 ₽
33

09160-16026 WASHER, DRIVE OUTPUT YOKE (FRONT) (16X30X3)

WASHER, DRIVE OUTPUT YOKE (FRONT) (16X30X3)

720 ₽
34

09262-25131 BEARING, SEC DRIVEN (FRONT) (25X52X15)

BEARING, SEC DRIVEN (FRONT) (25X52X15)

7 270 ₽
35

09283-34008 OIL SEAL (FRONT) (34X52X14)

OIL SEAL (FRONT) (34X52X14)

3 630 ₽
