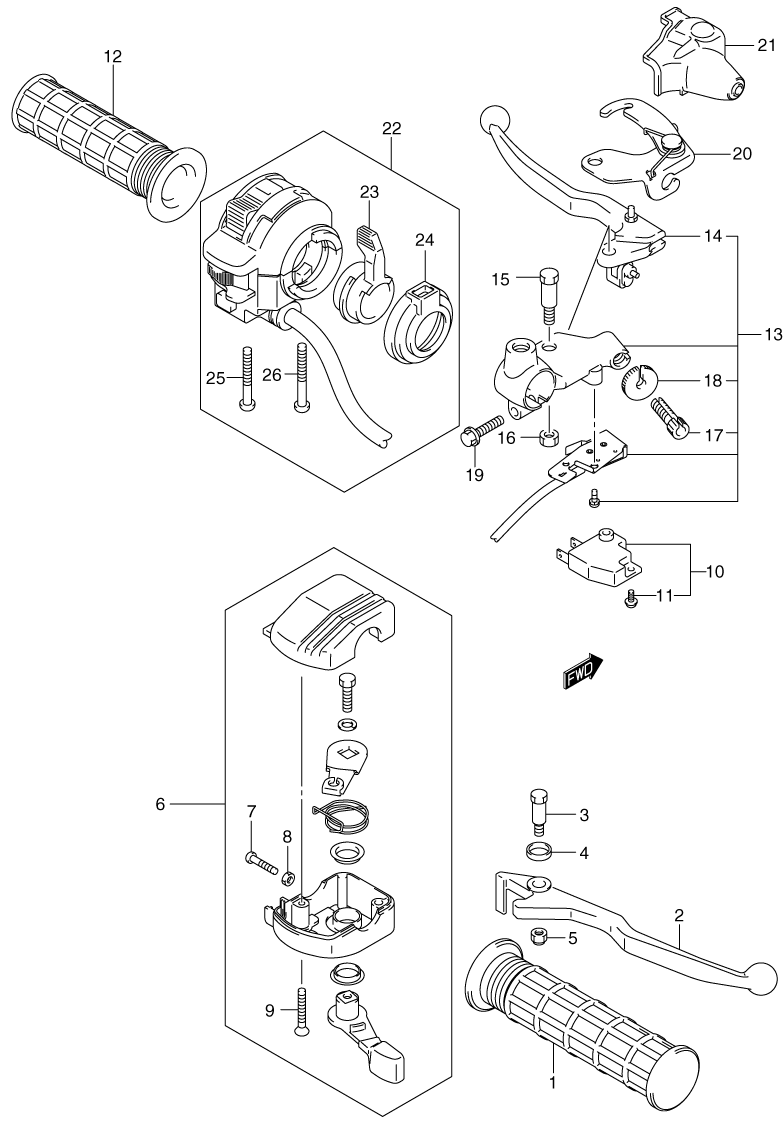

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-F400FK EIGER 4x4 MANUAL - 2002 года выпуска
-
№АртикулНазвание
-
157211-19A03-291 GRIP (BLACK)GRIP (BLACK)
-
257421-39D10 LEVER, BRAKELEVER, BRAKE
-
309111-06075 BOLTBOLT
-
457349-38F00 SPACERSPACER
-
557433-09F00 NUTNUT
-
657100-39DB0 CASE ASSY., THROTTLECASE ASSY., THROTTLE
-
709125-05066 ...SCREW...SCREW
-
809140-05006 ...NUT...NUT
-
902132-05307 ...SCREW...SCREW
-
1057460-17C00 SWITCH ASSY., STOPSWITCH ASSY., STOP
-
1157465-17C00 ...SCREW...SCREW
-
1257211-19A03-291 GRIP (BLACK)GRIP (BLACK)
-
1357500-09F00 LEVER ASSY., BRAKE (REAR)LEVER ASSY., BRAKE (REAR)
-
1457620-09F00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1557431-09F00 ...BOLT, PIVOT...BOLT, PIVOT
-
1608319-21063 ...NUT...NUT
-
1757441-08C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
1857442-08C00 ...NUT, LOCK...NUT, LOCK
-
1901547-06203 ...BOLT...BOLT
-
2057790-09F00 STOPPER, LEVERSTOPPER, LEVER
-
2157541-09F00 COVER, LEVERCOVER, LEVER
-
2237400-09F00 SWITCH ASSY. (LEFT)SWITCH ASSY. (LEFT)
-
2337571-19B01 ...LEVER, CHOKE...LEVER, CHOKE
-
2437576-19B01 ...COVER, CHOKE...COVER, CHOKE
-
2502112-05407 ...SCREW...SCREW
-
2602112-05457 ...SCREW...SCREW
