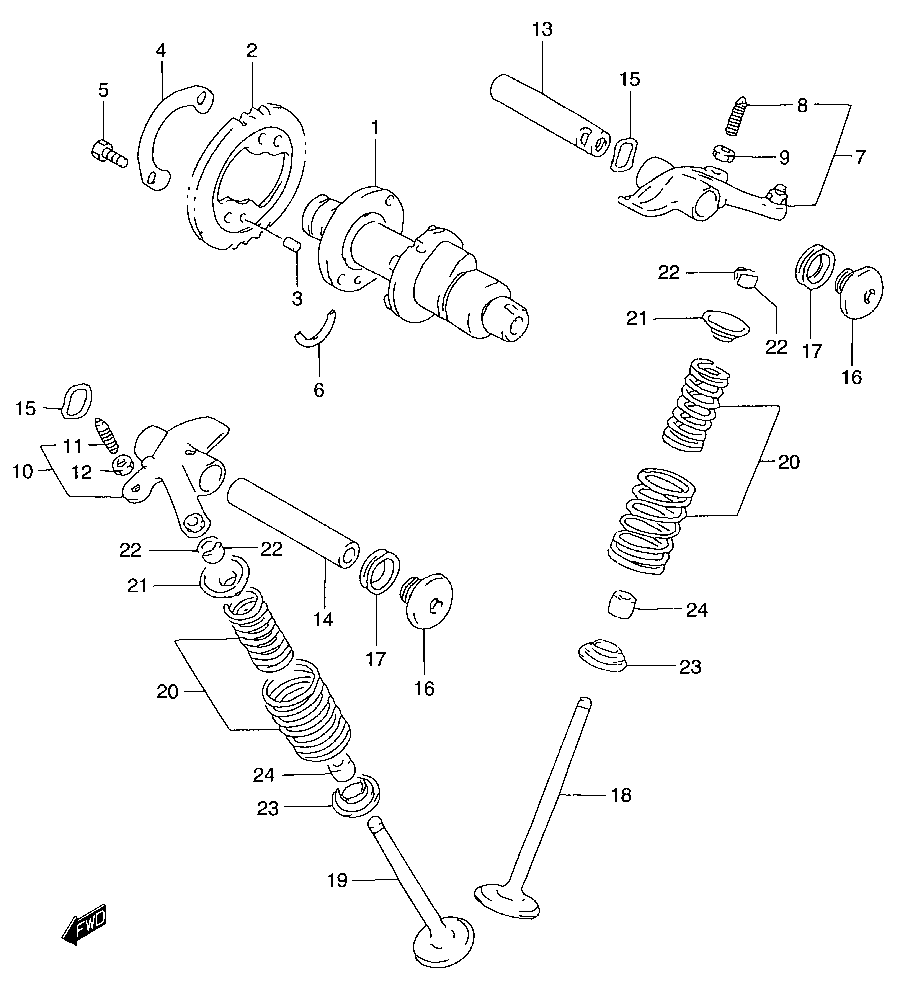

CAM SHAFT - W/ VALVES для Suzuki LT-A500FY 4X4 - 2000 года выпуска`
-
№АртикулНазвание
-
112710-44D01 CAM SHAFTCAM SHAFT
-
212741-09F00 SPROCKETSPROCKET
-
309261-05005 PINPIN
-
412747-44B00 WASHERWASHER
-
509111-06032 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C-RINGC-RING
-
7-112840-14D50 ARM, VALVE ROCKER (INNER)ARM, VALVE ROCKER (INNER)
-
812842-17C50 ...SCREW...SCREW
-
912843-27A00 ...NUT...NUT
-
1012850-14D50 ARM, VALVE ROCKER (EXTERNAL)ARM, VALVE ROCKER (EXTERNAL)
-
1112842-17C50 ...SCREW...SCREW
-
1212843-27A00 ...NUT...NUT
-
1312861-14D50 SHAFT, ROCKER ARM (INNER)SHAFT, ROCKER ARM (INNER)
-
1412871-14D50 SHAFT, ROCKER ARM (EXTERNAL)SHAFT, ROCKER ARM (EXTERNAL)
-
1509164-12018 WASHER (12.7X18.1X0.2)WASHER (12.7X18.1X0.2)
-
1609248-14005 PLUG, SHAFTPLUG, SHAFT
-
1709168-14002 GASKETGASKET
-
1812911-14D01 VALVE, INTAKEVALVE, INTAKE
-
1912912-14D01 VALVE, EXHAUSTVALVE, EXHAUST
-
2012920-06B00 SPRING SET, VALVESPRING SET, VALVE
-
2112931-27A01 RETAINER, SPRINGRETAINER, SPRING
-
2212932-27A00 COTTER, VALVECOTTER, VALVE
-
2312933-81400 SEAT, SPRINGSEAT, SPRING
-
2409289-05011 OIL SEAL (5X10X8.7)OIL SEAL (5X10X8.7)
