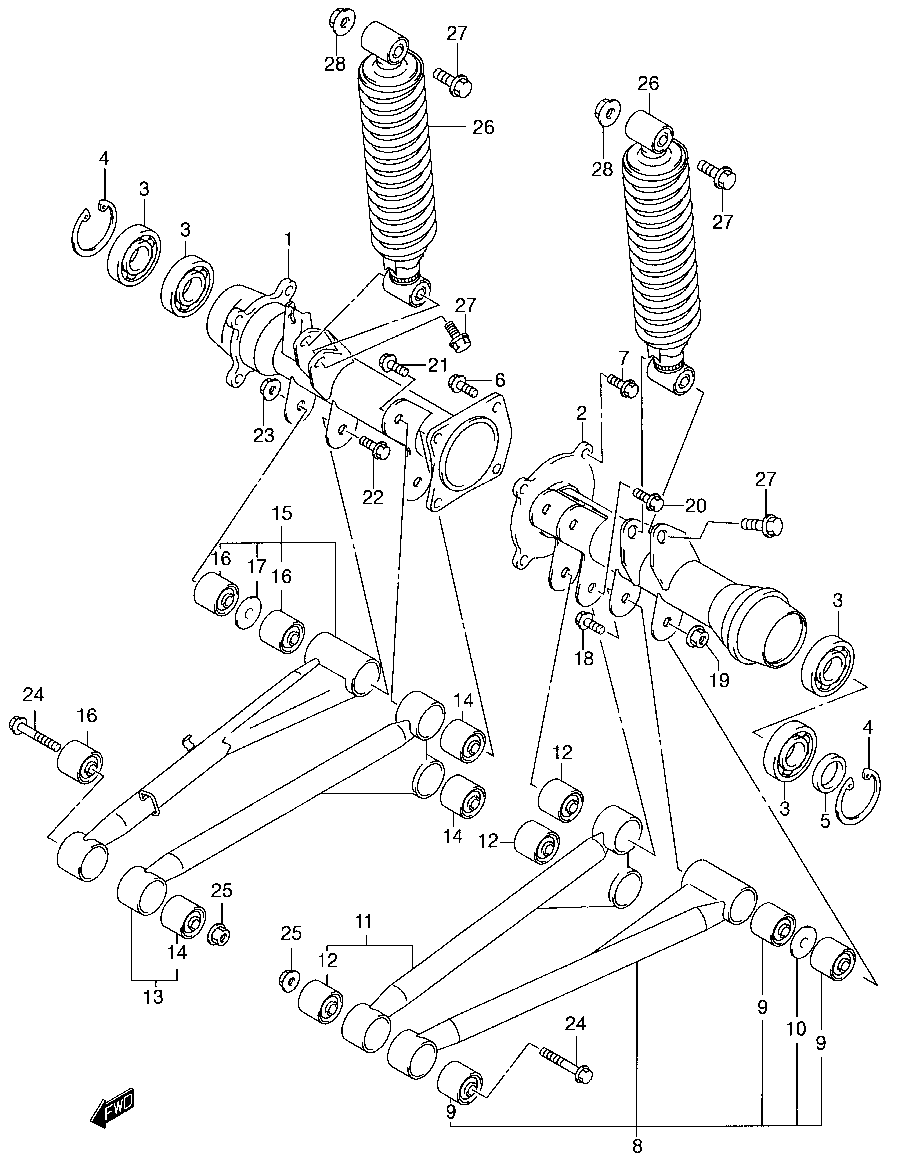

AXLE HOUSING W/ SHOCKS - REAR для Suzuki LT-A500FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
161100-09F10 HOUSING, AXLE (RIGHT) (REAR)HOUSING, AXLE (RIGHT) (REAR)
-
261200-09F10 HOUSING, AXLE (LEFT) (REAR)HOUSING, AXLE (LEFT) (REAR)
-
308123-60067 BEARINGBEARING
-
408331-41556 CIRCLIPCIRCLIP
-
509283-38013 SEAL, OIL (LEFT) (38X55X6.4)SEAL, OIL (LEFT) (38X55X6.4)
-
601550-10303 BOLT (REAR) (RIGHT) (10X30)BOLT (REAR) (RIGHT) (10X30)
-
701550-10403 BOLT (REAR) (LEFT) (10X40)BOLT (REAR) (LEFT) (10X40)
-
862640-09831 ARM SET (REAR) (LEFT) (OUTER)ARM SET (REAR) (LEFT) (OUTER)
-
961240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1062649-09F00 ...SPACER, BUSH (10.5X34.6X5)...SPACER, BUSH (10.5X34.6X5)
-
1162640-09841 ARM SET (REAR) (LEFT) (INNER)ARM SET (REAR) (LEFT) (INNER)
-
1261240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1362640-09851 ARM SET (REAR) (RIGHT) (INNER)ARM SET (REAR) (RIGHT) (INNER)
-
1461240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1562640-09861 ARM SET (REAR) (RIGHT) (OUTER)ARM SET (REAR) (RIGHT) (OUTER)
-
1661240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1762649-09F00 ...SPACER, BUSH (10.5X34.6X5)...SPACER, BUSH (10.5X34.6X5)
-
1809103-10110 BOLT (10X100) (LEFT) (OUTER)BOLT (10X100) (LEFT) (OUTER)
-
1909159-10058 NUTNUT
-
2009103-10040 BOLT (LEFT) (INNER) (10X54)BOLT (LEFT) (INNER) (10X54)
-
2109103-10316 BOLT (RIGHT) (INNER) (10X65)BOLT (RIGHT) (INNER) (10X65)
-
2209103-10110 BOLT (RIGHT) (OUTER) (10X100)BOLT (RIGHT) (OUTER) (10X100)
-
2309159-10058 NUTNUT
-
2409103-10317 BOLT, PIVOT (10X101.5)BOLT, PIVOT (10X101.5)
-
2509159-10058 NUTNUT
-
2662100-09F10-019 ABSORBER ASSY., SHOCK (REAR) (BLACK)ABSORBER ASSY., SHOCK (REAR) (BLACK)
-
2709103-10126 BOLT (10X48)BOLT (10X48)
-
2809159-10058 NUTNUT
