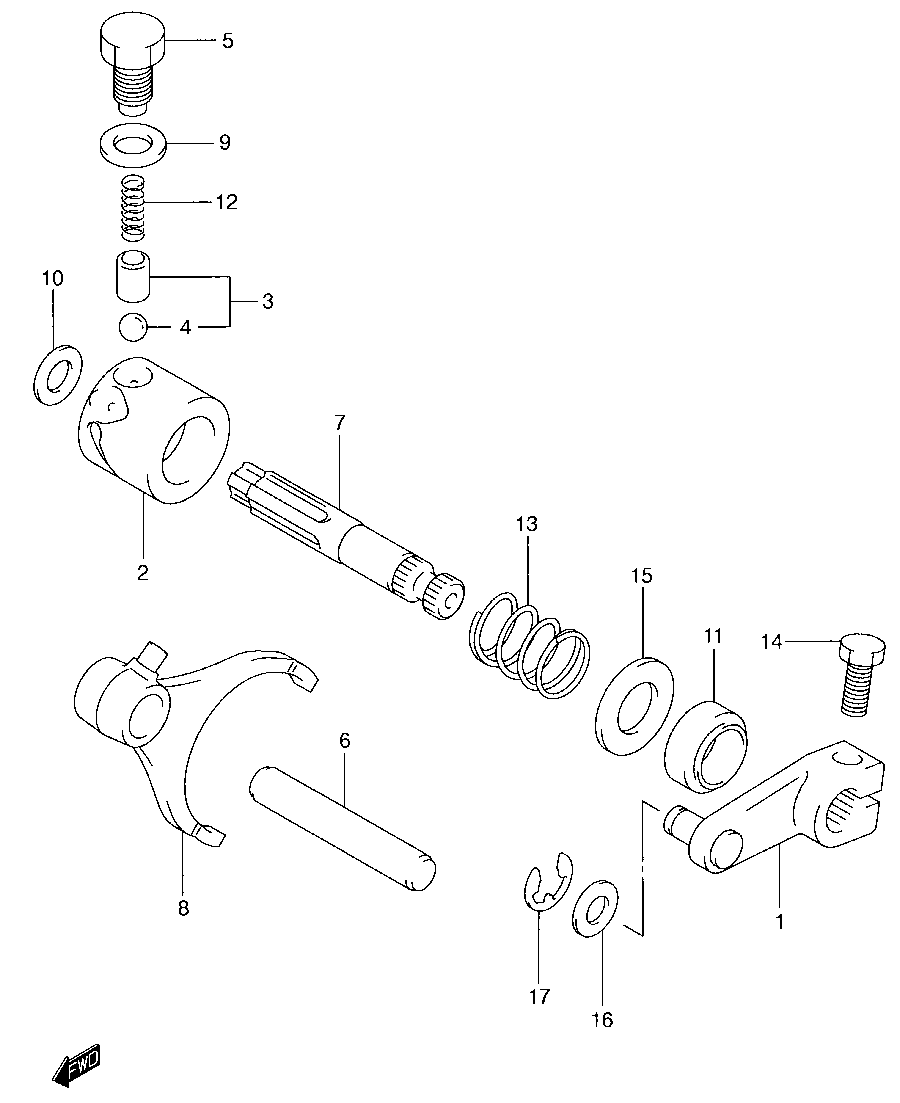

GEAR SHIFTING (2) для Suzuki LT-A500FY 4X4 - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    25360-09F50 ARM, SELECT
    ARM, SELECT
  • 2
    27911-19B01 CAM, SELECT
    CAM, SELECT
  • 3
    25351-39300 STOPPER, SELECT CAM
    STOPPER, SELECT CAM
  • 4
    06111-09004 ...BALL, STEAL
    ...BALL, STEAL
  • 5
    25352-11010 HOUSING, CAM STOPPER
    HOUSING, CAM STOPPER
  • 6
    25421-14301 SHAFT, SELECT SHIFT FORK
    SHAFT, SELECT SHIFT FORK
  • 7
    27921-19B01 SHAFT, SELECT CAM
    SHAFT, SELECT CAM
  • 8
    27941-19B00 FORK, SELECT SHIFT
    FORK, SELECT SHIFT
  • 9
    09168-14002 GASKET, CAM STOPPER (13.8X18.8X0.4)
    GASKET, CAM STOPPER (13.8X18.8X0.4)
  • 10
    09181-10167 WASHER, SELECT CAM (RIGHT) (10X18X1.0)
    WASHER, SELECT CAM (RIGHT) (10X18X1.0)
  • 11
    09285-12006 SEAL, SELECT CAM OIL (12X22X9.0)
    SEAL, SELECT CAM OIL (12X22X9.0)
  • 12
    09440-05035 SPRING, CAM STOPPER
    SPRING, CAM STOPPER
  • 13
    09440-17008 SPRING, SELECT CAM
    SPRING, SELECT CAM
  • 14
    01500-06203 BOLT, LOCKING ARM
    BOLT, LOCKING ARM
  • 15
    08211-12241 WASHER, SELECT CAM (LEFT)
    WASHER, SELECT CAM (LEFT)
  • 16
    08322-01083 WASHER, SELECT ARM
    WASHER, SELECT ARM
  • 17
    08332-11063 E-RING, SELECT ARM
    E-RING, SELECT ARM
