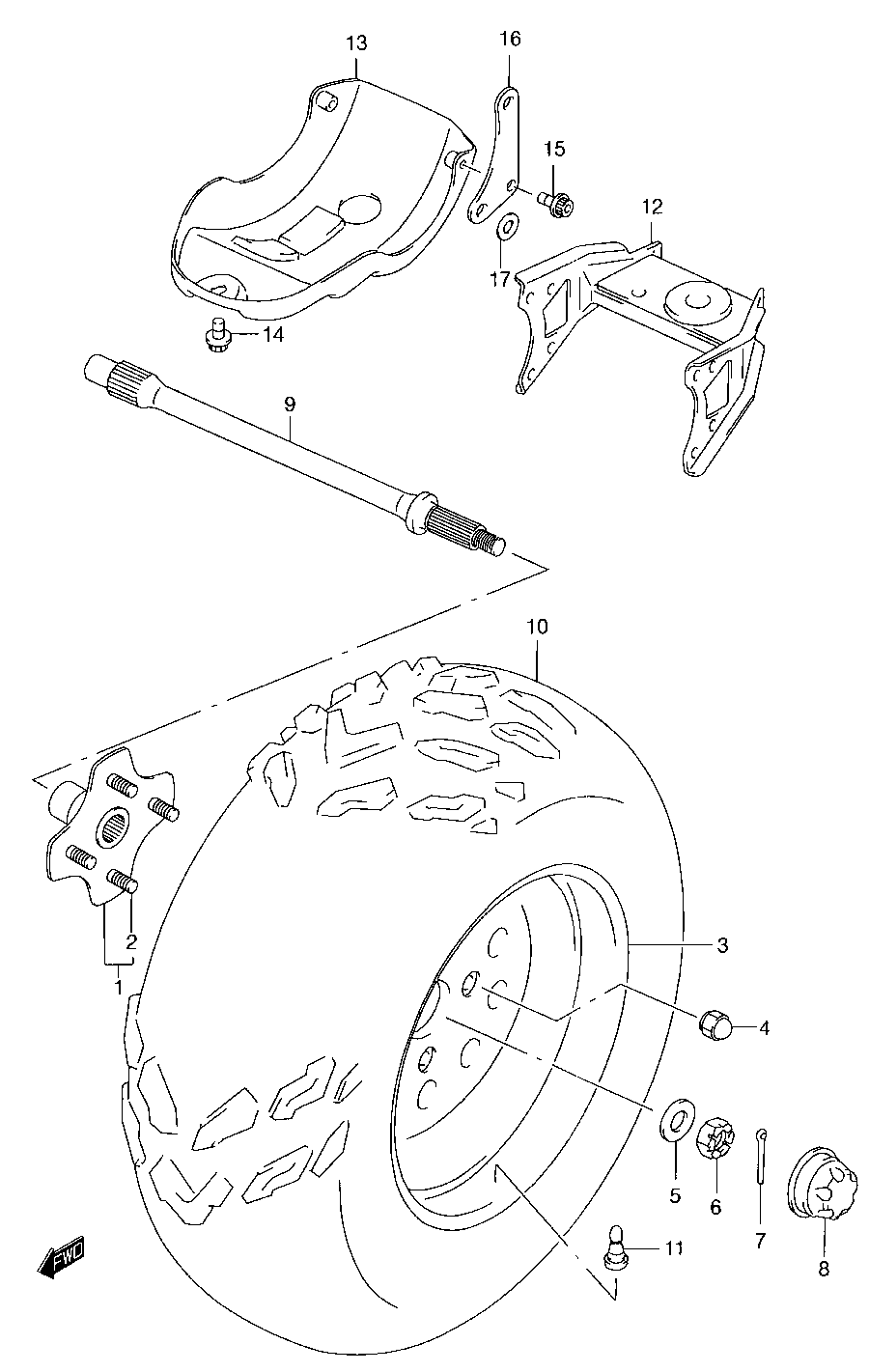

WHEEL - LEFT REAR W/ AXLE для Suzuki LT-A500FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
164110-09F20 HUB, WHEEL (LEFT) (REAR)HUB, WHEEL (LEFT) (REAR)
-
209119-10049 ...BOLT (10X30)...BOLT (10X30)
-
365310-09F01-12Z RIM, WHEEL (12X8.0AT) (REAR) (SILVER)RIM, WHEEL (12X8.0AT) (REAR) (SILVER)
-
409159-10012 NUTNUT
-
509164-18004 WASHERWASHER
-
609141-18008 NUT, HUBNUT, HUB
-
704111-40408 COTTER PINCOTTER PIN
-
854725-09F00 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
964712-09F00 AXLE (REAR) (LEFT)AXLE (REAR) (LEFT)
-
1065110-09F00 TIRE (REAR) (AT25X10-12) (DUNLOP)TIRE (REAR) (AT25X10-12) (DUNLOP)
-
1143130-24A00 VALVE ASSY., WHEEL RIM,TR412VALVE ASSY., WHEEL RIM,TR412
-
1295210-09F00 PLATE, TRAILER TOW (OPT)PLATE, TRAILER TOW (OPT)
-
1361390-09F20 PROTECTOR, FINAL CASEPROTECTOR, FINAL CASE
-
1407120-08123 BOLT (FRONT)BOLT (FRONT)
-
1507120-08253 BOLT (REAR)BOLT (REAR)
-
1661398-09F00 PLATE, CASE PROTECTORPLATE, CASE PROTECTOR
-
1709160-10119 WASHER (10.5X22X1.6)WASHER (10.5X22X1.6)
