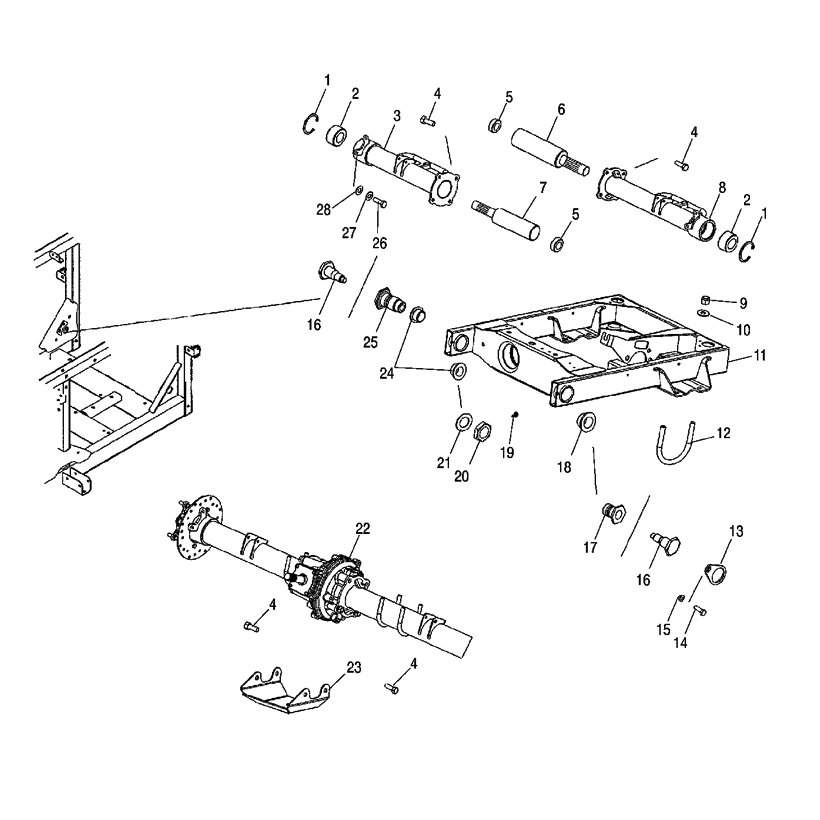

SUSPENSION - SWING ARM W/ REAR SHOCK ASSY для Polaris RANGER 700 EFI 6X6 C.RED [R08RF68AD] - 2008 года выпуска`
-
№АртикулНазвание
-
17710440 RING,RETAININGRING,RETAINING
-
23585502 BEARINGBEARING
-
31015217-067 WELD-AXLE TUBE, RIGHT HAND,RANGER, BLACKWELD-AXLE TUBE, RIGHT HAND,RANGER, BLACK
-
47517585 BOLT-1/2-13X1 1/4 HXHD GR5-ZBOLT-1/2-13X1 1/4 HXHD GR5-Z
-
55410772 O-RINGO-RING
-
61380213 ASM-DRIVESHAFT,AXLE, LEFT HANDASM-DRIVESHAFT,AXLE, LEFT HAND
-
71380214 ASM-DRIVESHAFT,AXLE, RIGHT HANDASM-DRIVESHAFT,AXLE, RIGHT HAND
-
81015216-067 WELD-AXLE TUBE, LEFT HAND,RANGER, BLACKWELD-AXLE TUBE, LEFT HAND,RANGER, BLACK
-
97542525 NUT, NYLOKNUT, NYLOK
-
107555984 WASHER,FLATWASHER,FLAT
-
111014992-067 WELD-SWING ARM, BLACKWELD-SWING ARM, BLACK
-
125245127 U-BOLT,RNDBND,7/16X3.62X3.12X1U-BOLT,RNDBND,7/16X3.62X3.12X1
-
135246229 BOLT SWINGARM KITBOLT SWINGARM KIT
-
147512490 SCREWSCREW
-
157547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
165131697 BOLT,SWINGARM PIVOTBOLT,SWINGARM PIVOT
-
175133166 BUSHING-PIVOT, LEFT HANDBUSHING-PIVOT, LEFT HAND
-
185434545 BUSHING-LEFT HAND,HYBRID, BLACKBUSHING-LEFT HAND,HYBRID, BLACK
-
197080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
207547082 NUT,HEX,JAMNUT,HEX,JAM
-
217556035 WASHER,FLATWASHER,FLAT
-
235245665-067 PLATE-DIFFERENTIAL,SKID, BLACKPLATE-DIFFERENTIAL,SKID, BLACK
-
245434546 BUSHING-RIGHT HAND,HYBRID, BLACKBUSHING-RIGHT HAND,HYBRID, BLACK
-
255133167 BUSHING-PIVOT, RIGHT HANDBUSHING-PIVOT, RIGHT HAND
-
267517445 SCREW (REAR CALIPER ATTACH)SCREW (REAR CALIPER ATTACH)
-
277552901 WASHER,SPRING LOCK (REAR CALIPER ATTACH)WASHER,SPRING LOCK (REAR CALIPER ATTACH)
-
287558402 WASHER,FLAT (REAR CALIPER ATTACH)WASHER,FLAT (REAR CALIPER ATTACH)
