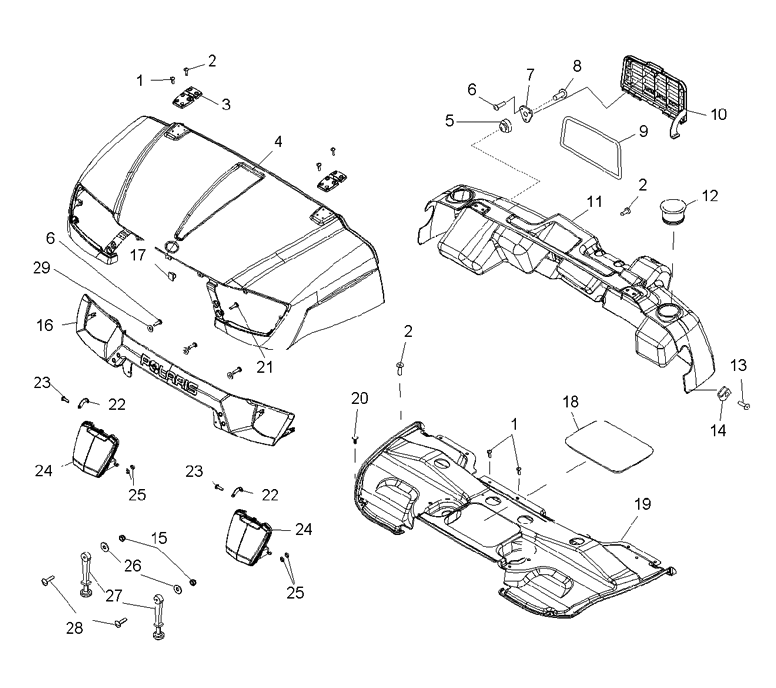

HOOD AND DASHBOARD для Polaris RANGER 700 EFI 6X6 C.RED [R08RF68AD] - 2008 года выпуска
-
№АртикулНазвание
-
17518158 SCREWSCREW
-
27517685 SCREWSCREW
-
35434057 HINGE,ASM.HINGE,ASM.
-
45435703-515 HOOD-CRIMSON REDHOOD-CRIMSON RED
-
55412504 GROMMET-RUBBER,MOUNT,25''GROMMET-RUBBER,MOUNT,25''
-
67512026 SCREWSCREW
-
75910119 PLATE-CATCHPLATE-CATCH
-
85246693 PIN-CATCHPIN-CATCH
-
95521667 SEAL-GLOVEBOXSEAL-GLOVEBOX
-
105434719-515 COVER-GLOVEBOX,CRIMSONCOVER-GLOVEBOX,CRIMSON
-
115437141-515 DASH-RANGER,CRIMSON REDDASH-RANGER,CRIMSON RED
-
125434763 HOLDER-CUPHOLDER-CUP
-
137517561 SCREWSCREW
-
147670157 NUT-#10,U-TYPE,AB(.025.150)NUT-#10,U-TYPE,AB(.025.150)
-
157542122 NUT-NYLOKNUT-NYLOK
-
165435728-070 GRILLE-HOOD, BLACKGRILLE-HOOD, BLACK
-
177670134 CLIP-WIRE,ADHESIVE BACK,1/2''CLIP-WIRE,ADHESIVE BACK,1/2''
-
185413002 PLUG-DRAIN, BOXPLUG-DRAIN, BOX
-
195437106 LINER-HOODLINER-HOOD
-
207670090 CLIP,PLASTIC DART,NYLONCLIP,PLASTIC DART,NYLON
-
217518238 SCR-10X5/8-HI/LO,PN-T25,TRX-MSCR-10X5/8-HI/LO,PN-T25,TRX-M
-
225248655 BRKT-HEADLIGHTBRKT-HEADLIGHT
-
237518831 SCR-10X1/2-HI/LO,PN-T25,TRX-MSCR-10X1/2-HI/LO,PN-T25,TRX-M
-
242411010 ASM-HEADLIGHT,UTILITY,50 WATTASM-HEADLIGHT,UTILITY,50 WATT
-
244010253 BULB-HEADLIGHT,50 WATTBULB-HEADLIGHT,50 WATT
-
255410163 O RINGO RING
-
267555859 WASHER, FLATWASHER, FLAT
-
275410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
287517230 SCREWSCREW
-
297558201 WASHER, FLATWASHER, FLAT
