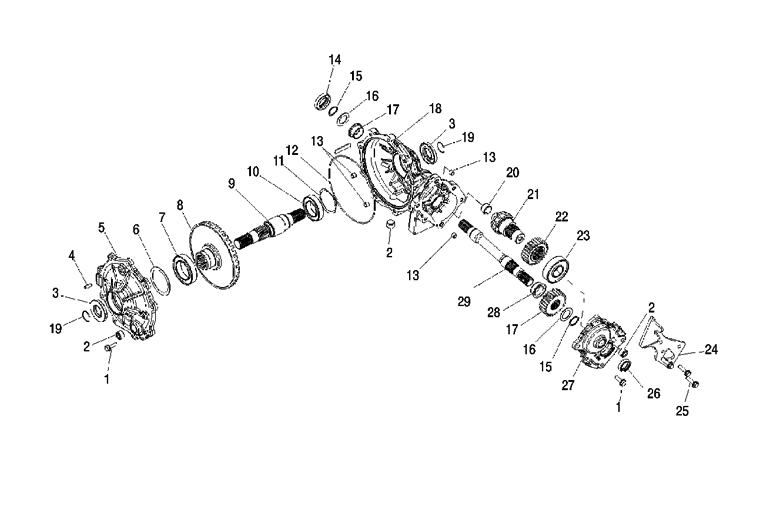

MID GEARCASE для Polaris RANGER 700 EFI 6X6 C.RED [R08RF68AD] - 2008 года выпуска

  • №
    Артикул
    Название
  • -
    1332389 ASM-GEARCASE,MID
    ASM-GEARCASE,MID
  • 1
    3233252 SCREW
    SCREW
  • 2
    3233805 PLUG-DRAIN
    PLUG-DRAIN
  • 3
    3233803 SEAL
    SEAL
  • 4
    3233524 TUBE,VENT
    TUBE,VENT
  • 5
    3233982 COVER-OUTPUT MACH
    COVER-OUTPUT MACH
  • 6
    3233581 SHIM 3.1 X 2.5
    SHIM 3.1 X 2.5
  • 7
    3233268 BEARING, BALL
    BEARING, BALL
  • 8
    3233985 GEAR-RING 37T MACH
    GEAR-RING 37T MACH
  • 9
    3234303 OUTPUT SHAFT
    OUTPUT SHAFT
  • 10
    3233806 BEARING-BALL
    BEARING-BALL
  • 11
    3233987 SPRING-WAVE
    SPRING-WAVE
  • 12
    3233988 O-RING,-168
    O-RING,-168
  • 13
    3233529 PIPE,KNOCK
    PIPE,KNOCK
  • 14
    3233788 SEAL-TRIPLE LIP
    SEAL-TRIPLE LIP
  • 15
    3233306 RING,RETAINING
    RING,RETAINING
  • 16
    3234050 THRUST WASHER-1.007X1.542X.063
    THRUST WASHER-1.007X1.542X.063
  • 17
    3233989 BUSHING-GARLOCK FMB3016DU
    BUSHING-GARLOCK FMB3016DU
  • 18
    3233983 GEARCASE-RII MID MACH
    GEARCASE-RII MID MACH
  • 19
    1332446 RING-SPRING
    RING-SPRING
  • 20
    3233292 BUSHING
    BUSHING
  • 21
    3233990 PINION-10T,MACH
    PINION-10T,MACH
  • 22
    3233991 GEAR-26T OUTPUT
    GEAR-26T OUTPUT
  • 23
    3233589 BEARING,BALL
    BEARING,BALL
  • 24
    5249729 BRKT-PARK BRAKE MOUNT
    BRKT-PARK BRAKE MOUNT
  • 25
    3234374 SCREW
    SCREW
  • 26
    3233785 SEAL-TRIPLE LIP
    SEAL-TRIPLE LIP
  • 27
    3233984 COVER-INPUT MACH
    COVER-INPUT MACH
  • 28
    3233993 GEAR-26T INPUT
    GEAR-26T INPUT
  • 29
    3233992 SHAFT-OUTPUT THRU
    SHAFT-OUTPUT THRU
