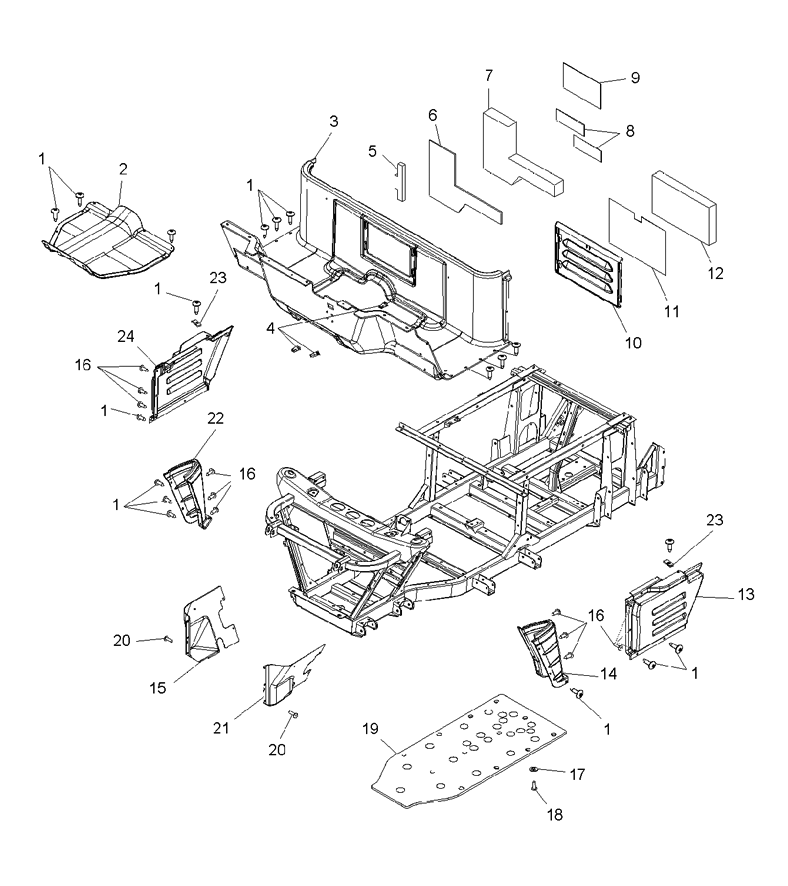

FLOOR AND FENDERS для Polaris RANGER 700 EFI 6X6 C.RED [R08RF68AD] - 2008 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
25436402 COVER-DRIVE SHAFT,FLOORCOVER-DRIVE SHAFT,FLOOR
-
32633436 FLOOR-MAIN,RANGER BLACK (INCLUDES 6)FLOOR-MAIN,RANGER BLACK (INCLUDES 6)
-
47670145 NUT-1/4-20,U-TYPE(1.56-.190)NUT-1/4-20,U-TYPE(1.56-.190)
-
55812954 FOAM-FOIL,FLOORFOAM-FOIL,FLOOR
-
65812695 FOIL-HEAT SHIELD,FLOORFOIL-HEAT SHIELD,FLOOR
-
75812842 FOAM-FOIL,FLOORFOAM-FOIL,FLOOR
-
85812955 FOIL_FLOOR, HORIZONTALFOIL_FLOOR, HORIZONTAL
-
95812956 FOIL_FLOOR, VERTICALFOIL_FLOOR, VERTICAL
-
102632972 FLOOR ASM,DOG HOUSE COVER (INCLUDES 11)FLOOR ASM,DOG HOUSE COVER (INCLUDES 11)
-
115812694 FOIL-HEAT SHIELDFOIL-HEAT SHIELD
-
125812841 FOAM-FOIL, ACCESS PANELFOAM-FOIL, ACCESS PANEL
-
135435929-070 FENDER-REAR,6X6, LEFT HAND, BLACKFENDER-REAR,6X6, LEFT HAND, BLACK
-
145435886-070 FENDER-FRONT, LEFT HAND, BLACKFENDER-FRONT, LEFT HAND, BLACK
-
155436535 PANEL-WHEEL WELL, RIGHT HANDPANEL-WHEEL WELL, RIGHT HAND
-
167518158 SCREWSCREW
-
177556065 WASHER-WASHER-
-
187517386 SCREWSCREW
-
195812909 PLATE-SKID,6X6PLATE-SKID,6X6
-
207512084 SCREWSCREW
-
215436534 PANEL-WHEEL WELL, LEFT HANDPANEL-WHEEL WELL, LEFT HAND
-
225435887-070 FENDER-FRONT, RIGHT HAND, BLACKFENDER-FRONT, RIGHT HAND, BLACK
-
237670057 NUT, SPEEDNUT, SPEED
-
245435930-070 FENDER-REAR,6X6, RIGHT HAND, BLACKFENDER-REAR,6X6, RIGHT HAND, BLACK
