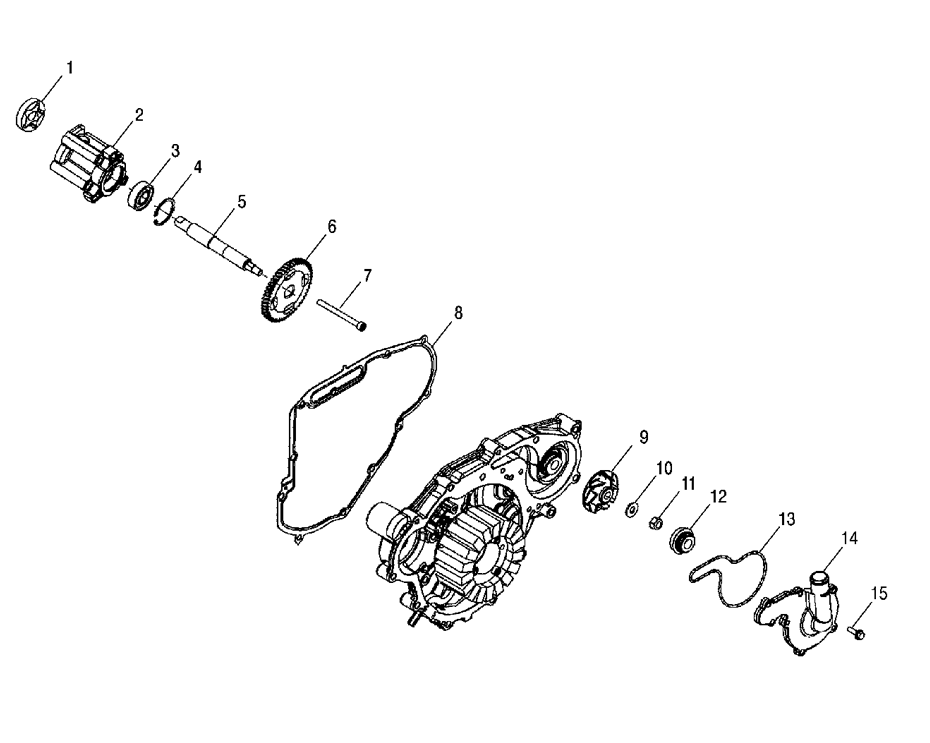

OIL PUMP AND WATER PUMP для Polaris RANGER 6X6 EFI 700 [R06RF68AA] - 2006 года выпуска

  • №
    Артикул
    Название
  • -
    2202699 KIT-OIL PUMP ATV [INCL. 1-6]
    KIT-OIL PUMP ATV [INCL. 1-6]
  • 1
    1202588 ASM-GEROTOR 8.5MM
    ASM-GEROTOR 8.5MM
  • 2
    5135094 HOUSING-OIL PUMP 8.5 VLM
    HOUSING-OIL PUMP 8.5 VLM
  • 3
    3584404 BEARING,BALL,15X35X11
    BEARING,BALL,15X35X11
  • 4
    7710531 RING-RETAINING,1.281X.130
    RING-RETAINING,1.281X.130
  • 5
    5135093 SHAFT-OIL/WATER PUMP
    SHAFT-OIL/WATER PUMP
  • 7
    7517807 SCR-M6X1.0X70MM SOC/CAP-Y/D
    SCR-M6X1.0X70MM SOC/CAP-Y/D
  • 8
    5812936 GASKET-COVER,MAG DOUBLE BEAD
    GASKET-COVER,MAG DOUBLE BEAD
  • 9
    5433684 IMPELLER-WATER PUMP
    IMPELLER-WATER PUMP
  • 10
    7555874 WASHER,FLAT,S.S.
    WASHER,FLAT,S.S.
  • 11
    7546804 NUT,HEX,, NYLOK
    NUT,HEX,, NYLOK
  • 12
    3610075 SEAL-WATERPUMP15X36/40X20,FACE
    SEAL-WATERPUMP15X36/40X20,FACE
  • 13
    5812571 SEAL-COVER,WATERPUMP
    SEAL-COVER,WATERPUMP
  • 14
    5631389 KIT-WATER PUMP COVER
    KIT-WATER PUMP COVER
  • 15
    7516822 SCREW
    SCREW
