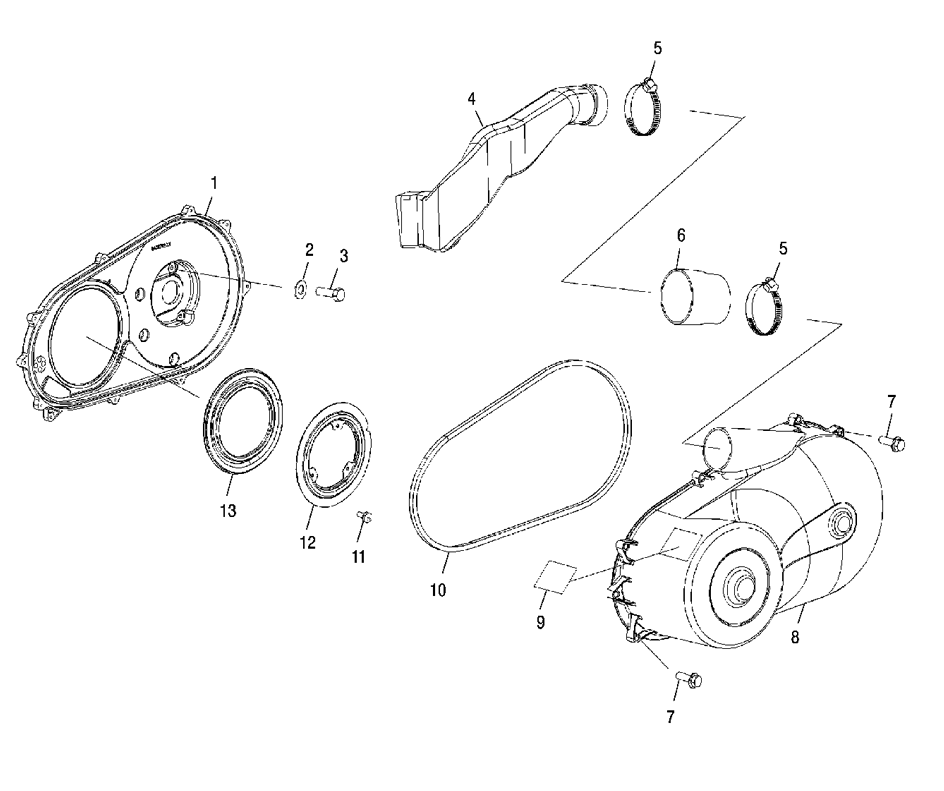

CLUTCH COVER для Polaris RANGER 6X6 EFI 700 [R06RF68AA] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2633120 ASM-CLUTCH COVER,INNER [INCL. 10,13]
    ASM-CLUTCH COVER,INNER [INCL. 10,13]
  • 2
    7555748 WASHER
    WASHER
  • 3
    7517312 SCREW
    SCREW
  • 4
    5436194 DUCT-CLUTCH,AIR OUTLET
    DUCT-CLUTCH,AIR OUTLET
  • 5
    7081279 CLAMP-BAND,NARROW 70-90MM
    CLAMP-BAND,NARROW 70-90MM
  • 6
    5435684 HOSE-CLUTCH,AIR OUTLET
    HOSE-CLUTCH,AIR OUTLET
  • 7
    7512094 SCREW
    SCREW
  • 8
    5433451-070 COVER,CLUTCH-OUTER,HV, BLACK-
    COVER,CLUTCH-OUTER,HV, BLACK-
  • 9
    7172563 DECAL
    DECAL
  • 10
    5521578 SEAL-OUTER CLUTCH COVER
    SEAL-OUTER CLUTCH COVER
  • 11
    7517867 SCREW,M5X0.8X10,PHPN ZY,L/W SEM
    SCREW,M5X0.8X10,PHPN ZY,L/W SEM
  • 12
    5244527-067 BRKT-RETAINER SEAL,PLATED
    BRKT-RETAINER SEAL,PLATED
  • 13
    5411918 SEAL-COVER,CLUTCH,INNER
    SEAL-COVER,CLUTCH,INNER
